1982 Suzuki GS750E Cylinder Head Diagram

← All diagrams

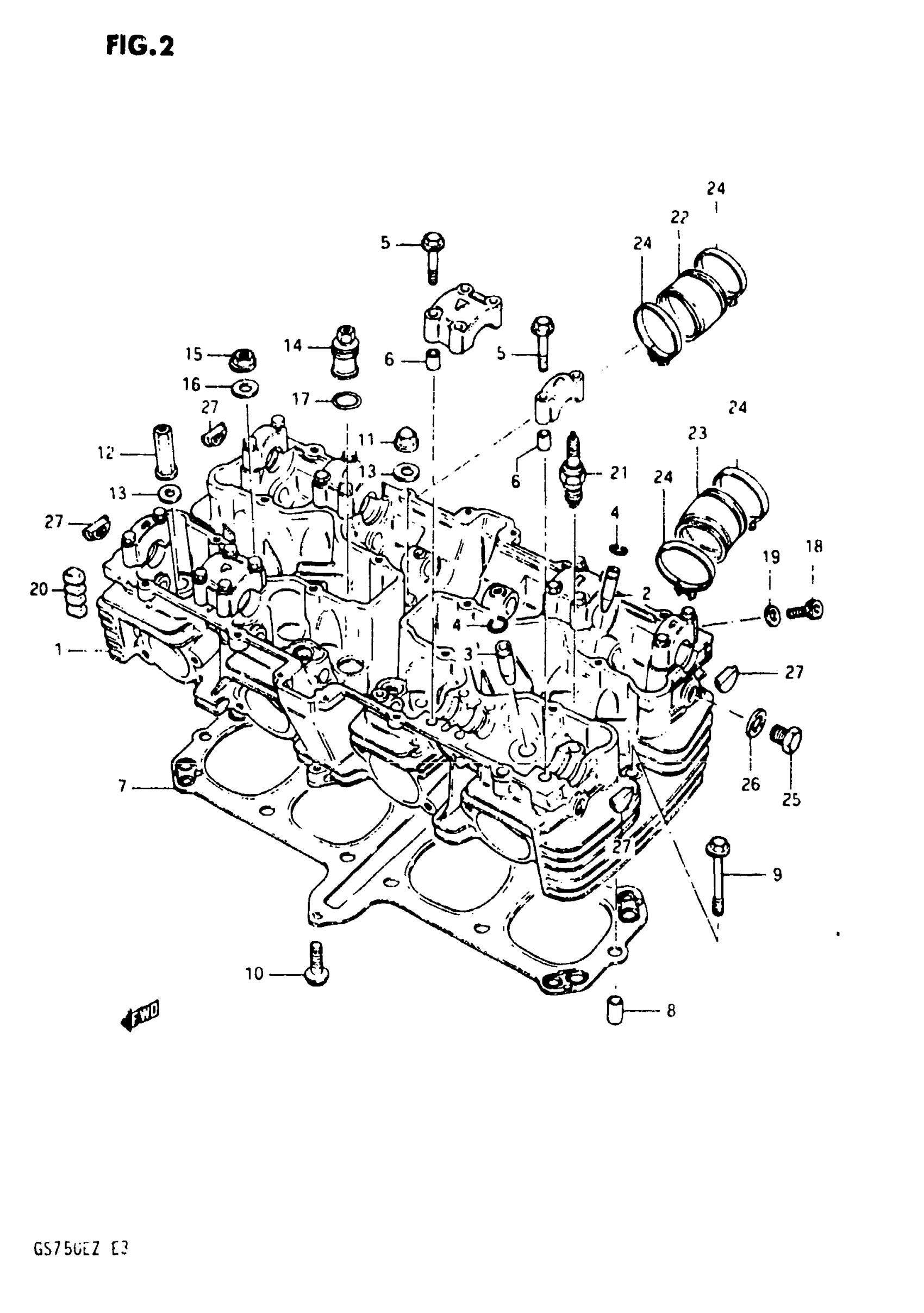

Find the part on the Cylinder Head diagram for your 1982 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS750E Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-45420.

11100-45450

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-49290

8
Out of stock

3

GUIDE, EXHAUST VALVE

11115-49290

8
Out of stock

4

.RING (10X85)

09381-10004

16
Out of stock

5

BOLT (6X39)

09103-06026

24
Out of stock

6

PIN

09206-08001

16
Out of stock

7

GASKET This part replaces 11141-45402.

11141-45410

1
Out of stock

8

PIN

04211-11189

2
Out of stock

9

BOLT This part replaces 01517-06558.

01550-06557

2
Out of stock

10

BOLT This part replaces 01517-06308.

01550-06307

1
Out of stock

11

NUT

09159-10026

2
Out of stock

12

NUT

09159-10029

4
Out of stock

13

GASKET This part replaces 09168-10019.

09168-10017

6
Out of stock

14

SEAL NUT

11145-49200

2
Out of stock

15

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

4
Out of stock

16

WASHER

09160-10039

4
Out of stock

17

O RING

09280-17002

2
Out of stock

18

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

4
Out of stock

19

GASKET

09168-05010

4
Out of stock

20

RUBBER PAD (N9->4) This part replaces 11251-48000.

11251-36500

4
Out of stock

21

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

4
Out of stock

21

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

4
Out of stock

22

2

$20.44

In stock

23

2

$20.44

In stock

24

CLAMP

09402-50306

8
Out of stock

25

4

$3.63

In stock

26

GASKET

09168-14004

4
Out of stock

27

PLUG, CYLINDER HEAD

09241-23002

4
Out of stock
