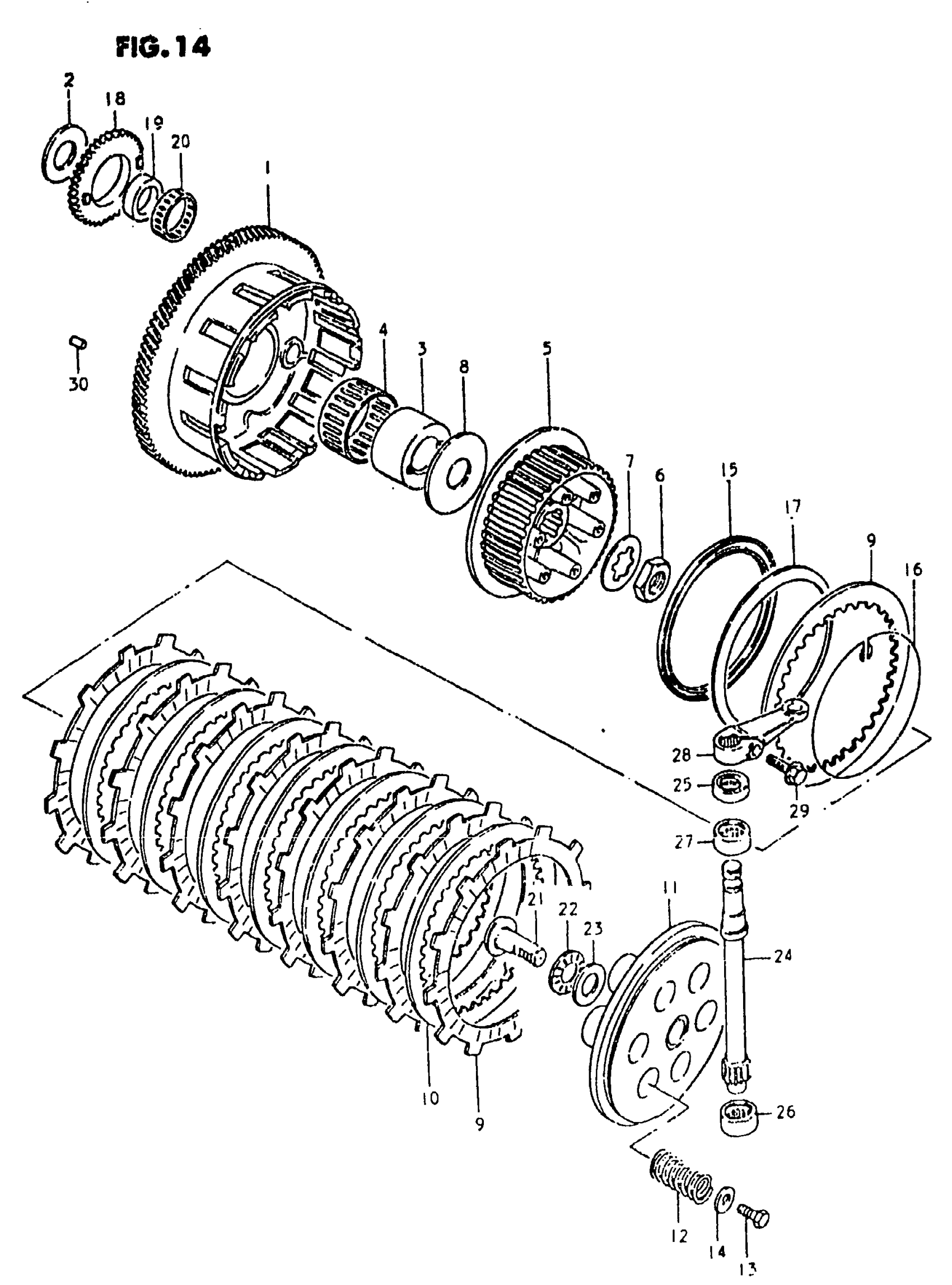

Suzuki GS750E (1981) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:93

21200-45400

Unavailable

2

WASHER This part replaces 09160-25023.

09160-25055

$9.37

3

SPACER This part replaces 21251-45001.

21251-49200

Unavailable

4

BEARING This part replaces 09263-51001.

09263-51002

$48.07

5

HUB, SLEEVE

21411-45100

Unavailable

6

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

$3.56

7

WASHER

09167-25007

Unavailable

8

WASHER

09160-25022

Unavailable

9

PLATE, DRIVE

21441-45100

Unavailable

10

PLATE, DRIVEN

21451-31000

$9.52

11

DISK,CLUTCH PRE | MODEL T This part replaces 21462-45100.

21462-12C00

Unavailable

11

DISK,CLUTCH PRE | MODEL X This part replaces 21462-45101.

21462-12C00

Unavailable

12

SPRING

09440-19007

$2.42

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

SEAT, WAVE WASHER | MODEL T This part replaces 21471-45100.

21471-45101

Unavailable

15

SEAT, WAVE WASHER | MODEL X

21471-45101

Unavailable

16

RING, STOPPER

21481-45100

$5.30

17

WAVE WASHER

09164-00003

$11.60

18

GEAR, OIL PUMP DRIVE | NT:38

16321-45002

Unavailable

19

SPACER

16325-45001

Unavailable

20

BEARING

09263-36002

Unavailable

21

RACK, RELEASE

23165-49000

Unavailable

22

BEARING

09263-15003

$7.49

23

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.52

24

PINION, RELEASE

23261-45400

Unavailable

25

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

26

BEARING

09263-12014

$11.31

27

BEARING

09263-15012

$16.83

28

ARM, RELEASE This part replaces 23271-49001.

23271-45400

Unavailable

29

BOLT This part replaces 01517-06208.

01550-06207

$2.31

30

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

$3.28
