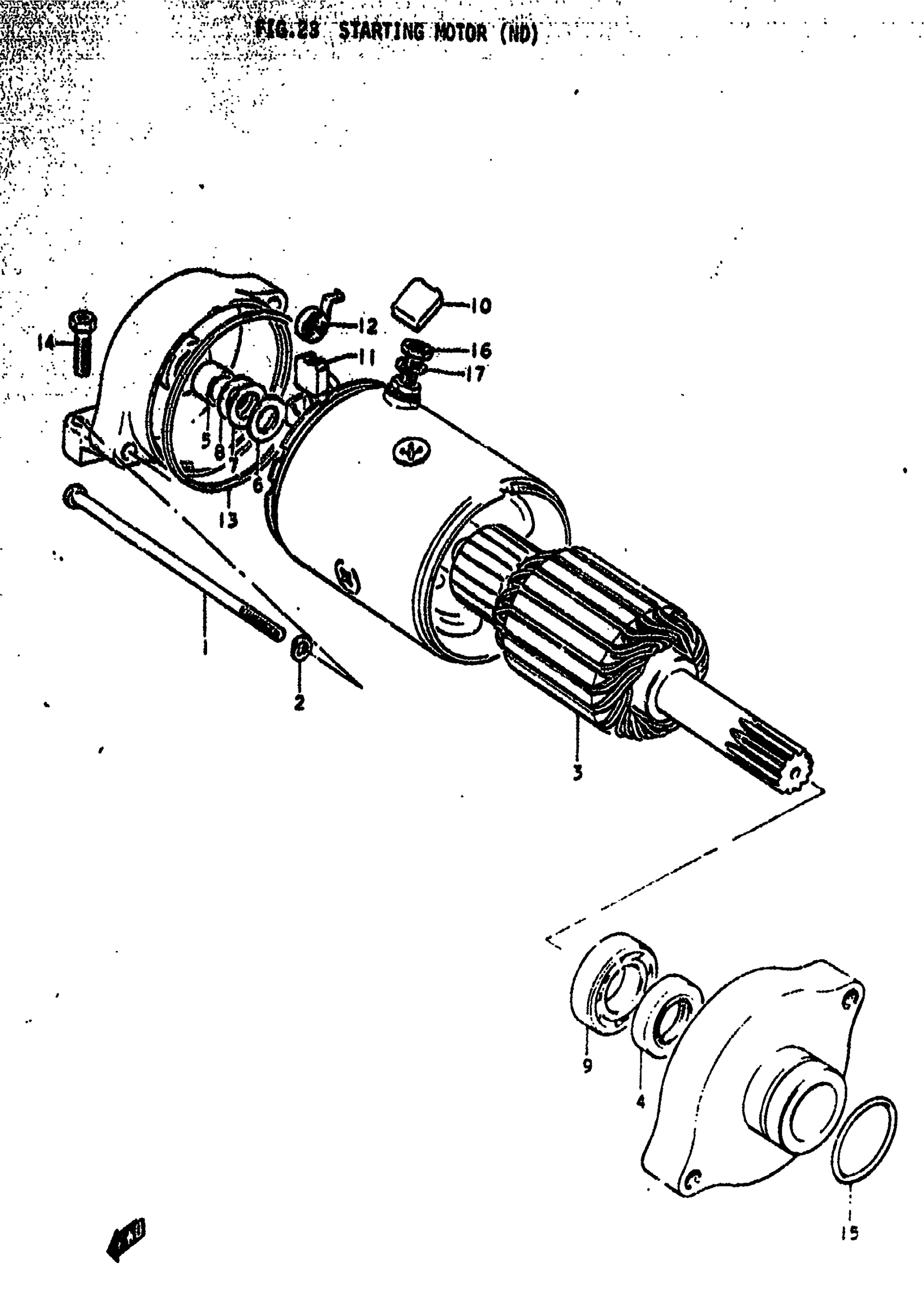

Find the part on the Starting Motor diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS750B Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

MOTOR ASSY, STARTING | B,C&EC,N&EN; ND; Includes Item(s) 1 - 13 This part replaces 31100-45010.

31100-49050

1
Out of stock

1

BOLT | B,C&EC,N&EN This part replaces 31281-31010.

31280-06B00

2
Out of stock

2

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21058.

08321-0105A

2
Out of stock

3

ARMATURE | B,C&EC,N&EN

31311-45010

1
Out of stock

4

OIL SEAL | B,C&EC,N&EN This part replaces 31153-45010.

31153-43400

1
Out of stock

5

BUSHING | B,C&EC,N&EN; FROM 31172-65010

31152-65010

1
Out of stock

6

SHIM, (1) | B,C&EC,N&EN

31361-65010

1
Out of stock

7

SHIM, (2) | (0~1)

31362-51010

1
Out of stock

8

SHIM, (3) | (0~1)

31363-51010

1
Out of stock

9

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN This part replaces 31155-45010.

31155-45C00

1
Out of stock

10

BRUSH, (+) | B,C&EC,N&EN

31131-65011

1
Out of stock

11

BRUSH, (-) | B,C&EC,N&EN

31131-65011

1
Out of stock

12

SPRING | B,C&EC,N&EN

31135-65010

2
Out of stock

13

GASKET | B,C&EC,N&EN

31264-65010

1
Out of stock

14

BOLT, STARTING MOTOR | B,C&EC,N&EN This part replaces 09128-06012.

09103-06212

2
Out of stock

15

.O-RING (D:3,ID:24.5) | B,C&EC,N&EN This part replaces 09280-24001.

09280-24003

1
Out of stock

16

.NUT | B,C&EC,N&EN This part replaces 08310-22068.

08310-00067

1
Out of stock
