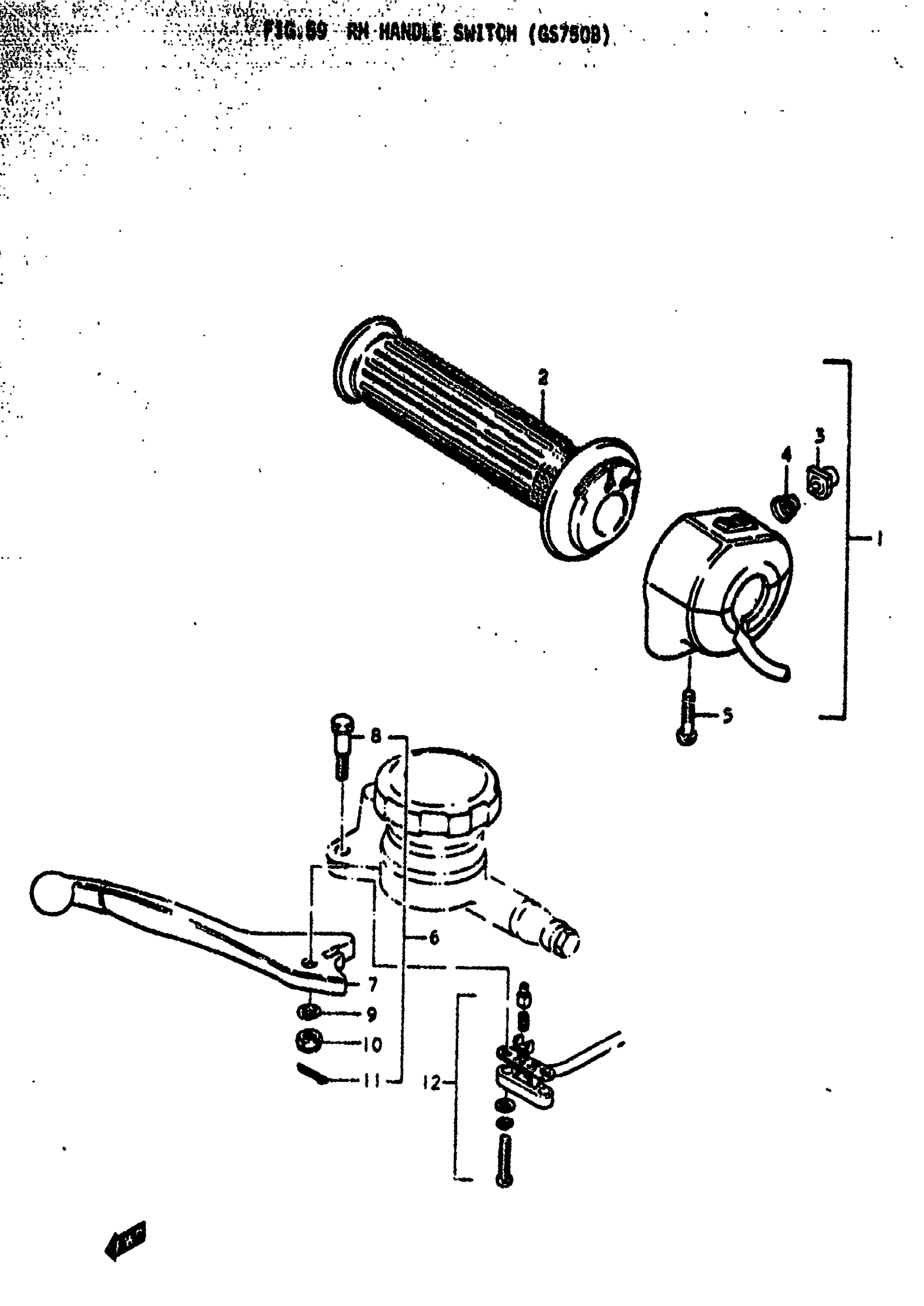

Suzuki GS750B (1979) RH HANDLE SWITCH (GS750B) Diagram

#

Description

Price

1

GRIP ASSY, THROTTLE | Includes Item(s) 2 - 5

57100-45600

Unavailable

2

THROTTLE GRIP This part replaces 57110-45600.

57110-34601

Unavailable

3

BUTTON, STARTING

57370-01311

Unavailable

4

SPRING

57382-01311

Unavailable

5

SCREW This part replaces 02111-05257.

02112-05257

$1.55

6

LEVER ASSY, BRAKE | Includes Item(s) 7 - 11

57300-45010

Unavailable

7

LEVER, BRAKE

57420-45010

Unavailable

8

BOLT This part replaces 57431-18620.

57431-18621

$9.35

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

10

NUT

57433-11010

$5.56

11

PIN This part replaces 04111-16158.

04111-1620A

$0.96

12

SWITCH ASSY, BRAKE LAMP

57460-33700

$42.67
