1979 Suzuki GS750B OIL PAN Diagram

← All diagrams

Find the part on the OIL PAN diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

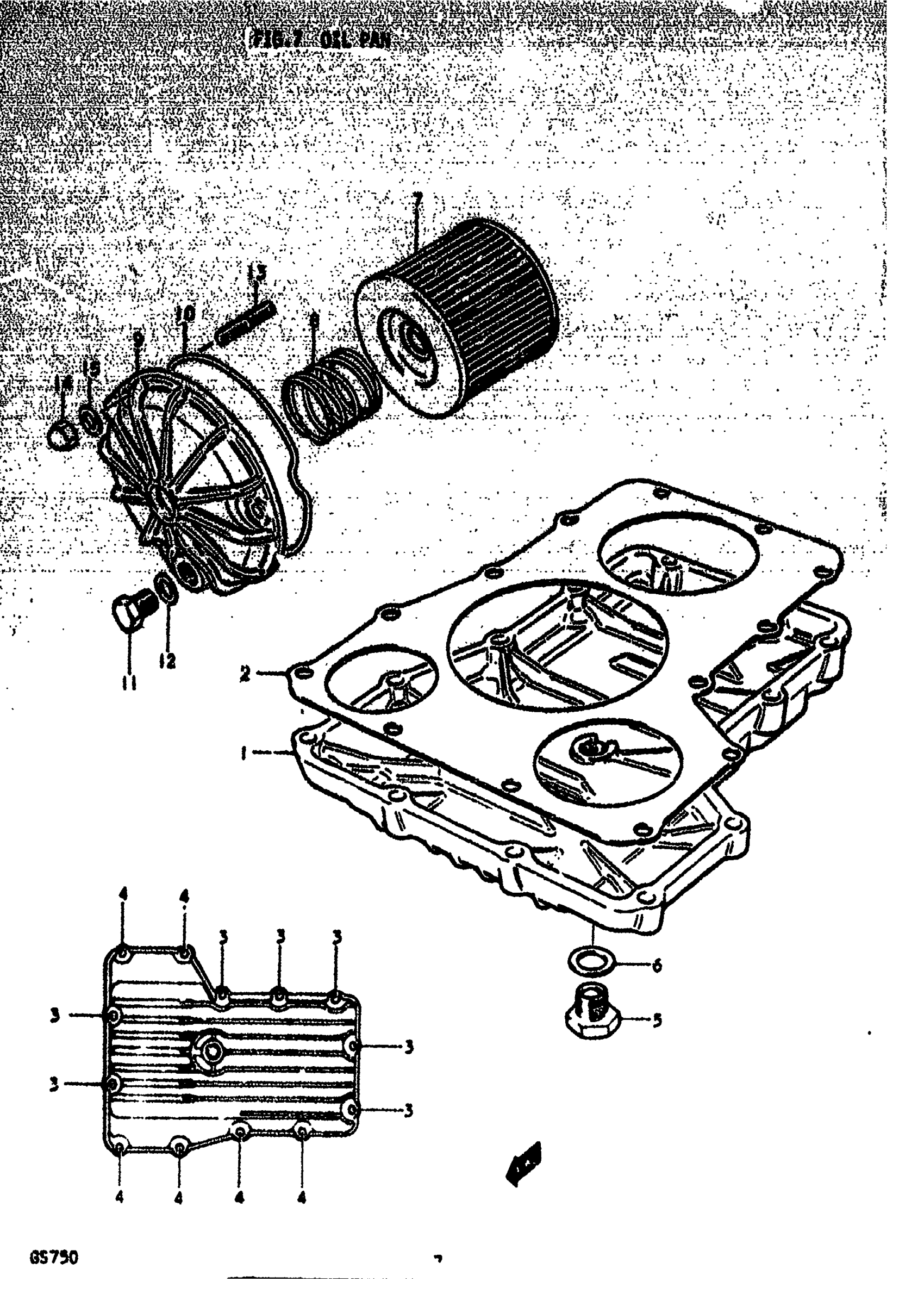

1979 Suzuki GS750B OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAN, OIL | B,C&EC,N&EN

11511-45000

1
Out of stock

2

GASKET,OIL PAN( | B,C&EC This part replaces 11489-45000.

11489-45001-H17

1
Out of stock

2

GASKET,OIL PAN( | N&EN This part replaces 11489-45001.

11489-45001-H17

1
Out of stock

3

BOLT | B,C&EC,N&EN This part replaces 01517-06308.

01550-06307

7
Out of stock

4

BOLT | B,C&EC,N&EN This part replaces 01517-06258.

01550-06257

6
Out of stock

5

PLUG (MAGNETO) | B,C&EC,N&EN This part replaces 09247-14001.

09247-14002

1
Out of stock

6

GASKET | B,C&EC,N&EN

09168-14004

1
Out of stock

7

FILTER, ENGINE OIL | B,C&EC,N&EN

16510-45040

1
Out of stock

8

SPRING | B,C&EC,N&EN

09440-32004

1

$3.22

In stock

9

CAP, ENGINE OIL FILTER | B,C&EC This part replaces 16512-45000.

16512-45101

1
Out of stock

9

CAP, ENGINE OIL FILTER | N&EN; NON DRAIN PLUG HOLE This part replaces 16512-45001.

16512-45101

1
Out of stock

10

O RING | B,C&EC,N&EN

16518-45000

1
Out of stock

11

PLUG, OIL DRAIN | B,C&EC

09247-10001

1
Out of stock

12

GASKET | B,N7EC

09168-10002

1
Out of stock

13

STUD BOLT | B,C&EC,N&EN This part replaces 01421-06208.

01421-0620A

3
Out of stock

14

NUT, LICENSE HOLDER | B,C&EC,N&EN This part replaces 08313-11068.

08313-10067

3
Out of stock

15

WASHER | B,C&EC,N&EN This part replaces 08322-21068.

08322-01067

3
Out of stock
