1979 Suzuki GS750B Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

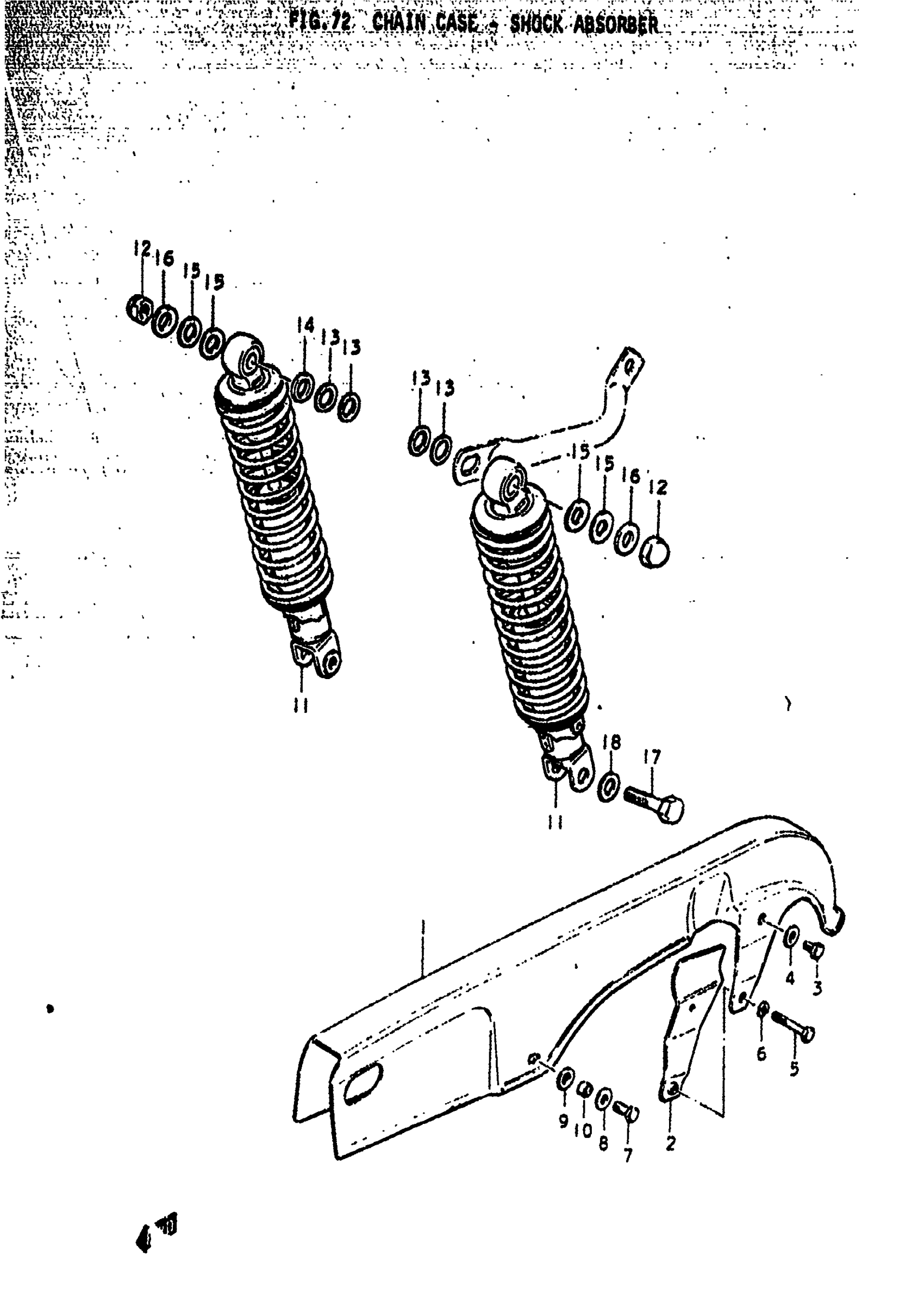

1979 Suzuki GS750B Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | B,C,EC,N&EN This part replaces 61311-45000-019.

61311-45200

1
Out of stock

2

REINFORCEMENT, CHAIN CASE | B,C,EC,N&EN

61381-45000

1
Out of stock

3

BOLT | B,C,EC,N&EN; 6x8

09100-06011

1
Out of stock

4

WASHER | B,C,EC,N&EN

09169-06010

1
Out of stock

5

BOLT | B,C,EC,N&EN; Includes Item(s) 6 This part replaces 01107-06258.

01500-06257

1
Out of stock

7

BOLT | B,C,EC,N&EN This part replaces 01107-06108.

01500-06107

1
Out of stock

8

WASHER (6.5X18X1.0) | B,C,EC,N&EN; 6.5x18x1

09160-06028

1
Out of stock

9

FUEL TANK UPPER WASHER | B,C,EC,N&EN This part replaces 09320-08005.

09161-08006

1
Out of stock

10

SPACER | B,C,EC,N&EN; 6.1x8x5.2 This part replaces 09180-06032.

09180-06246

1
Out of stock

11

ABSORBER ASSY,R | EC This part replaces 62100-45730.

62100-45410

2
Out of stock

11

ABSORBER ASSY,R | B,C This part replaces 62100-45030.

62100-45410

2
Out of stock

11

ABSORBER ASSY,R | N&EN This part replaces 62100-45031.

62100-45410

2
Out of stock

12

NUT | B,C,EC,N&EN This part replaces 08313-11108.

08313-10107

2
Out of stock

13

WASHER | B,C,EC,N&EN This part replaces 08322-11128.

08322-01127

4
Out of stock

14

WASHER, FRONT AXLE | B,C,EC,N&EN; 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

1
Out of stock

15

WASHER, LOWER (10.5X24X2.3) | B,C,EC,N&EN; 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

4
Out of stock

16

WASHER | B,C,EC,N&EN; 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

2
Out of stock

17

BOLT | B,C,EC,N&EN

09104-10002

2
Out of stock

18

WASHER | B,C,EC,N&EN This part replaces 08322-11108.

08322-01107

2
Out of stock
