1979 Suzuki GS750B AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

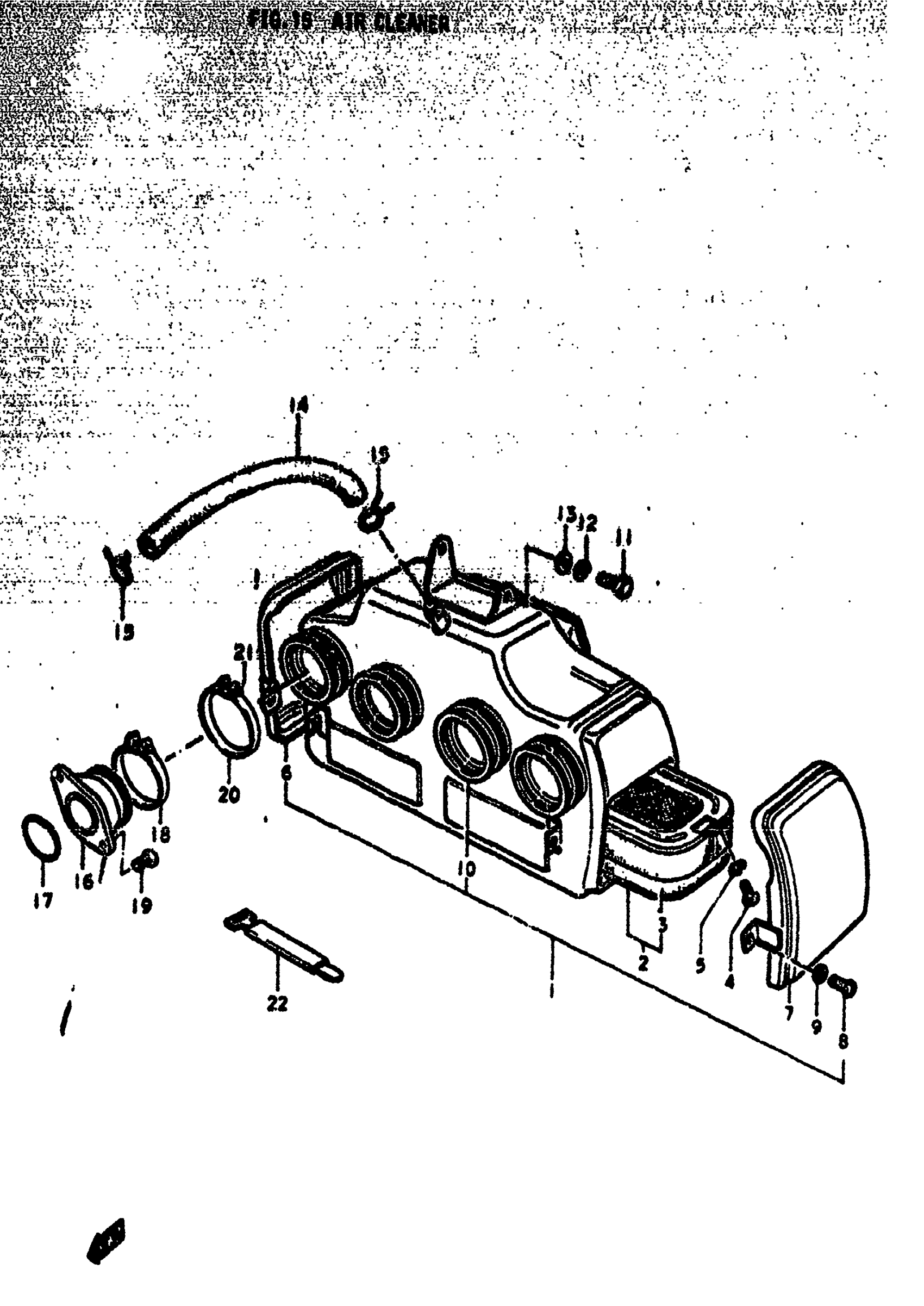

1979 Suzuki GS750B AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | B This part replaces 13700-45010.

13700-45011

1
Out of stock

1

CLEANER ASSY, AIR | C&EC,N&EN; Includes Item(s) 2 - 10

13700-45011

1
Out of stock

2

FILTER | B,C&EC,N&EN

13780-45010

1
Out of stock

3

ELEMENT | B,C&EC,N&EN

13781-45010

1
Out of stock

4

SCREW | B,C&EC,N&EN This part replaces 02112-06108.

02112-06107

2
Out of stock

6

CAP AIR CLEANER | B,C&EC,N&EN This part replaces 13771-45010.

13741-45020

1
Out of stock

7

CAP AIR CLEANER | B,C&EC,N&EN This part replaces 13772-45010.

13742-45020

1
Out of stock

8

SCREW | B,C&EC,N&EN This part replaces 02112-05108.

02112-05107

4
Out of stock

9

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21058.

08321-0105A

4
Out of stock

10

HOSE | B,C&EC,N&EN This part replaces 13728-45010.

13728-45011

4
Out of stock

11

BOLT | B,C&EC,N&EN This part replaces 01107-06128.

01500-06127

2
Out of stock

13

WASHER | B,C&EC,N&EN This part replaces 08322-21068.

08322-01067

2
Out of stock

14

HOSE,11X15X2000 | B,C&EC,N&EN This part replaces 09343-11001.

09352-11154-00B

1
Out of stock

15

CLIP | B,C&EC,N&EN

09401-15301

2
Out of stock

16

PIPE,INTAKE | B,C&EC,N&EN; GS7508:WITH 09280-32006 This part replaces 13110-45010.

13110-49001

4
Out of stock

17

O RING | B,C&EC,N&EN

09280-32006

4
Out of stock

18

CLAMP | B,C&EC,N&EN This part replaces 09402-46306.

09402-46208

4
Out of stock

19

SCREW | B,C&EC,N&EN This part replaces 02112-06168.

02112-06167

8
Out of stock

20

CLAMP | B,C&EC,N&EN; Includes Item(s) 21

09402-52306

4
Out of stock

21

SCREW | B,C&EC,N&EN This part replaces 03211-04258.

03211-0425B

4
Out of stock

22

CLAMP, OVER FLOW HOSE | B,C&EC,N&EN; L:120

09407-12402

1
Out of stock
