1985 Suzuki GS700E Fuel Cock Diagram

← All diagrams

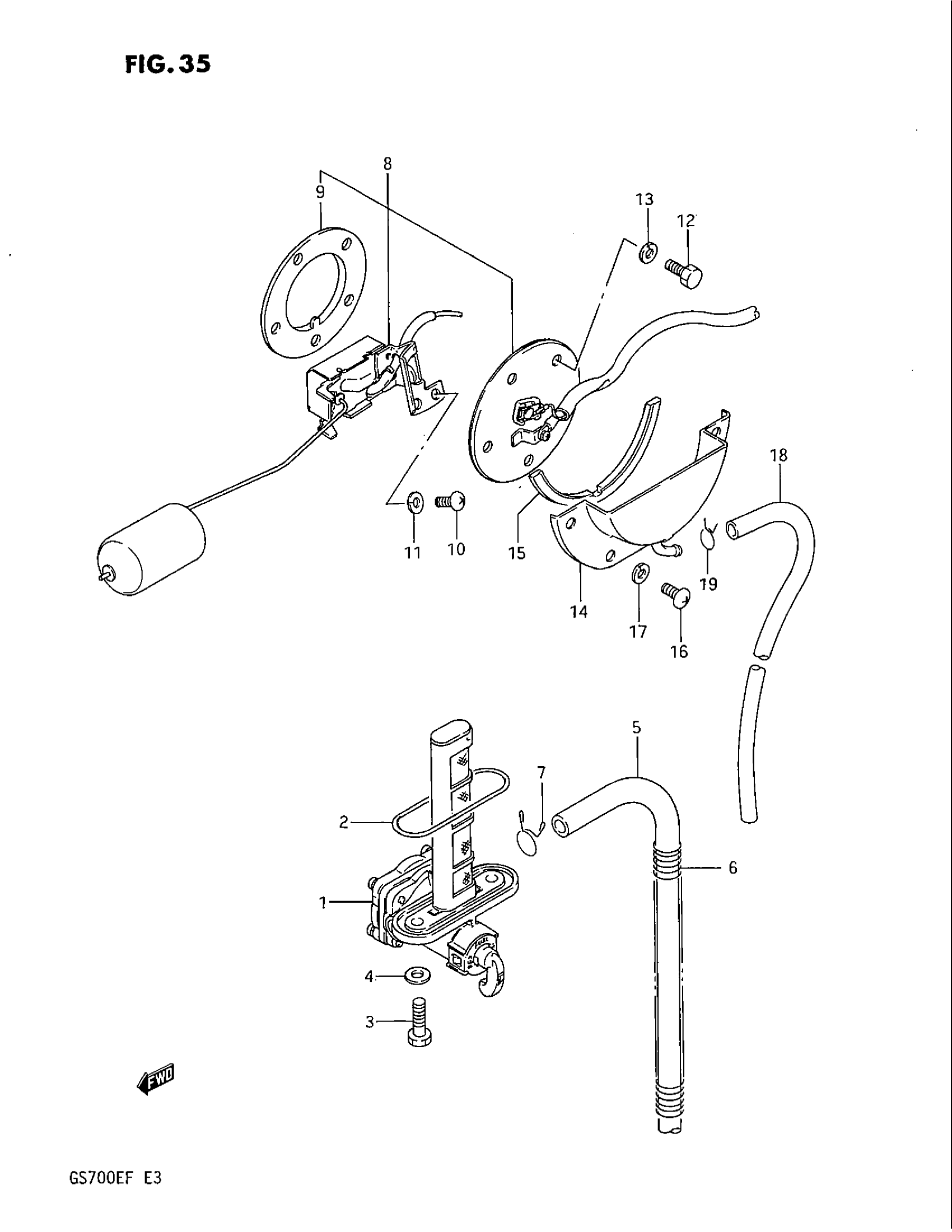

Find the part on the Fuel Cock diagram for your 1985 Suzuki GS700E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS700E Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY,FUEL | OTHER THAN CALIFORNIA This part replaces 44300-34471.

44300-45373

1
Out of stock

1

COCK, FUEL | CALIFORNIA ONLY; Includes Item(s) 2

44300-06A70

1
Out of stock

2

O RING This part replaces 44348-49170.

44348-49171

1
Out of stock

3

BOLT This part replaces 09128-06006.

09128-06057

2
Out of stock

4

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

2
Out of stock

5

HOSE(7X10.2X200 This part replaces 09343-07073.

09352-70104-00B

1
Out of stock

6

1

$13.76

In stock

7

CLIP

09401-10402

2
Out of stock

8

GUAGE ASSY, FUEL LEVEL | Includes Item(s) 9

34810-06A00

1
Out of stock

9

GASKET

34825-49001

1
Out of stock

10

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

2
Out of stock

11

LOCK WASHER This part replaces 08321-21056.

08321-0105A

2
Out of stock

12

BOLT This part replaces 01107-05108.

01500-0510B

5
Out of stock

13

LOCK WASHER This part replaces 08321-21056.

08321-0105A

5
Out of stock

14

PLATE, FUEL DRAIN

34885-34500

1
Out of stock

15

GASKET,FUEL DRA This part replaces 34888-34500.

34888-34501

1
Out of stock

16

SCREW This part replaces 02112-05086.

02112-0508A

4
Out of stock

17

LOCK WASHER This part replaces 08321-21056.

08321-0105A

4
Out of stock

18

HOSE This part replaces 09343-05165.

09352-50005-00B

1
Out of stock

19

CLIP

09401-08402

1
Out of stock
