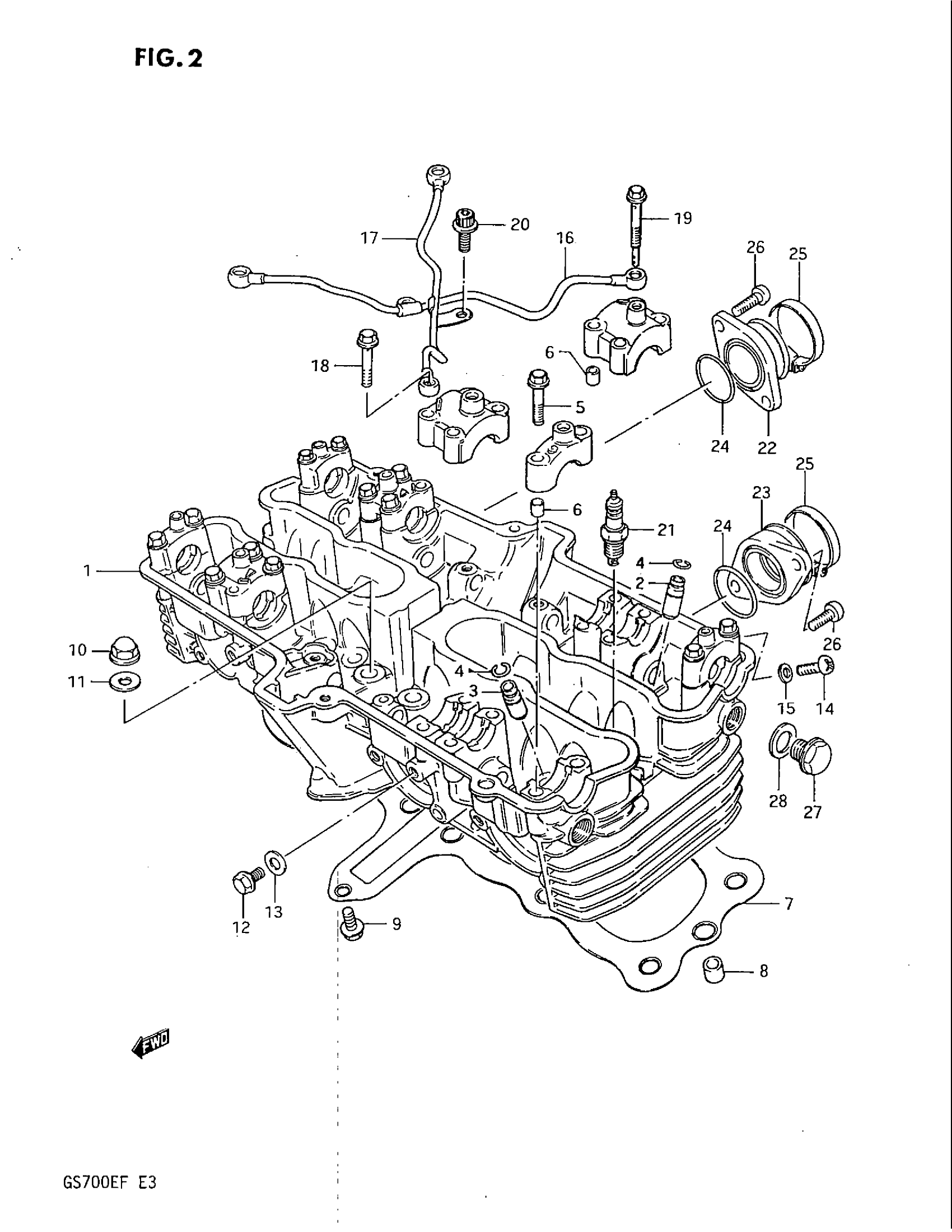

Suzuki GS700E (1985) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-31312

Unavailable

2

GUIDE, INTAKE VALVE

11115-49290

Unavailable

3

GUIDE, EXHAUST VALVE

11115-49290

Unavailable

4

.RING (10X85)

09381-10004

$1.35

5

BOLT (6X39)

09103-06026

$1.84

6

PIN

09206-08001

$1.77

7

GASKET

11141-31302

Unavailable

8

PIN

04211-11189

$1.80

9

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

10

NUT

09159-10026

$5.67

11

GASKET

09168-10017

$2.80

12

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

13

GASKET

09168-06018

$1.70

14

SCREW This part replaces 02112-05085.

02112-0508A

$1.43

15

GASKET

09168-05010

$1.73

16

PIPE, OIL CYLINDER LOWER

12961-31302

Unavailable

17

PIPE, OIL CYLINDER UPPER

12962-31302

Unavailable

18

UNION BOLT, EX

09360-06014

Unavailable

19

UNION BOLT, IN

12965-31300

Unavailable

20

BOLT, EXHAUST COVER This part replaces 07120-06166.

07120-0616B

$2.47

21

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$2.95

21

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$4.60

22

PIPE,INTAKE This part replaces 13110-31300.

13110-31310

Unavailable

23

PIPE,INTAKE,LH This part replaces 13120-31300.

13120-31310

Unavailable

24

O RING

09280-38004

$2.63

25

CLAMP This part replaces 09402-50207.

09402-50208

$4.30

26

SCREW This part replaces 02112-06205.

02112-0620A

$1.45

27

PLUG This part replaces 09247-14028.

09247-14026

$3.38

28

GASKET

09168-14004

$1.69
