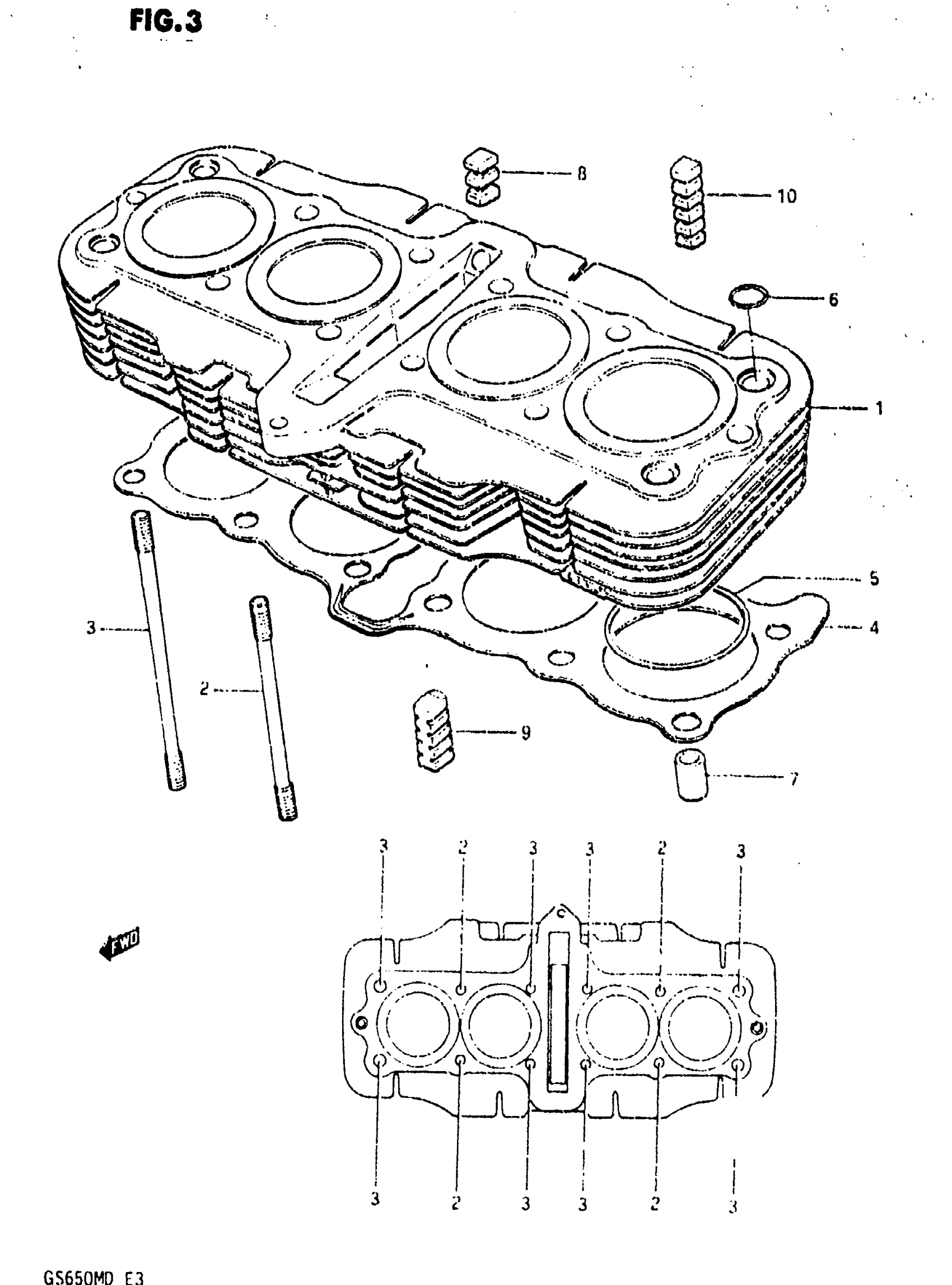

Suzuki GS650M (1983) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11210-34220

Unavailable

2

STUD BOLT (8X135)

09108-08061

Unavailable

3

STUD BOLT (8X170)

09108-08062

$7.57

4

GASKET,CYLINDER This part replaces 11241-34201.

11241-34220

Unavailable

5

O RING

09280-61001

Unavailable

6

O RING

09280-12004

$4.28

7

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

RUBBER PAD (N9->4) This part replaces 11251-34200.

11251-36500

$6.14

9

RUBBER PAD (N9->4) This part replaces 11252-34200.

11251-36500

$6.14

10

RUBBER PAD (N9->4) This part replaces 11253-34200.

11251-36500

$6.14
