1983 Suzuki GS650M Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1983 Suzuki GS650M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

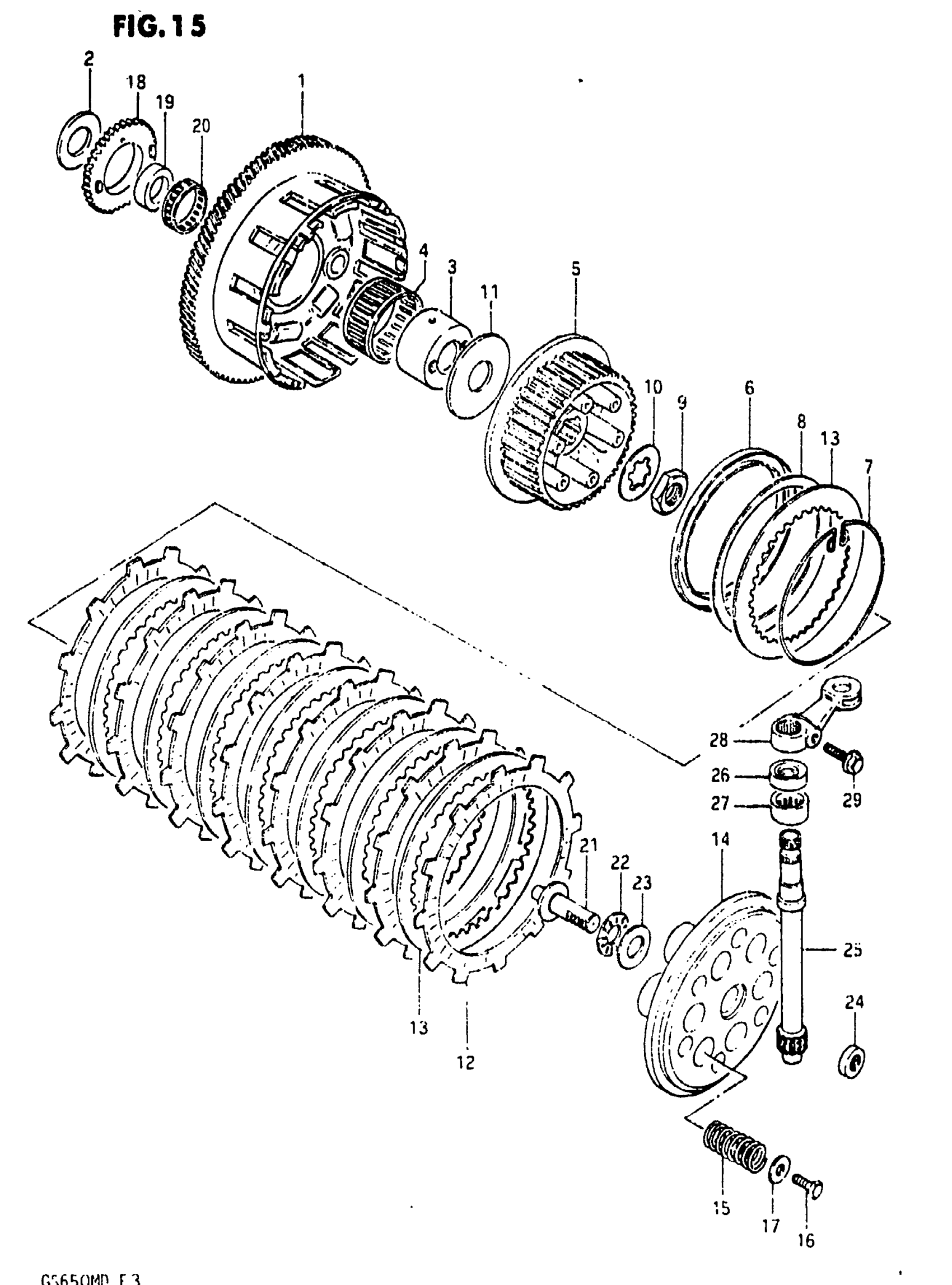

1983 Suzuki GS650M Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVEN (NT:92)

21200-34210

1
Out of stock

2

WASHER This part replaces 09160-25023.

09160-25055

1
Out of stock

3

SPACER

21251-49200

1
Out of stock

4

BEARING This part replaces 09263-51001.

09263-51002

1
Out of stock

5

HUB, SLEEVE

21411-45100

1
Out of stock

6

SEAT, WAVE WASHER

21471-45101

1
Out of stock

7

STOPPER RING

21481-45100

1
Out of stock

8

WASHER, WAVE

09164-00003

1
Out of stock

9

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

1
Out of stock

10

WASHER

09167-25007

1
Out of stock

11

WASHER

09160-25022

1
Out of stock

12

PLATE, DRIVE

21441-45100

8
Out of stock

13

PLATE, DRIVEN

21451-31000

8
Out of stock

14

DISK,CLUTCH PRE This part replaces 21462-45102.

21462-12C00

1
Out of stock

15

SPRING

09440-19004

6
Out of stock

16

6

$2.10

In stock

17

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

6
Out of stock

18

GEAR, OIL PUMP DRIVE (NT:34)

16321-49000

1
Out of stock

19

SPACER

16325-45001

1
Out of stock

20

BEARING

09263-36002

1
Out of stock

21

NO DESCRIPTION AVAILABLE This part replaces 23165-45101.

23165-45102

1
Out of stock

22

BEARING

09263-15003

1
Out of stock

23

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

1
Out of stock

24

OIL SEAL

09285-10003

1
Out of stock

25

PINION, RELEASE

23261-49001

1
Out of stock

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

27

BEARING

09263-15012

1
Out of stock

28

NO DESCRIPTION AVAILABLE This part replaces 23271-34200.

23271-34201

1
Out of stock

29

BOLT This part replaces 01517-06208.

01550-06207

1
Out of stock
