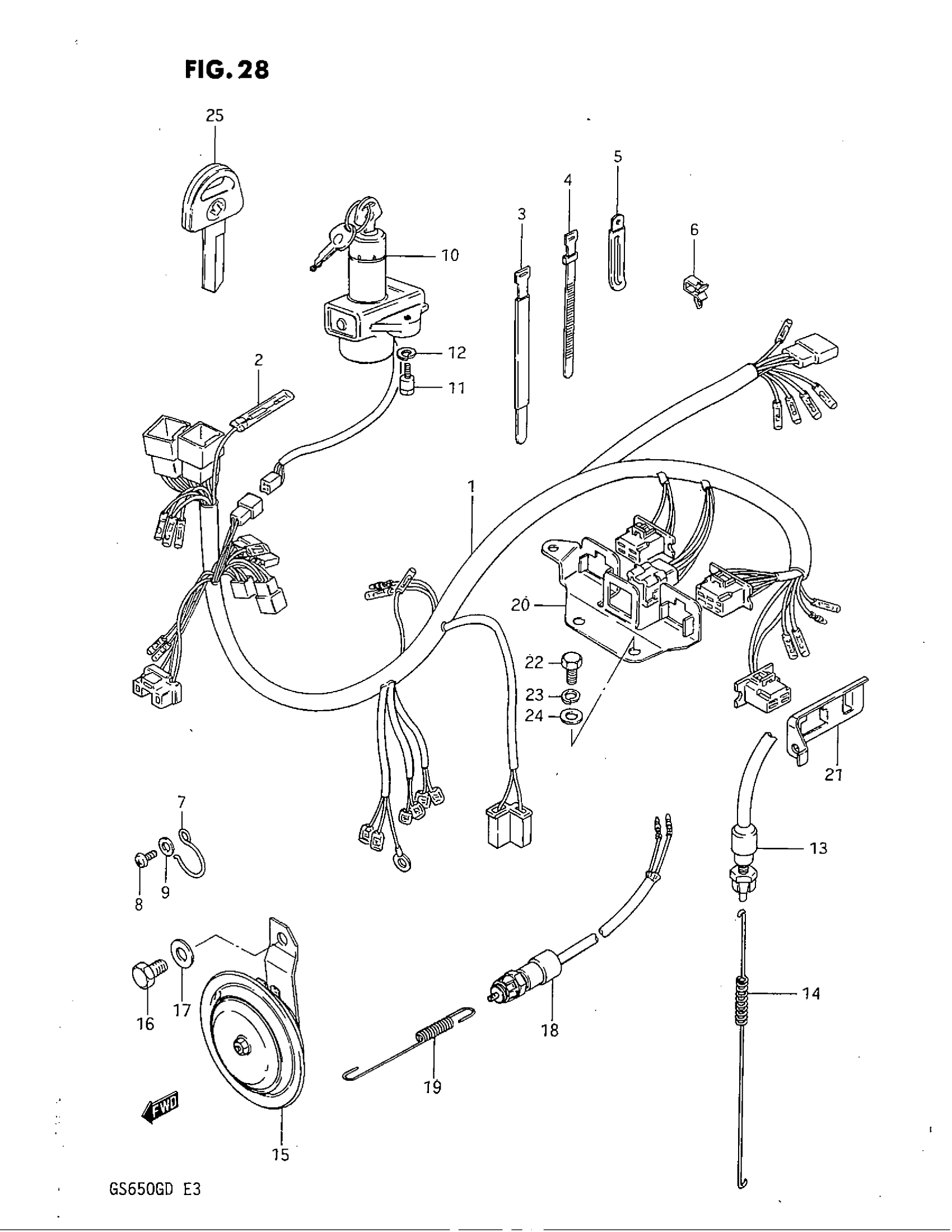

Find the part on the Wiring Harness diagram for your 1983 Suzuki GS650G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS650G Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS | Includes Item(s) 2

36610-34240

1
Out of stock

2

DIODE

36611-02100

1
Out of stock

3

CLAMP This part replaces 09407-18301.

09407-18302

1
Out of stock

4

CLAMP (L:140)

09407-14401

1
Out of stock

5

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

2
Out of stock

6

CLIP

09403-05305

3
Out of stock

7

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

1
Out of stock

8

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

9

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

10

SWITCH ASSY, IGNITION | Includes Item(s) 11 - 12 This part replaces 37100-47011.

37100-45301

1
Out of stock

11

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

12

2

$2.28

In stock

13

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

1
Out of stock

14

SPRING This part replaces 09443-06018.

09443-06018-XC0

1
Out of stock

15

HORN

38500-34230

1
Out of stock

16

BOLT This part replaces 01107-08128.

01500-08127

1
Out of stock

17

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

18

SWITCH, PROP STAND WARNING

37840-34500

1
Out of stock

19

SPRING This part replaces 09443-06021.

09443-06045-XC0

1
Out of stock

20

PLATE, COUPLER HOLDER (A)

47450-34200

1
Out of stock

21

PLATE, COUPLER HOLDER (B)

47452-34200

1
Out of stock

22

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

23

2

$2.28

In stock

24

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

25

KEY, BLANK | OPT

37146-47010

1
Out of stock
