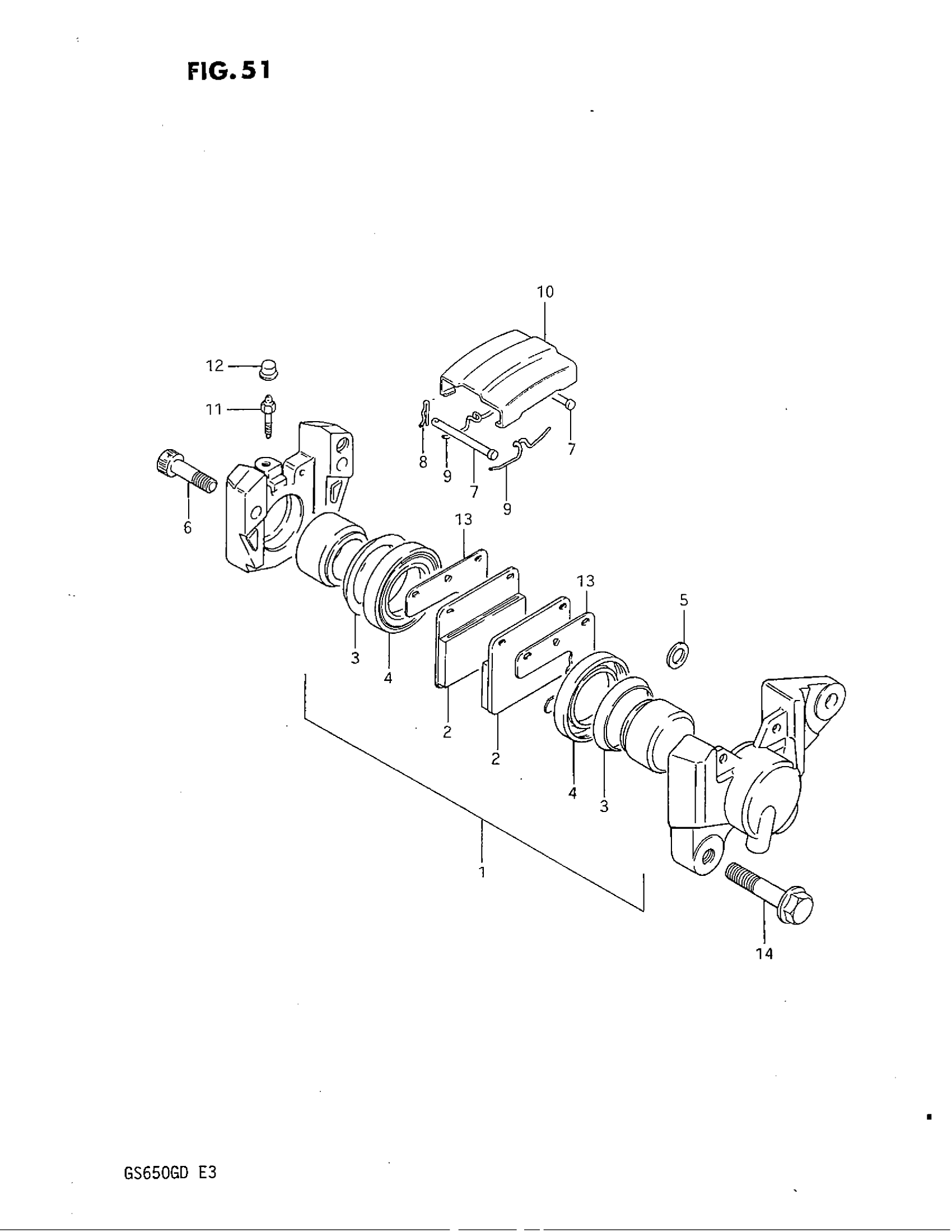

Suzuki GS650G (1983) REAR CARIPERS Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 13 This part replaces 69100-34201.

69100-34270

Unavailable

1

PISTON SET This part replaces 69100-34820.

69100-34851

Unavailable

2

PAD SET This part replaces 69130-45021.

69101-45850-XNA

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.30

4

BOOT, PISTON

69108-45000

$8.00

5

SEAL, PISTON

69107-34200

$9.80

6

BOLT This part replaces 69145-34200.

59145-05C50

$7.51

7

PIN

69141-45000

$4.86

8

.CLIP, PAD PIN

69142-45000

$3.97

9

SPRING

69143-45001

$6.34

10

DUST COVER

69151-45000

$13.48

11

BLEEDER

59121-18410

$7.99

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.73

13

SHIM

69152-45001

$10.00

14

BOLT, RH This part replaces 01527-10308.

01550-10307

$3.58
