1983 Suzuki GS650G Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1983 Suzuki GS650G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

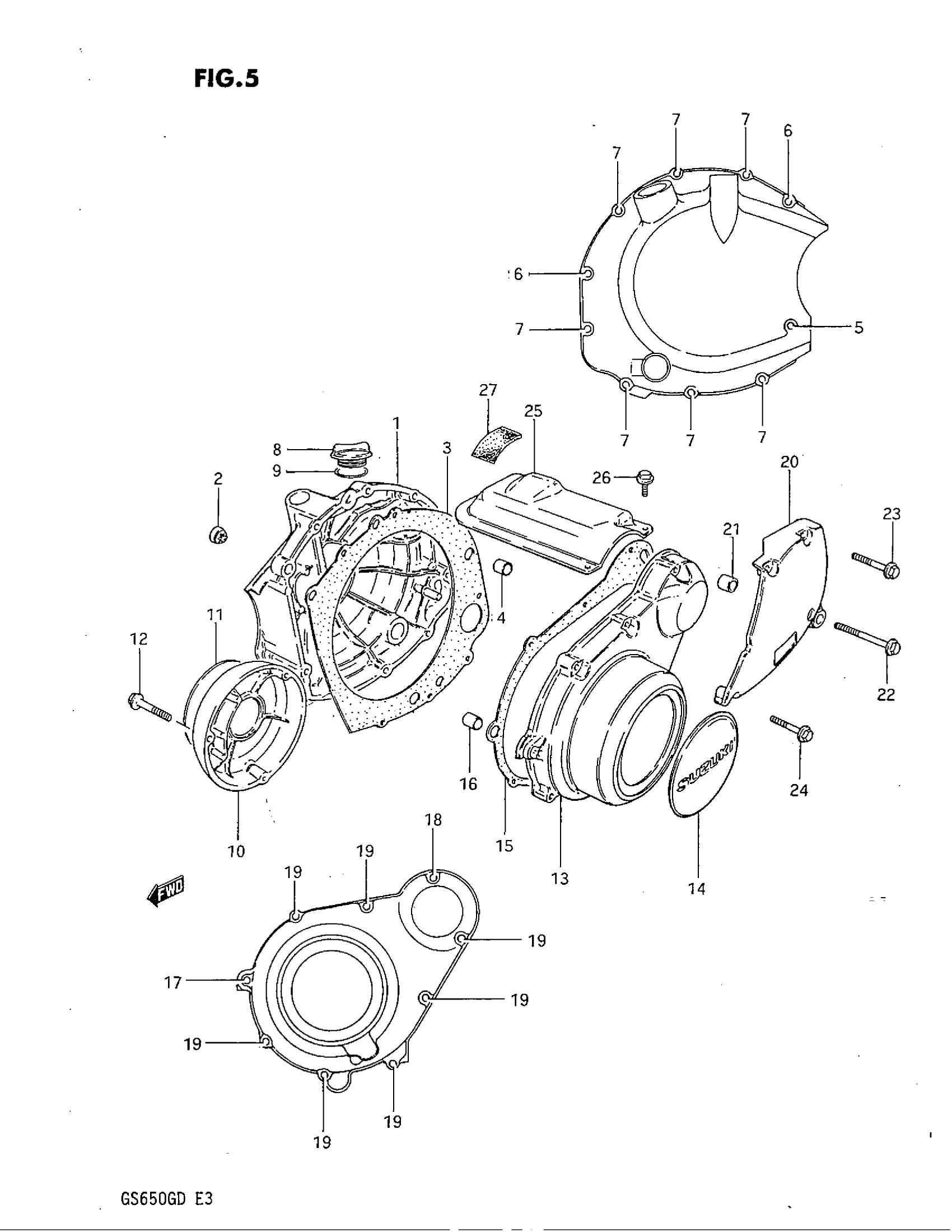

1983 Suzuki GS650G Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-34202

1
Out of stock

2

LENS, OIL LEVEL (OD:30)

11971-33210

1
Out of stock

3

GASKET,CLUTCH C This part replaces 11482-34200.

11482-34210

1
Out of stock

4

PIN

04211-09129

2
Out of stock

5

BOLT This part replaces 01547-06658.

01547-06657

1
Out of stock

6

BOLT This part replaces 01547-06408.

01547-06407

2
Out of stock

7

BOLT This part replaces 01547-06308.

01547-06307

7
Out of stock

8

CAP, OIL FILLER This part replaces 09259-30003.

09200-30810

1
Out of stock

9

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

1
Out of stock

10

COVER, CONTACT BREAKER

11381-49202

1
Out of stock

11

EMBLEM This part replaces 68235-34210.

68235-34200

1
Out of stock

12

BOLT This part replaces 01547-05308.

01547-05307

3
Out of stock

13

COVER, GENERATOR This part replaces 11351-34201.

11351-34310

1
Out of stock

14

EMBLEM This part replaces 68233-34210.

68233-34200

1
Out of stock

15

GASKET,MAGNETO This part replaces 11483-34200.

11483-34210

1
Out of stock

16

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

17

BOLT This part replaces 01547-06458.

01547-06457

1
Out of stock

18

BOLT This part replaces 01547-06358.

01547-06357

1
Out of stock

19

BOLT This part replaces 01547-06308.

01547-06307

7
Out of stock

20

COVER, SECONDARY DRIVE UNIT

11360-34201

1
Out of stock

21

PIN

04211-09129

1
Out of stock

22

BOLT This part replaces 01547-06408.

01547-06407

1
Out of stock

23

BOLT This part replaces 01547-06308.

01547-06307

1
Out of stock

24

BOLT This part replaces 01547-06258.

01547-06257

2
Out of stock

25

COVER, STARTER MOTOR

11382-33300

1
Out of stock

26

BOLT This part replaces 01547-05088.

01547-05087

3
Out of stock

27

DAMPER

11362-34200

1
Out of stock
