1982 Suzuki GS650G Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1982 Suzuki GS650G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

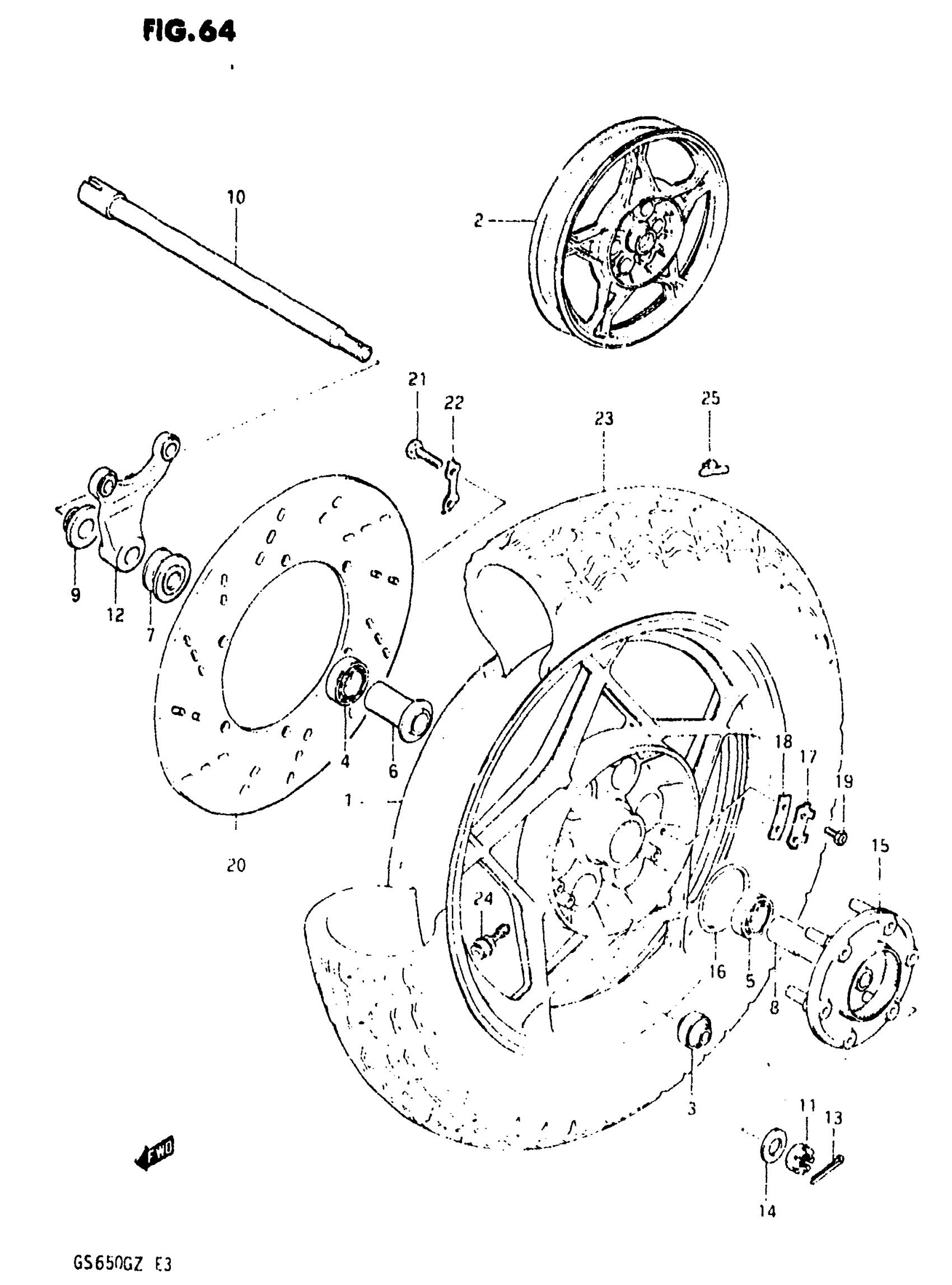

1982 Suzuki GS650G Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 64100-34840.

64100-34832-12U

1
Out of stock

2

WHEEL, REAR (17xMT2.50) | MODEL Z; Includes Item(s) 3

64100-49810-291

1
Out of stock

3

BUSHING

09319-12019

6
Out of stock

4

BEARING This part replaces 08123-63037.

08123-6303B

1
Out of stock

5

BEARING, LH

08143-63037

1
Out of stock

6

SPACER, BEARING

64730-34200

1
Out of stock

7

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 64740-47001.

64740-47002

1
Out of stock

7

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 64740-47010.

64740-47011

1
Out of stock

8

SPACER, LH This part replaces 64772-34200.

64772-34201

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 64741-34300.

64741-34301

1
Out of stock

10

AXLE, REAR

64711-34200

1
Out of stock

11

NUT

09141-16001

1
Out of stock

12

BRACKET, REAR CALIPERS

69721-47001

1
Out of stock

13

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

14

WASHER

09160-16025

1
Out of stock

15

JOINT, HUB DRIVEN This part replaces 64680-45112.

64680-45113

1
Out of stock

16

O RING

09280-65003

1
Out of stock

17

WASHER This part replaces 64676-45114.

09169-06030

3
Out of stock

18

THRUST WASHER (T:1.6)

64677-45110

3
Out of stock

19

BOLT

09119-06049

6
Out of stock

20

DISK, REAR BRAKE

69211-34250

1
Out of stock

21

BOLT

09100-08140

6
Out of stock

22

WASHER This part replaces 09169-08027.

09169-08030-XC0

3
Out of stock

23

TIRE, REAR (4.25H17T/L) | BS

65100-34330

1
Out of stock

24

VALVE, TUBLESS This part replaces 55220-45100.

43130-24A40

1
Out of stock

25

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

1
Out of stock

25

BALANCER (30G)

55412-45100

—
Out of stock
