1982 Suzuki GS650G Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1982 Suzuki GS650G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

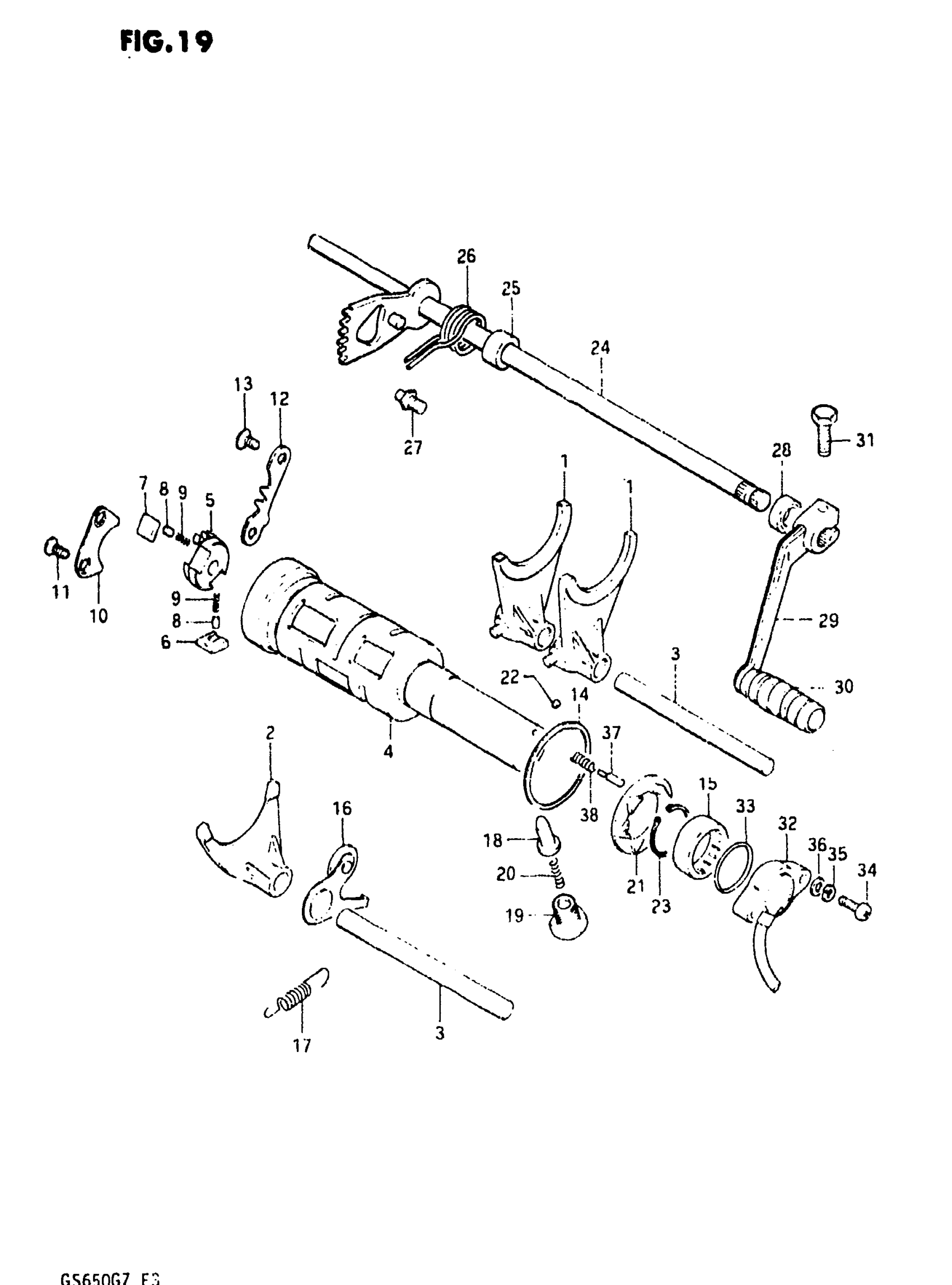

1982 Suzuki GS650G Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING

25211-34200

2
Out of stock

2

FORK, GEAR SHIFTING

25231-34200

1
Out of stock

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

2
Out of stock

4

CAM, GEAR SHIFTING This part replaces 25310-34200.

25310-34201

1
Out of stock

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-34200.

25322-31310

1
Out of stock

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-34200.

25323-34201

1
Out of stock

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-34200.

25324-34201

1
Out of stock

8

PIN

09261-05003

2
Out of stock

9

SPRING

09440-04003

2
Out of stock

10

LIFTER, PAWL

25331-34200

1
Out of stock

11

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

12

GUIDE, CAM

25341-34200

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

WASHER

09160-40001

1
Out of stock

15

BEARING, GEAR SHIFT This part replaces 09263-25031.

09263-25018

1
Out of stock

16

STOPPER, CAM

25350-34200

1
Out of stock

17

SPRING

09443-08023

1
Out of stock

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

1
Out of stock

19

HOLDER, STOPPER

25354-30000

1
Out of stock

20

SPRING

09440-06020

1
Out of stock

21

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

1
Out of stock

22

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

23

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-11258.

08331-31256

1
Out of stock

24

SHAFT, GEAR SHIFTING

25510-34200

1
Out of stock

25

SPACER

09180-12068

1
Out of stock

26

SPRING

09444-26017

1
Out of stock

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

29

NO DESCRIPTION AVAILABLE | Includes Item(s) 30 This part replaces 25600-34200.

25600-34211

1
Out of stock

30

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

31

BOLT, REAR This part replaces 01107-08208.

01500-08207

1
Out of stock

32

BODY, SWITCH | MODEL X

37720-34200

1
Out of stock

32

BODY, SWITCH | MODEL Z

37720-45100

1
Out of stock

33

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

1
Out of stock

34

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

35

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

36

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

37

CONTACT, SWITCH

09209-05011

1
Out of stock

38

SPRING

09440-04010

1
Out of stock
