1982 Suzuki GS650G Front Calipers Diagram

← All diagrams

Find the part on the Front Calipers diagram for your 1982 Suzuki GS650G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

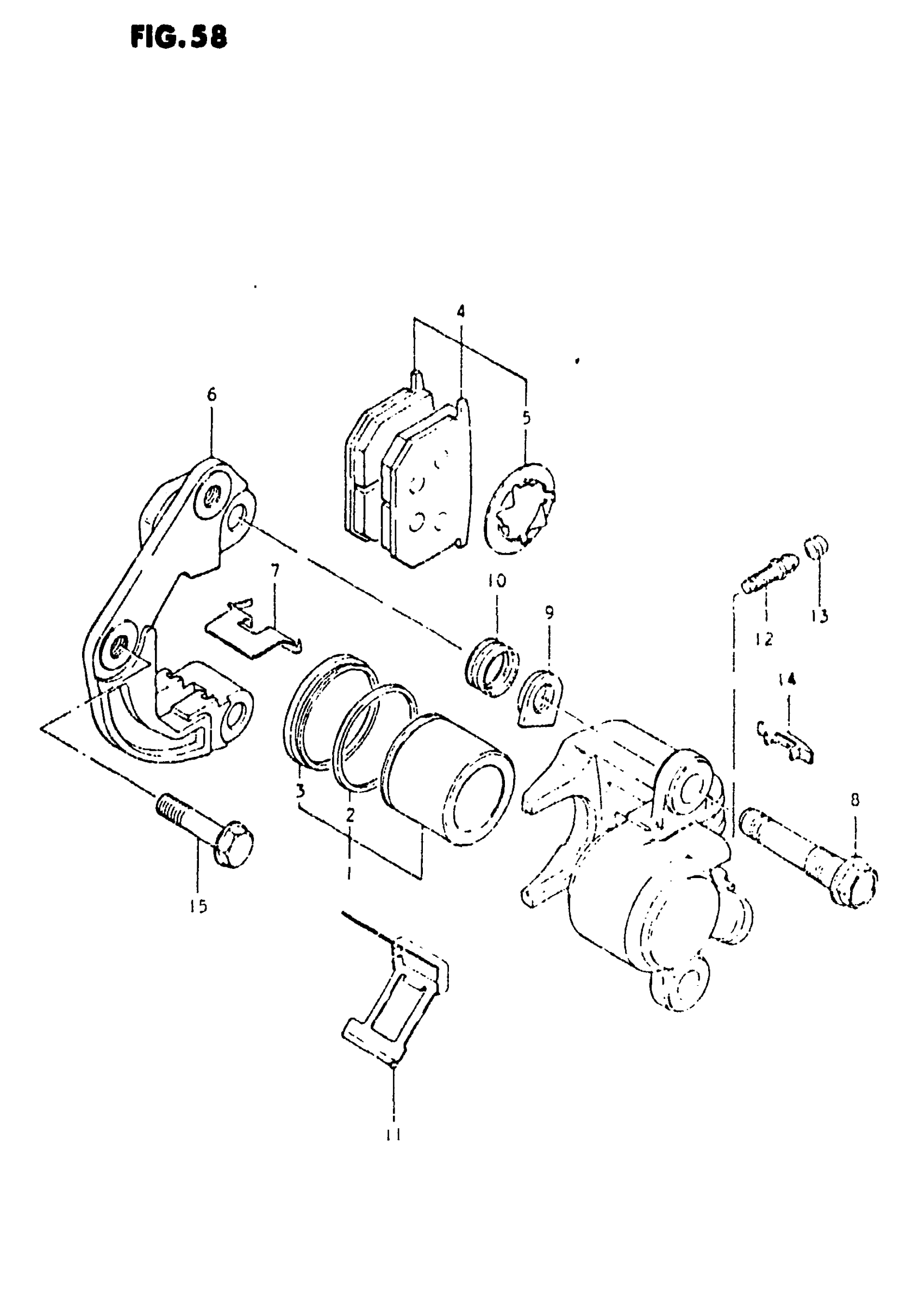

1982 Suzuki GS650G Front Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE This part replaces 59100-49002.

59100-49020

1
Out of stock

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 14 This part replaces 59300-49002.

59300-49020

1
Out of stock

1

PISTON SET This part replaces 59300-49810.

59300-49811

2
Out of stock

2

PISTON SEAL This part replaces 59107-34020.

59107-34021

2
Out of stock

3

BOOT, PISTON

59308-49000

2
Out of stock

4

PAD SET This part replaces 59300-49821.

59300-49850

2
Out of stock

5

SHIM, PAD

59371-49000

2
Out of stock

6

HOLDER, CALIPERS RH

59150-49001

1
Out of stock

6

HOLDER, CALIPERS LH

59350-49001

1
Out of stock

7

GUIDE, PAD

59316-49001

4
Out of stock

8

AXLE, CALIPERS This part replaces 59305-49000.

59305-49001

4
Out of stock

9

NUT

59317-49000

4
Out of stock

10

BOOT

59312-49000

4
Out of stock

11

SPRING

59315-49000

2
Out of stock

12

2

$15.07

In stock

13

2

$5.15

In stock

14

COVER

59324-49000

2
Out of stock

15

BOLT

09103-10019

4
Out of stock
