1982 Suzuki GS650G AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1982 Suzuki GS650G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

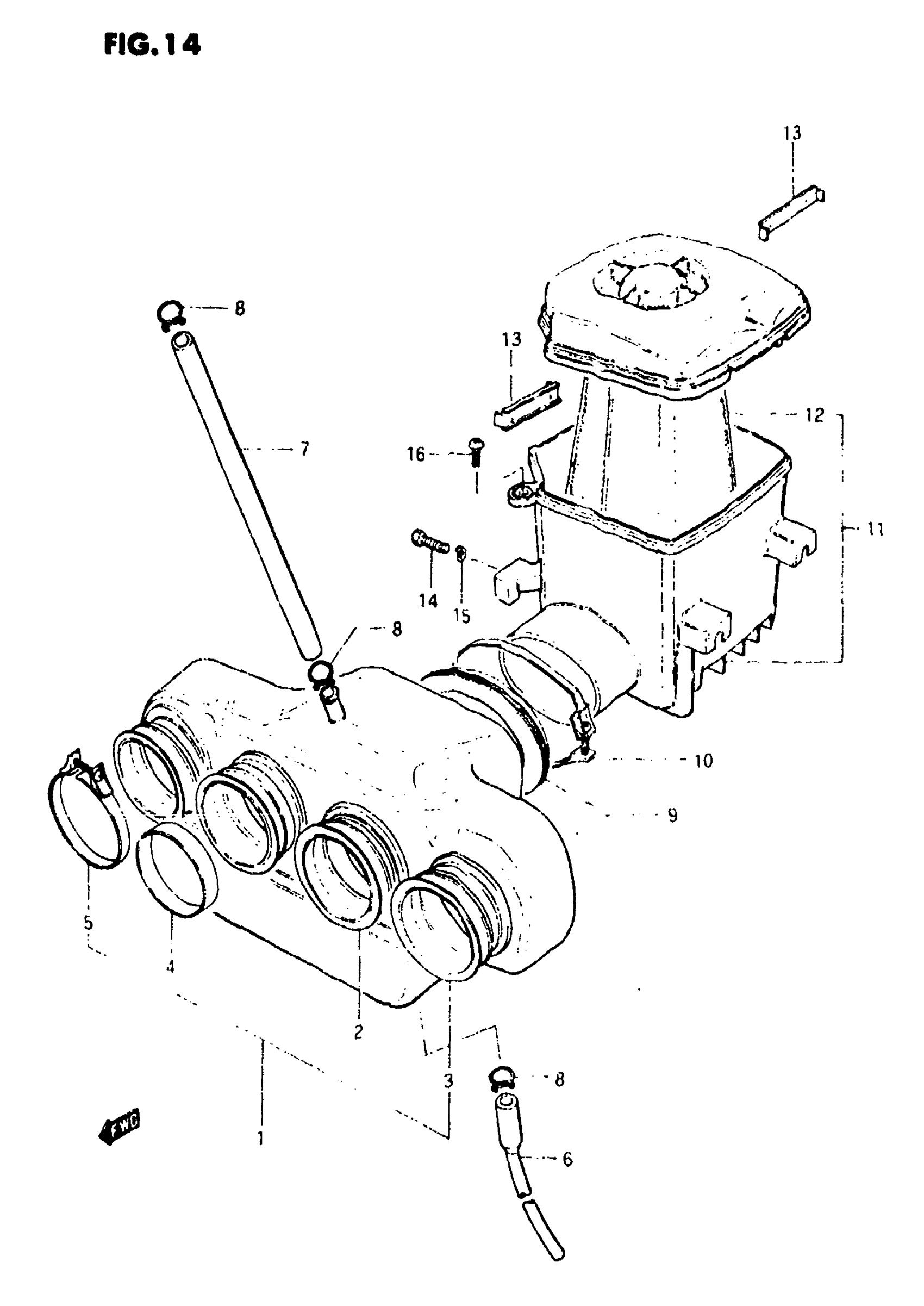

1982 Suzuki GS650G AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAMBER, AIR | Includes Item(s) 2 - 10

13710-34200

1
Out of stock

2

TUBE, OUTLET INNER

13881-34200

2
Out of stock

3

TUBE, OUTER OUTER

13882-34200

2
Out of stock

4

RING This part replaces 13885-34200.

13885-47030

4
Out of stock

5

..CLAMP This part replaces 09402-60206.

09402-60208

4
Out of stock

6

TUBE,DRAIN This part replaces 13870-00020.

13870-11459

1
Out of stock

7

HOSE,11X15X2000 This part replaces 09343-11001.

09352-11154-00B

1
Out of stock

8

CLIP

09401-14301

3
Out of stock

9

TUBE, JOINT

13801-34200

1
Out of stock

10

CLAMP

09402-84206

1
Out of stock

11

CASE SET, REAR | Includes Item(s) 12

13700-34810

1
Out of stock

12

FILTER

13780-34200

1
Out of stock

13

SLIDER

13821-00011

2
Out of stock

14

2

$2.10

In stock

15

2

$2.28

In stock

16

SCREW

02142-06167

1
Out of stock
