1982 Suzuki GS650E Rear Swinging Arm Diagram

← All diagrams

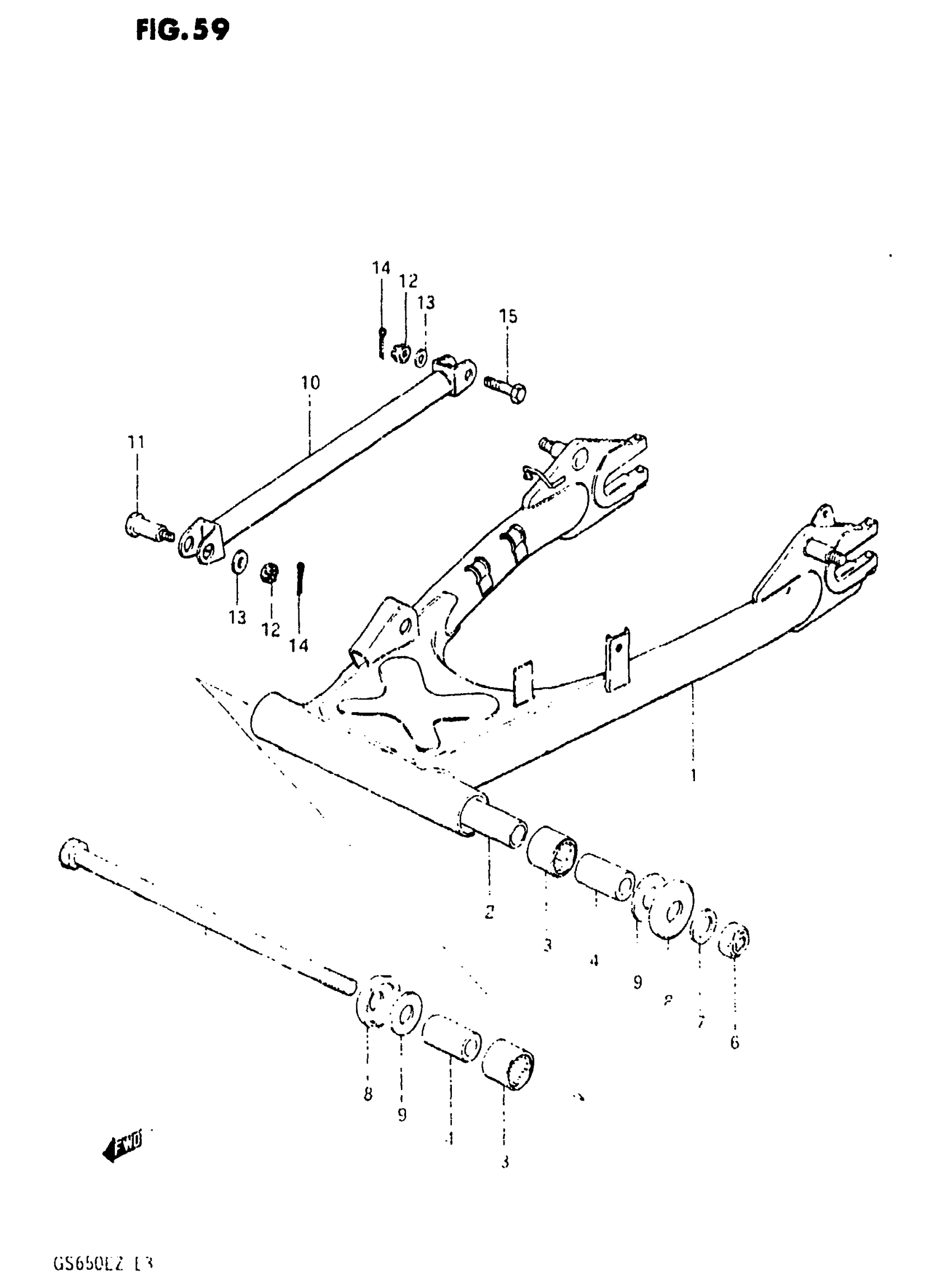

Find the part on the Rear Swinging Arm diagram for your 1982 Suzuki GS650E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS650E Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 61100-34821-019.

61100-34822-019

1
Out of stock

2

SPACER

61281-45001

1
Out of stock

3

BEARING

09263-22017

2

$21.98

In stock

4

SPACER

61251-45001

1

$19.60

In stock

5

SHAFT, PIVOT

61211-45400

1
Out of stock

6

1

$3.91

In stock

7

1

$2.07

In stock

8

COVER, DUST SEAL

61262-45002

2

$8.18

In stock

9

WASHER

09160-14020

2

$2.64

In stock

10

TORQUE LINK, REAR

64310-34501-019

1
Out of stock

11

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

1
Out of stock

12

NUT This part replaces 08314-41108.

08314-4010B

2
Out of stock

13

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

15

BOLT, REAR

09101-10017

1
Out of stock
