1981 Suzuki GS550T Rear Caripers Diagram

← All diagrams

Find the part on the Rear Caripers diagram for your 1981 Suzuki GS550T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

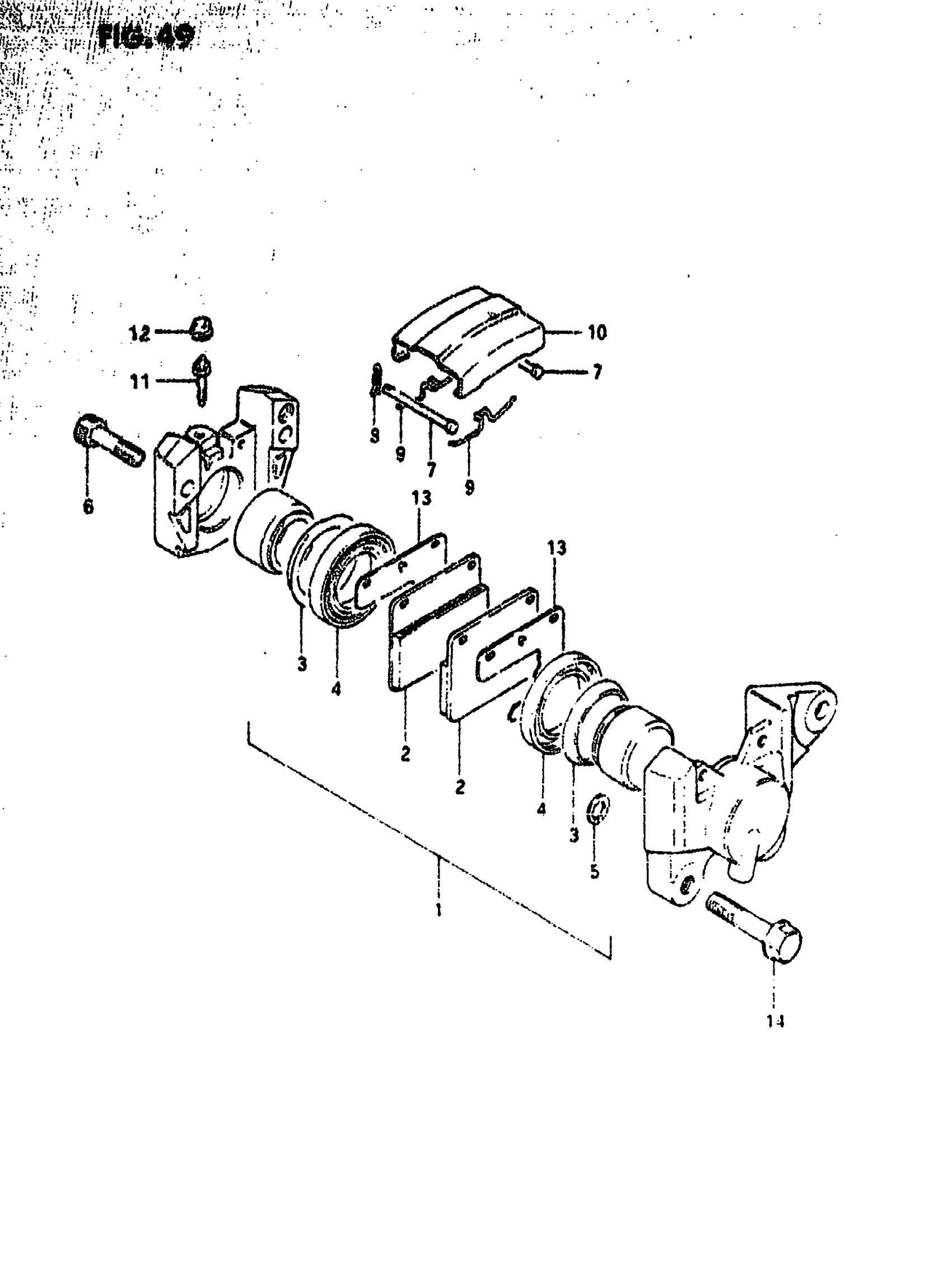

1981 Suzuki GS550T Rear Caripers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 13 This part replaces 69100-34200.

69100-34270

1
Out of stock

1

PISTON SET This part replaces 69100-34810.

69100-34851

1
Out of stock

2

PAD SET This part replaces 69130-45020.

69101-45850-XNA

2
Out of stock

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

2
Out of stock

4

BOOT, PISTON

69108-45000

2
Out of stock

5

SEAL, PISTON

69107-34200

1
Out of stock

6

BOLT This part replaces 69145-34200.

59145-05C50

2
Out of stock

7

PIN

69141-45000

2
Out of stock

8

.CLIP, PAD PIN

69142-45000

2
Out of stock

9

SPRING

69143-45001

2
Out of stock

10

DUST COVER

69151-45000

1
Out of stock

11

BLEEDER

59121-18410

1
Out of stock

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

1
Out of stock

13

SHIM

69152-45001

2
Out of stock

14

BOLT, RH This part replaces 01527-10308.

01550-10307

2
Out of stock
