1981 Suzuki GS550T Handlebar - Front Fender Diagram

← All diagrams

Find the part on the Handlebar - Front Fender diagram for your 1981 Suzuki GS550T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

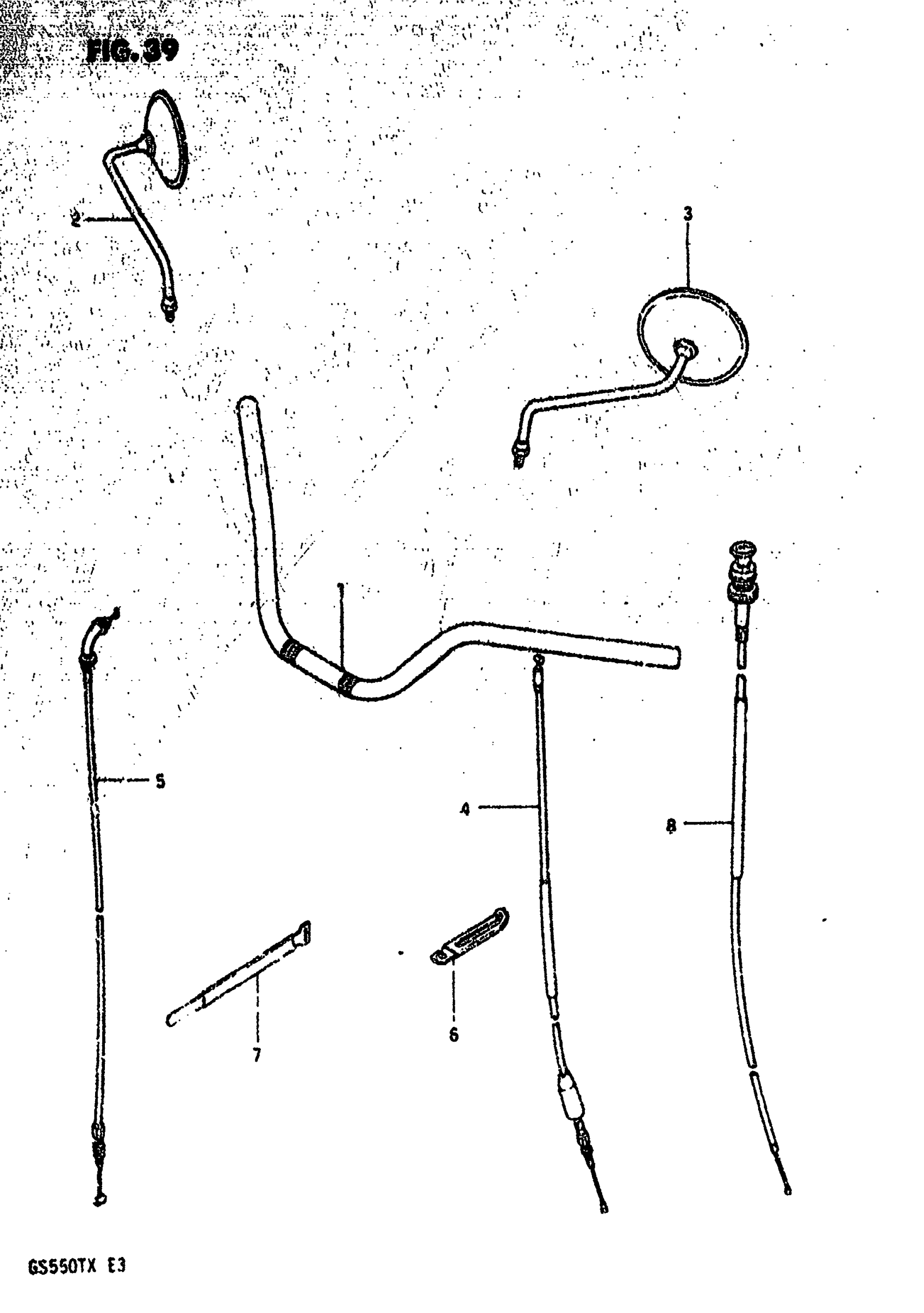

1981 Suzuki GS550T Handlebar - Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR (NEUTRAL)

56110-47400

1
Out of stock

2

MIRROR ASSY,RR This part replaces 56500-47010.

56500-45014

1
Out of stock

3

MIRROR ASSY,RR This part replaces 56600-47010.

56600-45014

1
Out of stock

4

CABLE, CLUTCH (NEUTRAL)

58200-47000

1
Out of stock

5

CABLE,THROTTLE This part replaces 58300-47050.

58300-11491

1
Out of stock

6

CLAMP This part replaces 09404-06403.

09404-06039

1
Out of stock

7

CLAMP This part replaces 09407-18301.

09407-18302

1
Out of stock

8

CABLE, STARTER This part replaces 58400-47000.

58400-45110

1
Out of stock
