1981 Suzuki GS550T Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 1981 Suzuki GS550T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

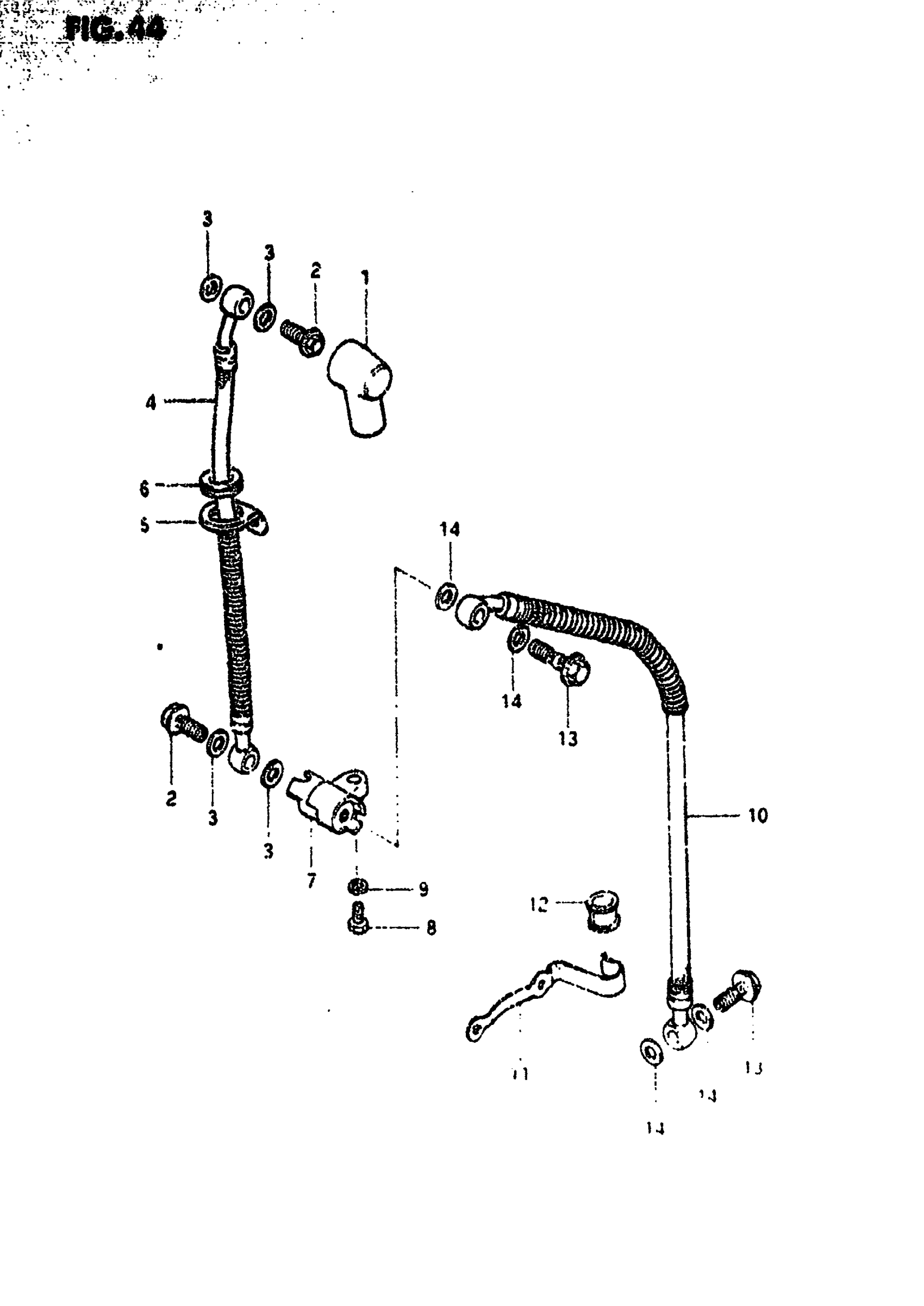

1981 Suzuki GS550T Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT, MASTER CYLINDER This part replaces 59711-18400.

59711-49001

1
Out of stock

2

UNION This part replaces 09360-10007.

09360-10017

2
Out of stock

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

4

HOSE, BRAKE NO. 1

59480-45000

1
Out of stock

5

GUIDE, HOSE

59243-31000

1
Out of stock

6

GROMMET This part replaces 09308-14007.

09308-14009

1
Out of stock

7

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

1
Out of stock

8

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

9

1

$2.28

In stock

10

HOSE, BRAKE NO. 2

59240-44001

1
Out of stock

11

GUIDE

59268-49001

1
Out of stock

12

BUSH

59244-49000

1
Out of stock

13

UNION This part replaces 09360-10007.

09360-10017

2
Out of stock

14

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock
