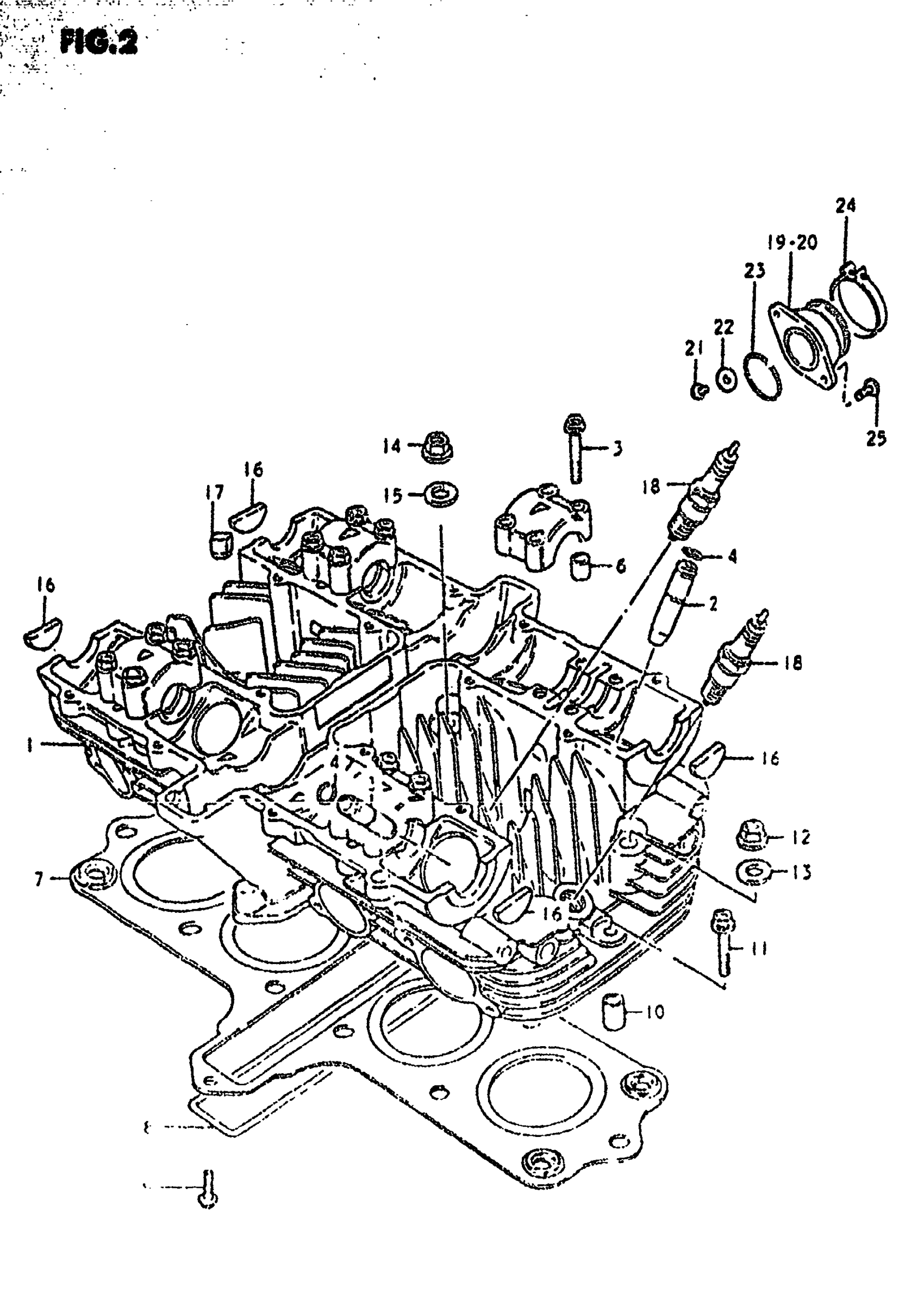

Suzuki GS550T (1981) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-47870.

11100-47890

Unavailable

2

GUIDE, INTAKE VALVE

11115-47740

Unavailable

3

GUIDE, EXHAUST VALVE

11116-47740

$45.97

4

RING, VALVE GUIDE

09381-10003

$2.69

5

BOLT (6X39)

09103-06026

$1.84

6

PIN

09206-08001

$1.77

7

GASKET,CYL HEAD This part replaces 11141-47084.

11141-47086-H17

Unavailable

8

O RING

09280-99003

Unavailable

9

BOLT This part replaces 01517-06308.

01550-06307

$2.73

10

PIN

04211-11189

$1.80

11

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.73

12

NUT

09159-08029

$5.32

13

GASKET This part replaces 09168-08009.

09168-08013

$2.80

14

NUT This part replaces 09159-08031.

09159-08034

$1.62

15

WASHER

09160-08039

$1.95

16

PLUG, SIDE

09241-23002

$5.58

17

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

$3.80

18

SPARK PLUG This part replaces 09482-00225.

09482-00091

$2.80

18

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

19

PIPE,INTAKE,R This part replaces 13110-47010.

13110-47011

$29.91

20

PIPE,INTAKE,L This part replaces 13120-47010.

13120-47011

$30.93

21

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.64

22

WASHER This part replaces 08322-21058.

08322-01057

$1.86

23

O RING This part replaces 09280-38003.

09280-38004

$2.63

24

CLAMP

09402-52306

$4.49

25

SCREW This part replaces 02112-06168.

02112-06167

$1.43
