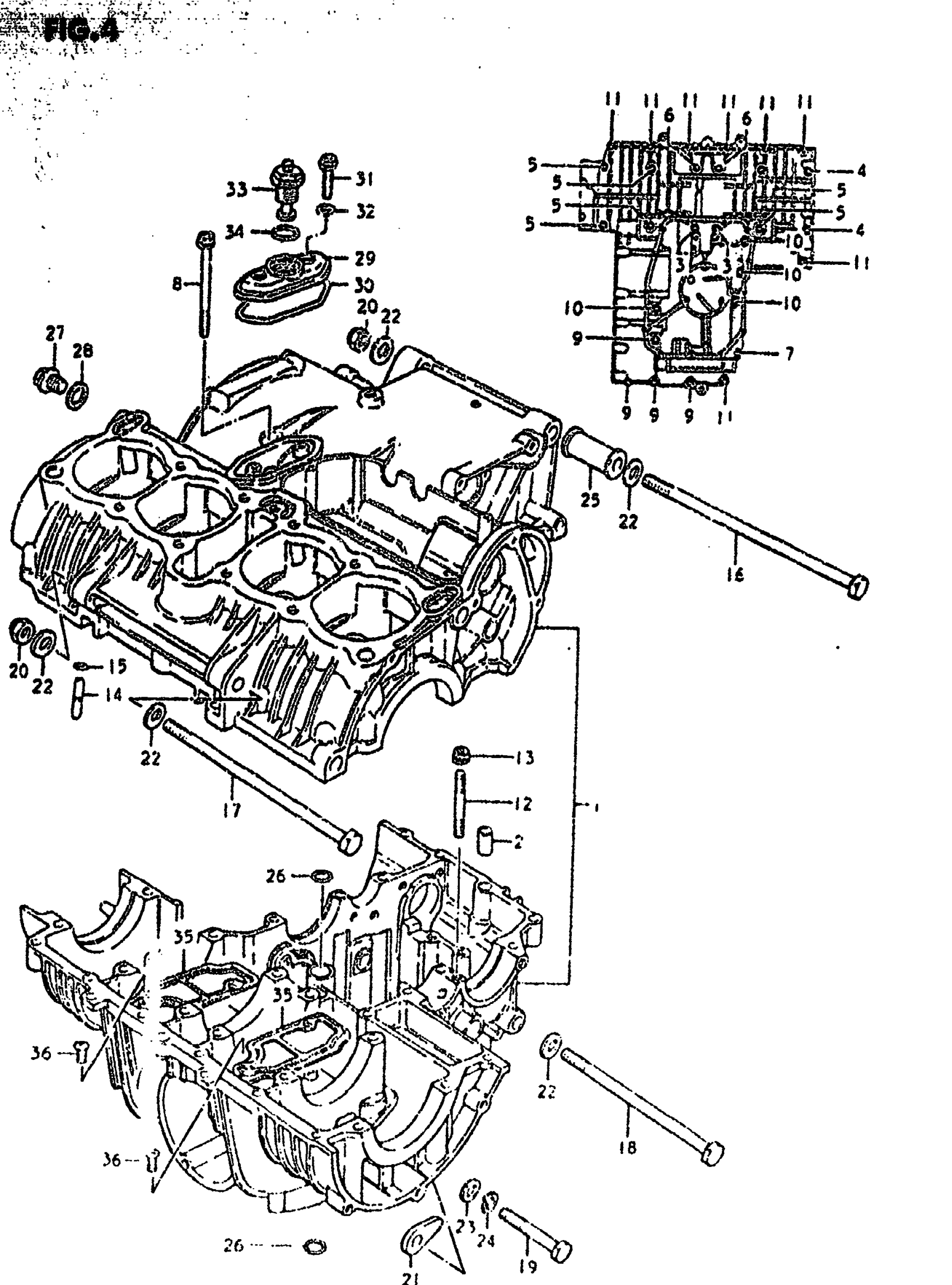

Suzuki GS550T (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 1 - 15 This part replaces 11300-47812.

11300-34880

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.25

3

BOLT (8X120) This part replaces 09103-08026.

09103-08109

$3.00

4

BOLT This part replaces 01517-08908.

01550-08907

$5.63

5

BOLT This part replaces 01517-08708.

01550-08707

$3.71

6

BOLT This part replaces 01517-08558.

01550-08557

$3.37

7

BOLT, MUF SPRT,RR This part replaces 01517-08458.

01550-08457

$4.35

8

BOLT This part replaces 01517-06908.

01550-06907

$5.00

9

BOLT This part replaces 01517-06608.

01550-06607

$4.53

10

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.70

11

BOLT This part replaces 01517-06408.

01550-06407

$2.80

12

BOLT,STUD This part replaces 01421-06408.

01421-0640A

Unavailable

13

NUT This part replaces 08316-16068.

08319-31067

$2.09

14

NOZZLE, OIL GALLERY

09364-05005

$4.07

15

O RING

09280-03003

$1.79

16

NO DESCRIPTION AVAILABLE This part replaces 09100-10074.

09100-10074-XC0

Unavailable

17

BOLT (10X200) This part replaces 09100-10111.

09103-10138

Unavailable

18

BOLT (10x165)

09100-10076

Unavailable

19

BOLT This part replaces 01517-10558.

01550-10557

$3.71

20

NUT

09159-10011

$3.06

21

NUT

09159-10020

$5.63

22

WASHER This part replaces 08322-11108.

08322-01107

$1.95

23

WASHER

09160-10005

$1.86

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

25

SPACER (L:50) This part replaces 11610-45000.

11610-44010

Unavailable

26

O RING, OIL GALLERY

09280-13001

$2.51

27

PLUG This part replaces 09247-14012.

09247-14026

$3.49

28

GASKET

09168-14004

$1.69

29

HOUSING, OIL PRESSURE SWITCH

16445-45000

Unavailable

30

O RING

16448-45000

$8.75

31

BOLT This part replaces 01517-06258.

01550-06257

$2.38

32

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.09

33

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

$35.73

34

O RING

09280-19001

$1.43

35

PLATE, OIL SEPARATOR

11521-47000

Unavailable

36

SCREW This part replaces 02112-06088.

02112-06087

$1.49
