1982 Suzuki GS550M Front Brake Hose Diagram

← All diagrams

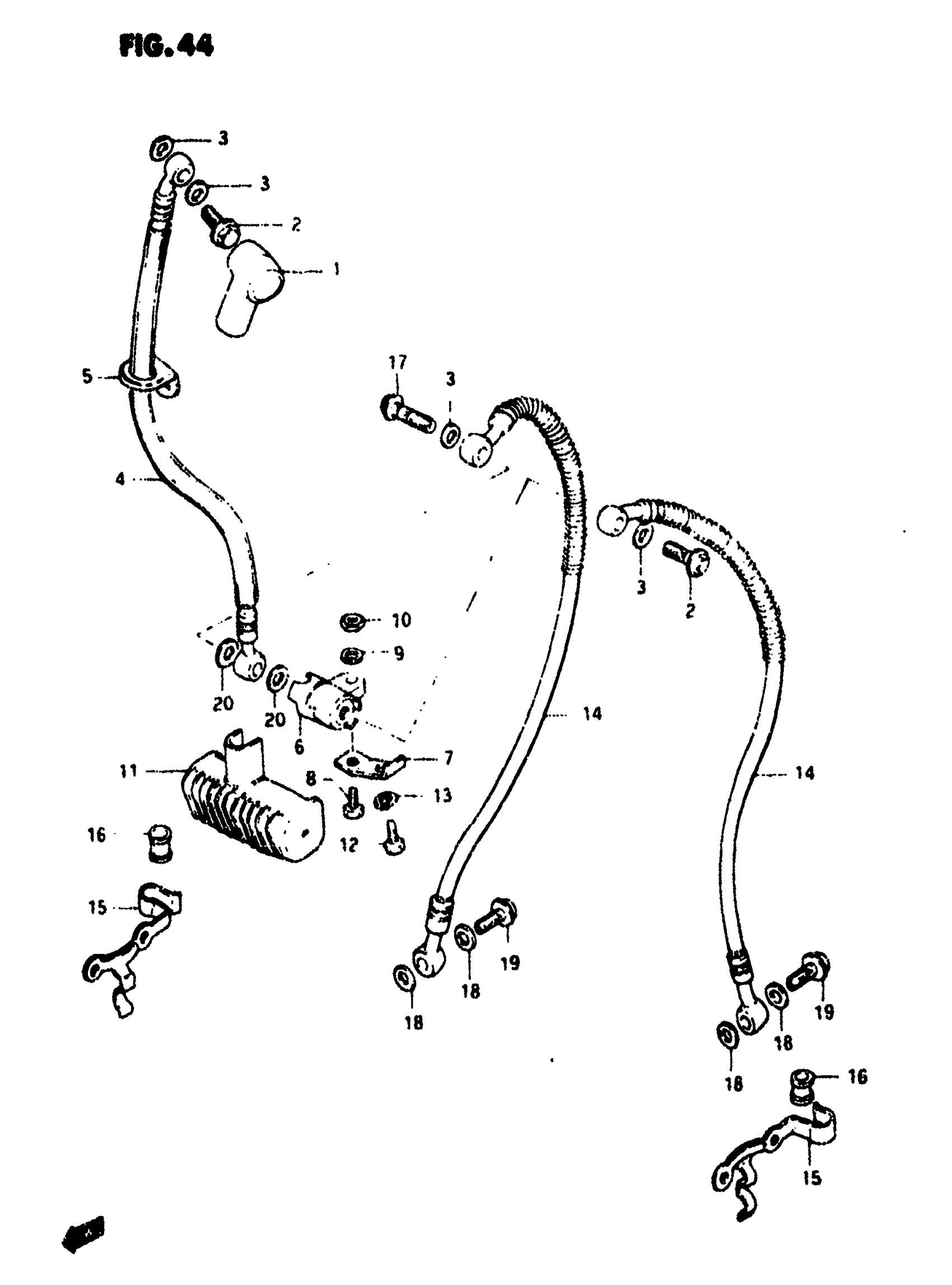

Find the part on the Front Brake Hose diagram for your 1982 Suzuki GS550M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS550M Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT, MASTER CYLINDER

59711-49001

1

$7.70

In stock

2

UNION This part replaces 09360-10007.

09360-10017

2
Out of stock

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

4

HOSE, BRAKE NO.1 This part replaces 59480-34302.

59480-34320

1
Out of stock

5

GUIDE, HOSE

59243-31010

1
Out of stock

6

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

1
Out of stock

7

BRACKET

59492-47700

1
Out of stock

8

1

$2.10

In stock

9

1

$2.28

In stock

10

1

$1.82

In stock

11

COVER

59495-34300

1
Out of stock

12

1

$2.48

In stock

13

1

$2.28

In stock

14

HOSE, BRAKE NO.2 This part replaces 59240-34200.

59240-47700

2
Out of stock

15

CLAMP

59268-49001

2
Out of stock

16

BUSHING

59244-49000

2
Out of stock

17

1

$7.38

In stock

18

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

19

UNION This part replaces 09360-10007.

09360-10017

2
Out of stock

20

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

3
Out of stock
