1982 Suzuki GS550M Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1982 Suzuki GS550M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

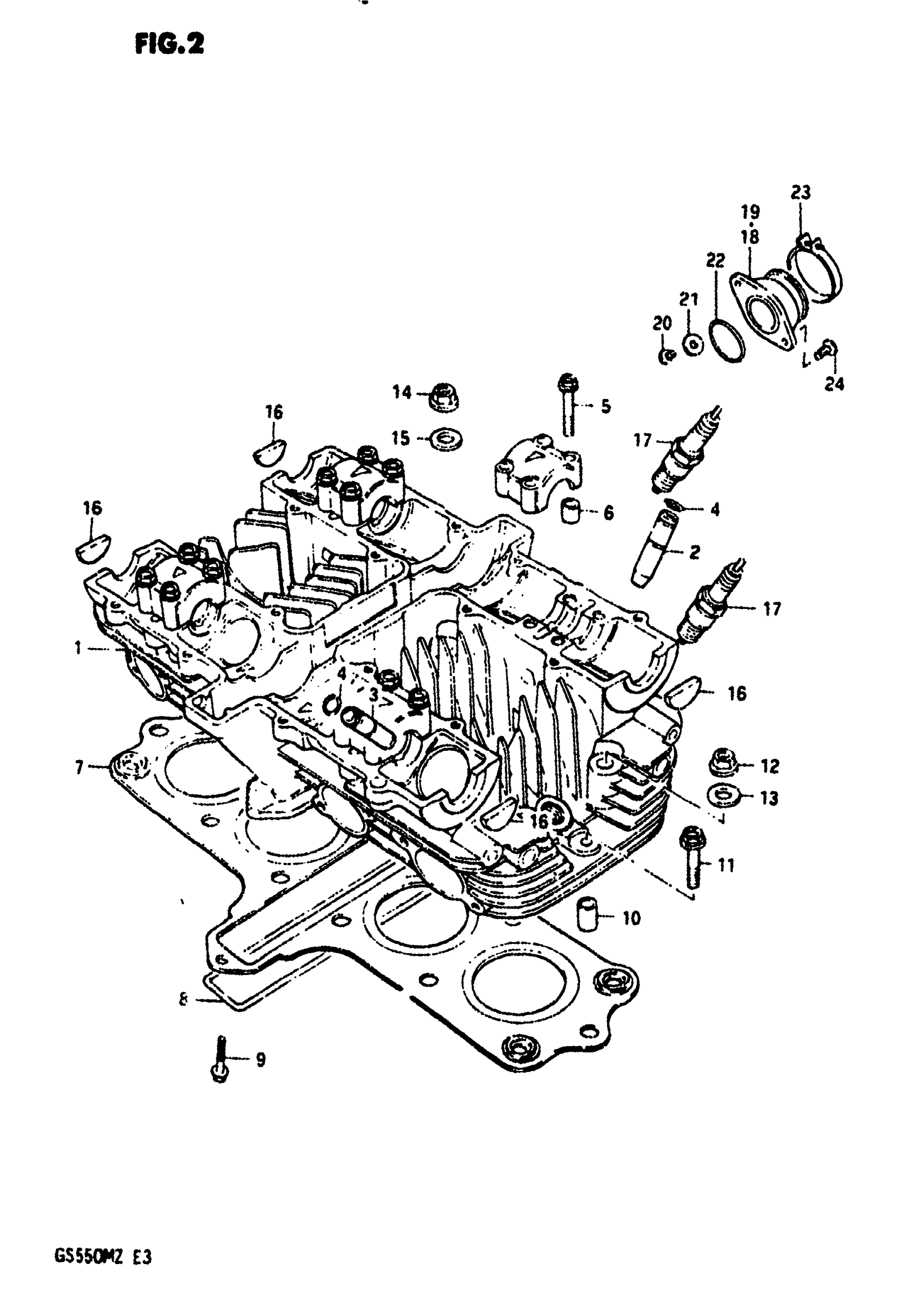

1982 Suzuki GS550M Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-47020

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-47740

4
Out of stock

3

GUIDE, EXHAUST VALVE

11116-47740

4
Out of stock

4

RING, VALVE GUIDE

09381-10003

8
Out of stock

5

BOLT (6X39)

09103-06026

16
Out of stock

6

PIN

09206-08001

8
Out of stock

7

GASKET,CYL HEAD This part replaces 11141-47085.

11141-47086-H17

1
Out of stock

8

O RING

09280-99003

1
Out of stock

9

BOLT This part replaces 01517-06308.

01550-06307

1
Out of stock

10

PIN

04211-11189

2
Out of stock

11

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

2
Out of stock

12

NUT

09159-08029

4
Out of stock

13

GASKET

09168-08013

4
Out of stock

14

8

$1.73

In stock

15

WASHER

09160-08039

8
Out of stock

16

PLUG, SIDE

09241-23002

4
Out of stock

17

SPARK PLUG This part replaces 09482-00056.

09482-00091

4
Out of stock

17

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

4
Out of stock

18

2

$32.57

In stock

19

2

$33.69

In stock

20

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

4
Out of stock

21

WASHER This part replaces 08322-21058.

08322-01057

4
Out of stock

22

O RING This part replaces 09280-38003.

09280-38004

4
Out of stock

23

CLAMP

09402-50306

4
Out of stock

24

SCREW This part replaces 02112-06168.

02112-06167

8
Out of stock
