1982 Suzuki GS550M Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1982 Suzuki GS550M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

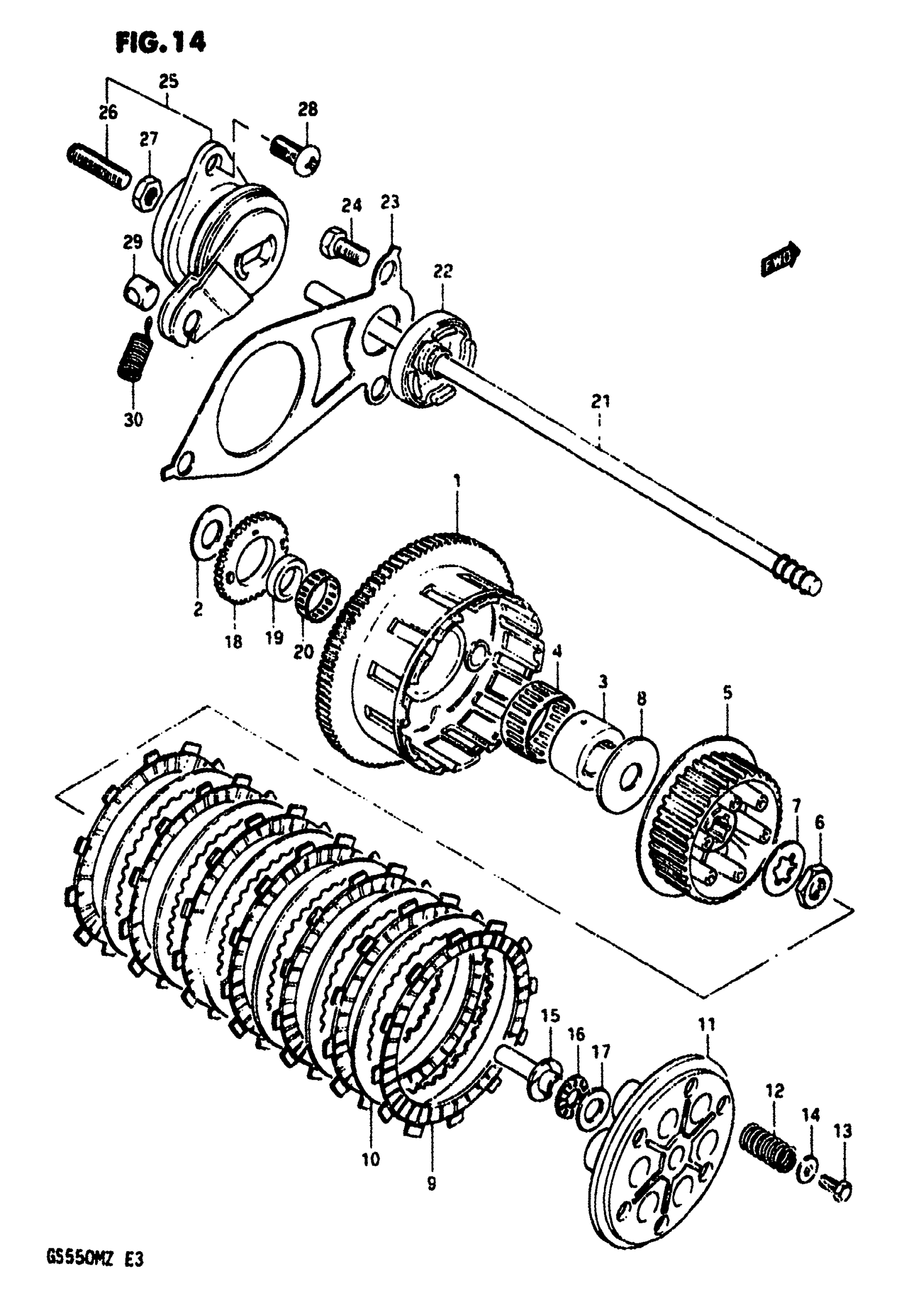

1982 Suzuki GS550M Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVEN (NT:87)

21200-47010

1
Out of stock

2

WASHER This part replaces 09160-25023.

09160-25055

1
Out of stock

3

SPACER This part replaces 21251-45001.

21251-49200

1
Out of stock

4

BEARING This part replaces 09263-51001.

09263-51002

1
Out of stock

5

HUB, SLEEVE

21411-47000

1
Out of stock

6

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

1
Out of stock

7

WASHER

09167-25007

1
Out of stock

8

WASHER

09160-25022

1
Out of stock

9

PLATE, DRIVE This part replaces 21441-45000.

21441-45001

7
Out of stock

10

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

6
Out of stock

11

PLATE, PRESSURE This part replaces 21462-16501.

21462-14301

1
Out of stock

12

SPRING

09440-19004

6
Out of stock

13

6

$2.10

In stock

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

6
Out of stock

15

PIECE, PUSH

23121-44100

1
Out of stock

16

BEARING

09263-15003

1
Out of stock

17

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

1
Out of stock

18

GEAR, OIL PUMP DRIVE (NT:38)

16321-45002

1
Out of stock

19

SPACER

16325-45001

1
Out of stock

20

BEARING

09263-36002

1
Out of stock

21

ROD, PUSH

23100-44101

—
Out of stock

22

SEAL, CLUTCH PUSH ROD This part replaces 09283-06001.

09285-06011

1
Out of stock

23

HOLDER, OIL SEAL This part replaces 23117-47000.

23117-44000

1
Out of stock

24

BOLT This part replaces 01107-06128.

01500-06127

3
Out of stock

25

SCREW ASSY, RELEASE | Includes Item(s) 26 - 27

23200-30002

1
Out of stock

26

SCREW This part replaces 09134-06001.

09134-06010

1
Out of stock

27

.NUT This part replaces 08310-22068.

08310-00067

1
Out of stock

28

SCREW This part replaces 02112-06128.

02112-06127

2
Out of stock

29

PIECE, ARM END

23222-07000

1
Out of stock

30

SPRING

09443-08001

1
Out of stock
