1986 Suzuki GS550L AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1986 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

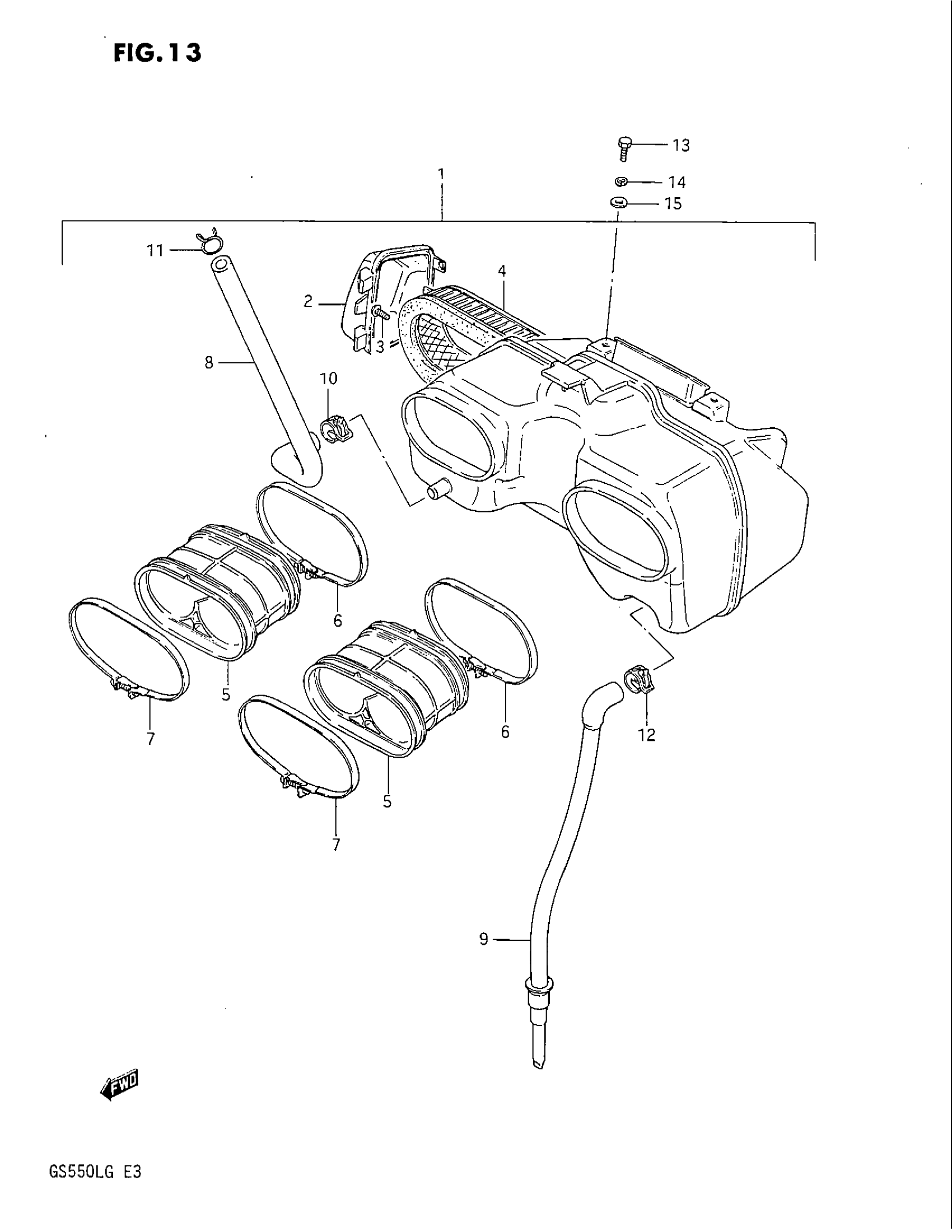

1986 Suzuki GS550L AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-43512

1
Out of stock

2

CAP

13740-43500

1
Out of stock

3

.SCREW This part replaces 02142-05125.

02142-0512A

1
Out of stock

4

FILTER

13780-43400

1
Out of stock

5

TUBE, OUTLET

13881-43501

2
Out of stock

6

CLAMP, CLEANER SIDE

13827-43401

2
Out of stock

7

CLAMP, CARBURETOR SIDE

13826-43401

2
Out of stock

8

HOSE, BREATHER

13853-43400

1
Out of stock

9

TUBE,DRAIN This part replaces 13870-21351.

13870-21459

1
Out of stock

10

CLIP This part replaces 13824-43400.

09401-14404

1
Out of stock

11

CLIP This part replaces 13828-00020.

09401-14401

1
Out of stock

12

CLAMP This part replaces 13825-43400.

09401-13417

1
Out of stock

13

2

$2.10

In stock

14

2

$2.28

In stock

15

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock
