Description

Price

0

CALIPERS ASSY, FRONT | Includes Item(s) 1 - 13

59300-33410

Unavailable

1

PISTON SET This part replaces 69100-16810.

69100-27821

$101.26

2

PAD SET, BRAKE This part replaces 59130-16700.

59100-16820

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.68

4

BOOT, PISTON

59108-16700

$9.25

5

SEAL, PISTON

69107-34200

$10.25

6

BOLT This part replaces 69145-16700.

59145-05C50

$7.85

7

PIN

69141-45000

$5.09

8

.CLIP, PAD PIN

69142-45000

$4.15

9

SPRING

59143-16700

$5.54

10

COVER This part replaces 59151-16700.

59151-16701

$13.15

11

BLEEDER

59121-18410

$8.35

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.94

13

SHIM

59371-33420

$17.08

14

BOLT (10X33) This part replaces 09106-10018.

09106-10038

$4.53

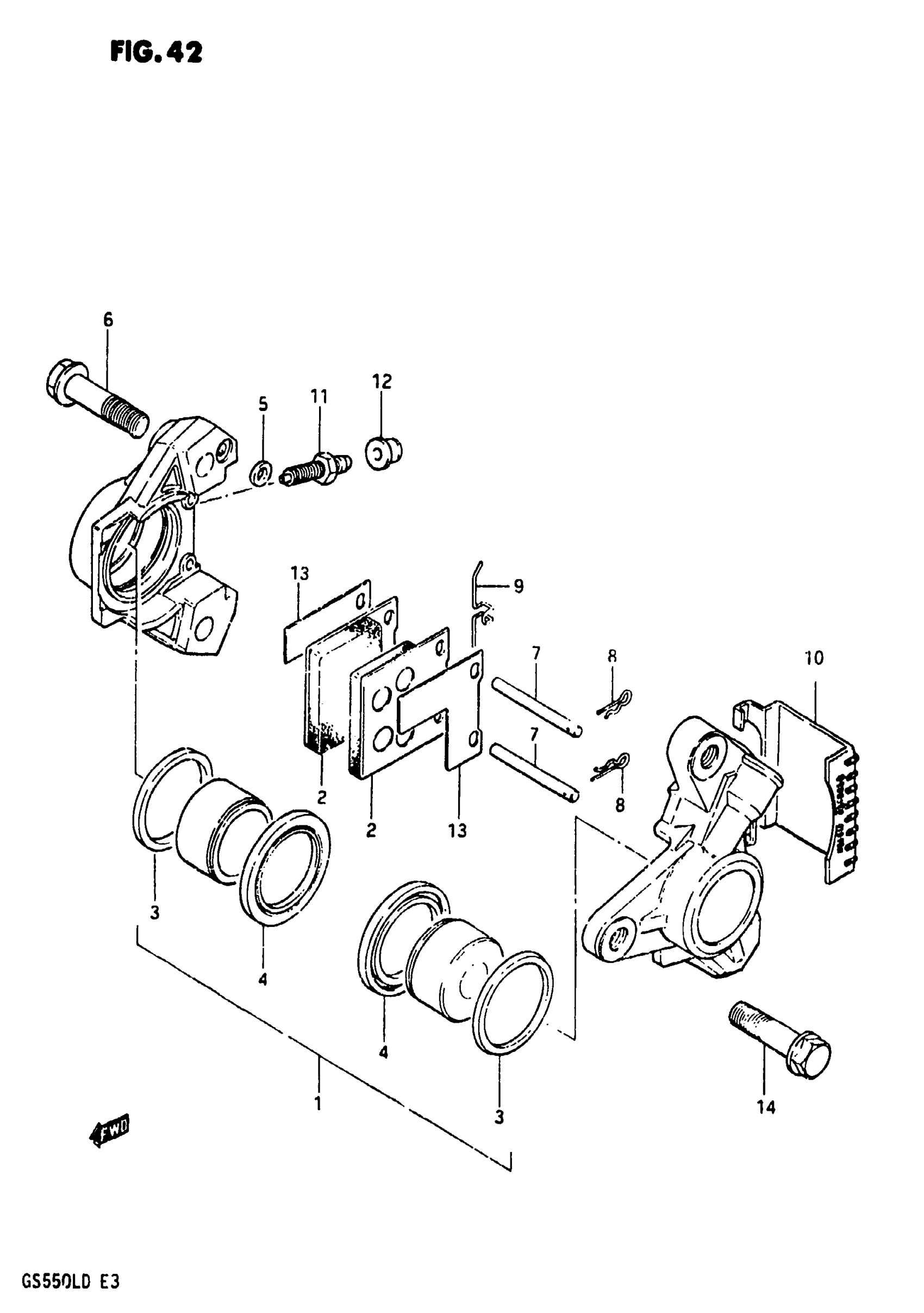

Suzuki GS550L (1983) FRONT CALIPERS Diagram
