1983 Suzuki GS550L Cylinder Head Diagram

← All diagrams

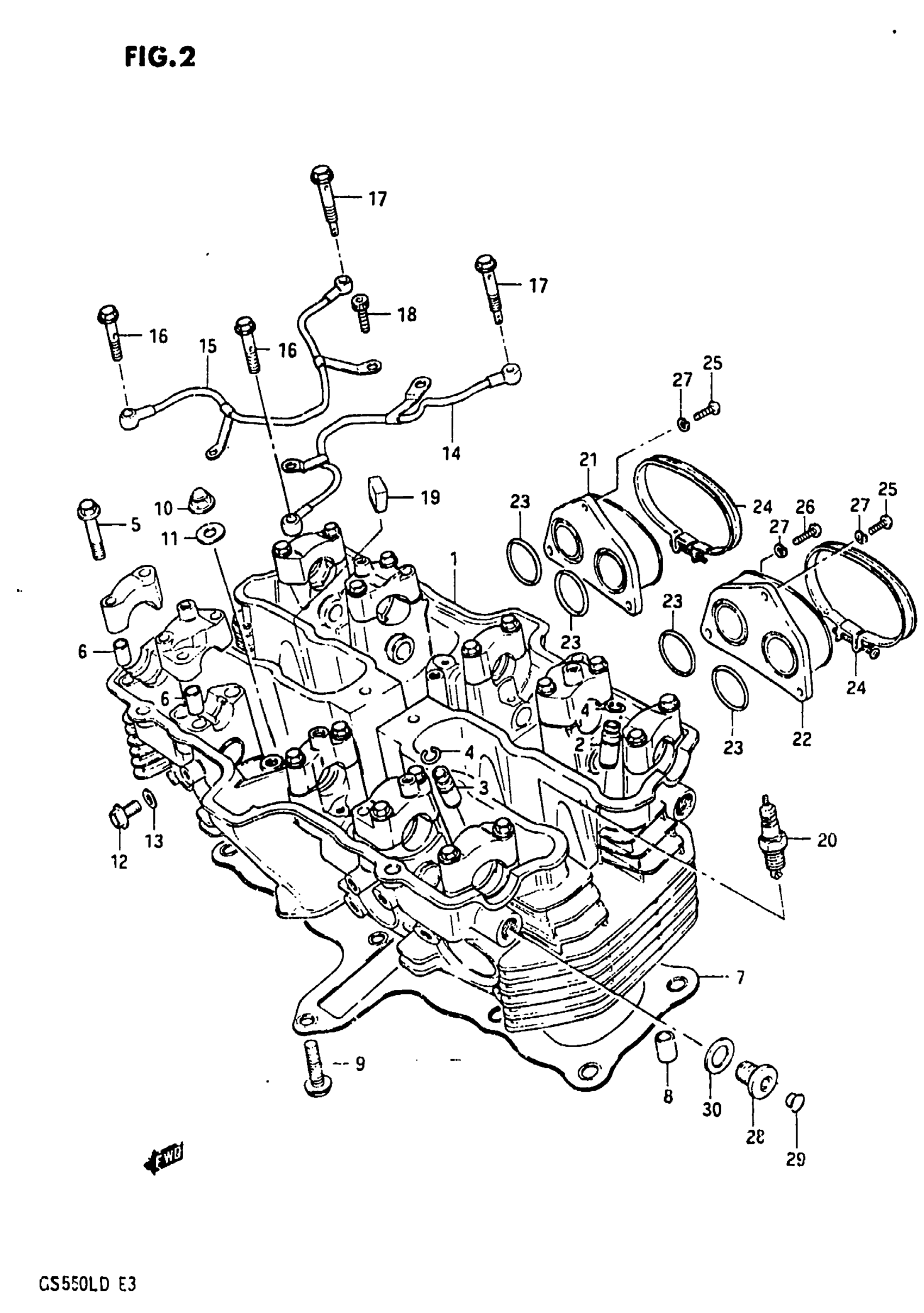

Find the part on the Cylinder Head diagram for your 1983 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS550L Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-43404.

11100-43406

1
Out of stock

2

GUIDE, VALVE (OS:0.3) This part replaces 11115-43470.

11116-06B70

8
Out of stock

3

GUIDE, VALVE (OS:0.3) This part replaces 11116-43470.

11116-06B70

8
Out of stock

4

.RING (10X85)

09381-10004

16
Out of stock

5

BOLT (6X39)

09103-06026

20
Out of stock

6

PIN

09206-08001

20
Out of stock

7

GASKET

11141-43403

1
Out of stock

8

PIN

04211-11189

2
Out of stock

9

BOLT This part replaces 01517-06254.

01550-0625A

1
Out of stock

10

NUT This part replaces 09159-08047.

09159-08049

12
Out of stock

11

GASKET

09168-08013

12
Out of stock

12

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

2
Out of stock

13

GASKET

09168-06018

2
Out of stock

14

PIPE, OIL CYLINDER LH

12961-43403

1
Out of stock

15

PIPE, OIL CYLINDER RH

12962-43403

1
Out of stock

16

UNION BOLT, EX

09360-06013

2
Out of stock

17

UNION BOLT, IN

12965-43400

2
Out of stock

18

BOLT This part replaces 09106-06025.

07130-06167

2
Out of stock

19

PAD, RUBBER

11252-25000

2
Out of stock

20

SPARK PLUG (NGK,DR9EA) This part replaces 09482-00184.

09482-00400

4
Out of stock

20

SPARK PLUG (ND,X27ES-U)

09482-00185

4
Out of stock

21

PIPE, INTAKE RH

13110-43500

1
Out of stock

22

PIPE, INTAKE LH

13120-43500

1
Out of stock

23

O RING This part replaces 09280-30004.

09280-30008

4
Out of stock

24

CLAMP This part replaces 09402-48401.

09402-48401-XC0

2
Out of stock

25

SCREW This part replaces 02112-06165.

02112-0616A

5
Out of stock

26

1

$1.55

In stock

27

6

$1.97

In stock

28

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

4
Out of stock

29

CAP

09250-08012

4
Out of stock

30

GASKET

09168-14004

4
Out of stock
