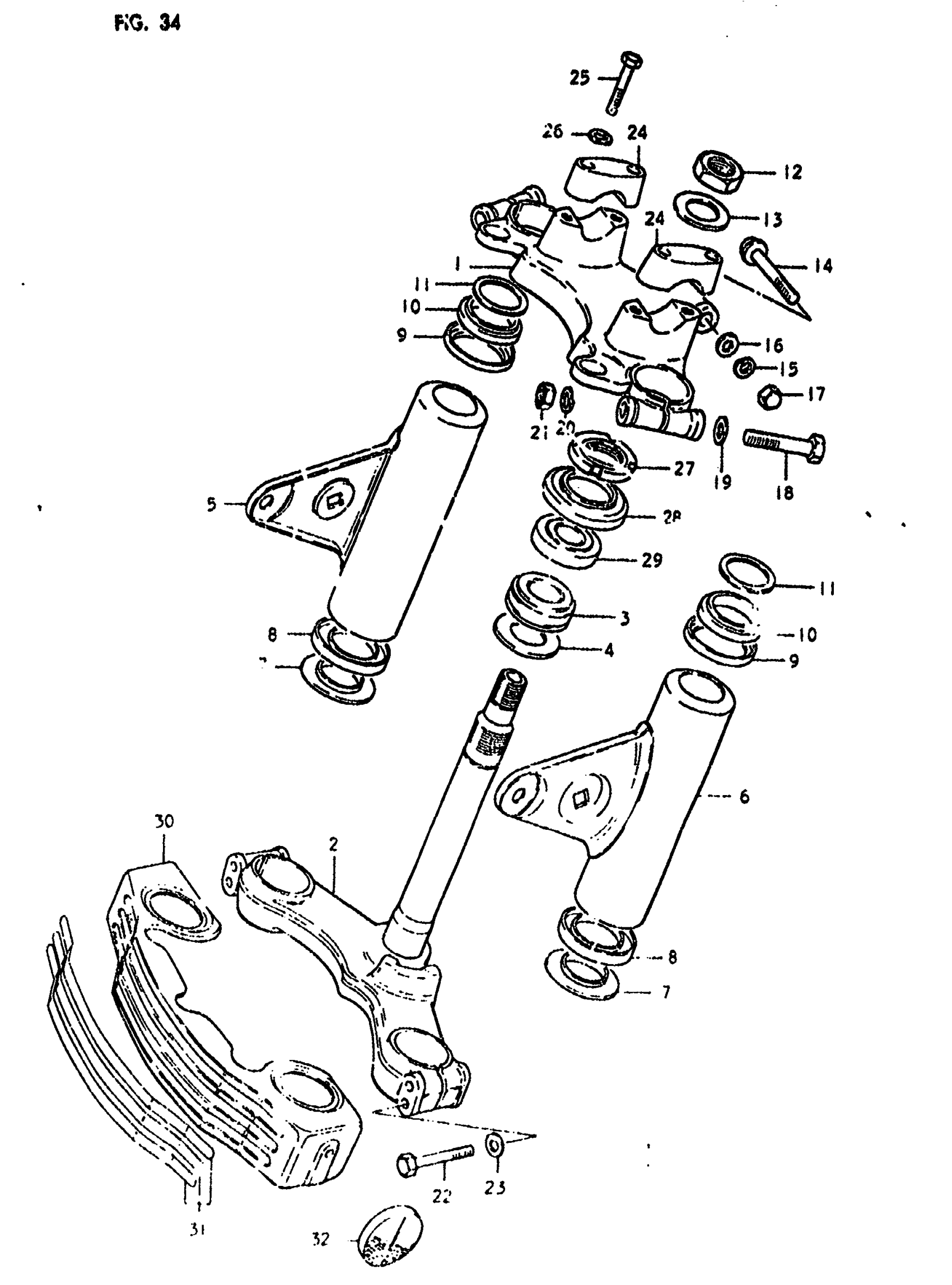

Suzuki GS550L (1980) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-47200-291

Unavailable

2

STEERING STEM | Includes Item(s) 3 - 4

51400-47811

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$52.22

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$2.81

5

BRACKET, HEADLAMP RH

51530-45200

Unavailable

6

BRACKET, HEADLAMP LH

51540-45201

Unavailable

7

SEAT

51551-31000

Unavailable

8

CUSHION, LOWER

51553-31000

Unavailable

9

CAP

51555-31000

Unavailable

10

CUSHION, UPPER

51556-31000

Unavailable

11

SEAT

51555-47200

Unavailable

12

NUT

51353-45000

Unavailable

13

WASHER

51356-31700

Unavailable

14

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.25

15

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.83

16

WASHER This part replaces 08322-11088.

08322-01087

$1.86

17

NUT This part replaces 08313-11085.

08313-1008B

$3.05

18

BOLT This part replaces 01107-10558.

01500-1055A

$3.25

19

WASHER This part replaces 08322-11058.

08322-01057

$1.86

20

LOCK WASHER This part replaces 08321-31105.

08321-0110A

$1.86

21

NUT This part replaces 08313-11105.

08313-1010A

$2.38

22

BOLT This part replaces 01107-08458.

01500-08453

$2.53

23

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.83

24

CLAMP, HANDLEBAR UPPER

56211-27200-291

$20.22

25

BOLT

01204-08357

$2.10

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

27

NUT, STEERING STEM

51631-28000

$19.60

28

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$13.92

29

BEARING

09265-25008

$61.43

30

COVER, FRONT FORK This part replaces 51871-49100.

51871-49102

Unavailable

31

EMBLEM

68200-49810

Unavailable

32

REFLEX REFLECTOR, FRONT

35950-49080

$16.24
