1980 Suzuki GS550L AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1980 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

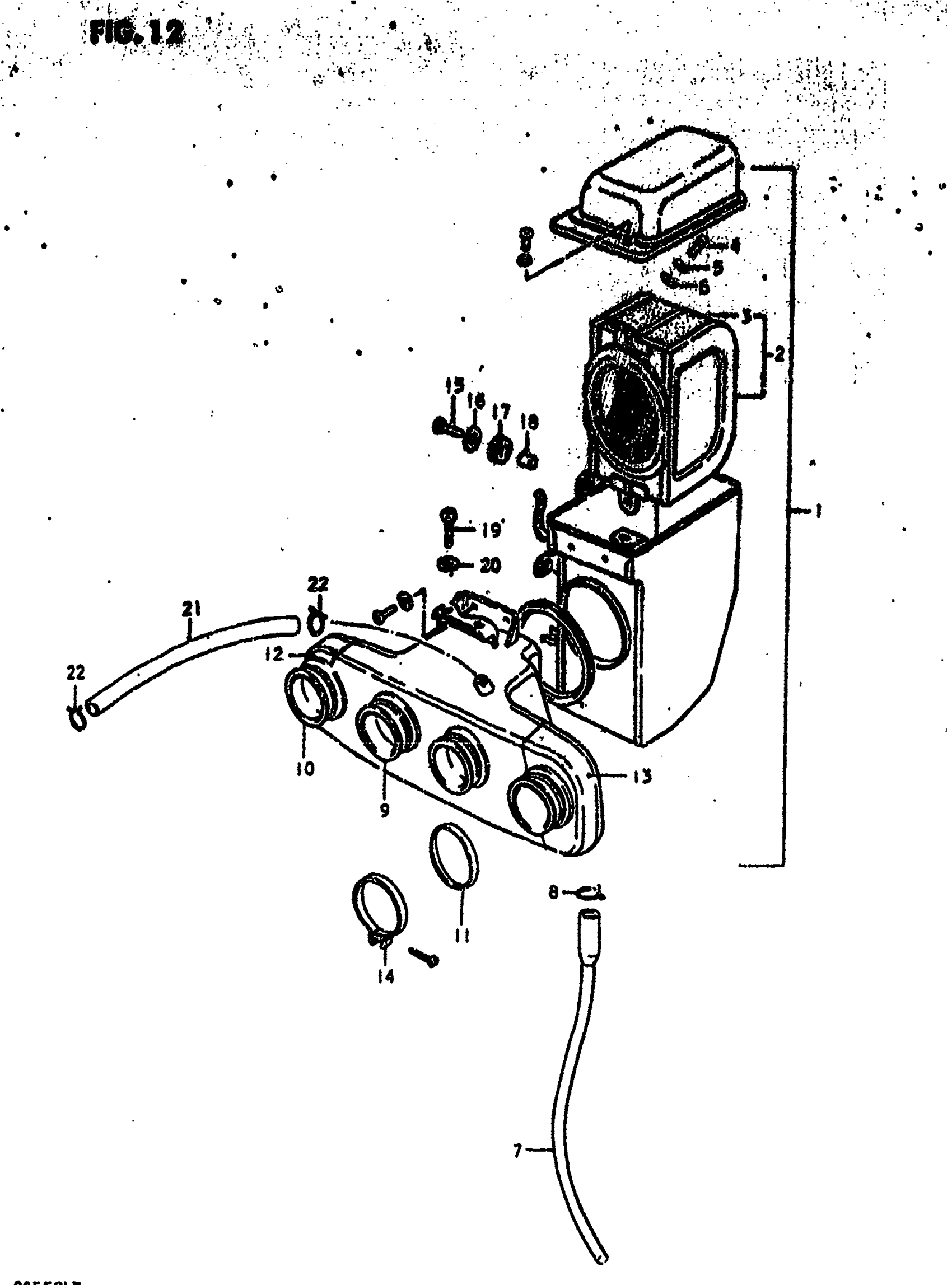

1980 Suzuki GS550L AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 14 This part replaces 13700-47050.

13700-47311

1
Out of stock

2

FILTER ASSY

13780-47040

1
Out of stock

3

ELEMENT

13781-47030

1
Out of stock

4

SCREW This part replaces 02112-05108.

02112-05107

1
Out of stock

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

6

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

7

TUBE,DRAIN This part replaces 13790-44010.

13870-11459

1
Out of stock

8

CLIP

09401-14301

1
Out of stock

9

TUBE, OUTLET A

13881-47030

2
Out of stock

10

TUBE, OUTLET B

13882-47030

2
Out of stock

11

RING

13885-47030

2
Out of stock

12

COVER, RH

13831-47050

1
Out of stock

13

COVER, LH

13832-47050

1
Out of stock

14

..CLAMP This part replaces 09402-60205.

09402-60208

4
Out of stock

15

BOLT | Includes Item(s) 16 This part replaces 01107-06208.

01500-06207

1
Out of stock

16

WASHER This part replaces 09160-06007.

09160-06084

1
Out of stock

17

1

$2.23

In stock

18

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

1
Out of stock

19

SCREW This part replaces 02112-06126.

02112-0612A

2
Out of stock

20

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

21

HOSE,11X15X2000 This part replaces 09343-11001.

09352-11154-00B

1
Out of stock

22

CLIP

09401-14301

2
Out of stock
