1979 Suzuki GS550L Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1979 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

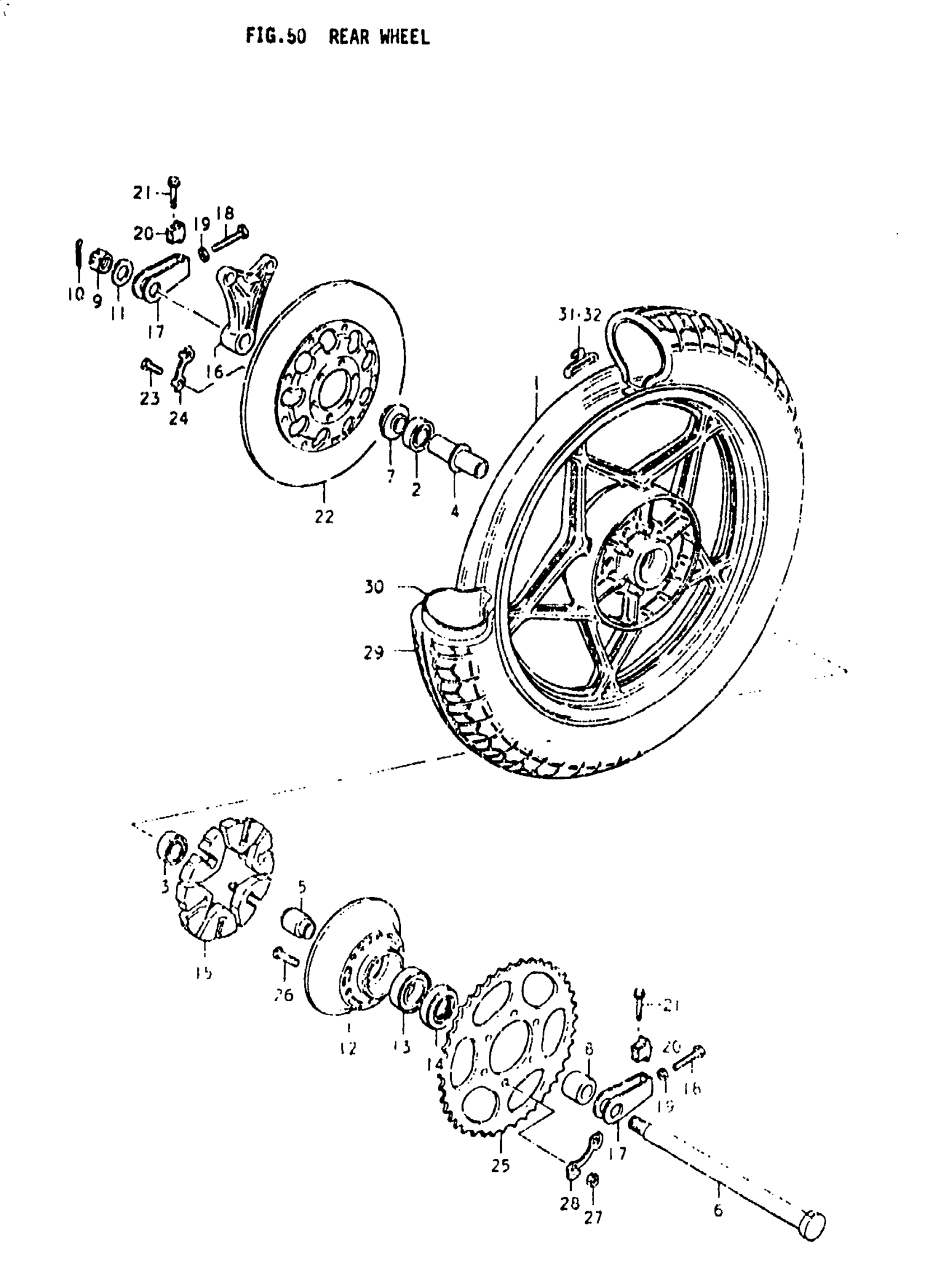

1979 Suzuki GS550L Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR | 2.15x18 This part replaces 64111-47602.

64111-49300-12U

1
Out of stock

2

BEARING, RH

08133-63037

1
Out of stock

3

BEARING, LH

08153-63037

1
Out of stock

4

SPACER, BEARING

64731-45000

1
Out of stock

5

HOLDER, BEARING

64733-47000

1
Out of stock

6

AXLE, REAR

64711-47000

1
Out of stock

7

NO DESCRIPTION AVAILABLE This part replaces 64740-47001.

64740-47002

1
Out of stock

8

SPACER, LH

09180-17048

1
Out of stock

9

NUT

09141-16001

1
Out of stock

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

11

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

12

DRUM, SPROCKET This part replaces 64611-31000.

64611-31003

1
Out of stock

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

1
Out of stock

14

OIL SEAL

09285-33001

1
Out of stock

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

6
Out of stock

16

BRACKET, NEAR CALIPERS

69721-47001

1
Out of stock

17

ADJUSTRER,CHAIN

61410-47200

2
Out of stock

18

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

19

2

$1.93

In stock

20

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

21

BOLT, LH This part replaces 01517-08508.

01550-08507

2
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 59210-18401.

59210-18402

1
Out of stock

23

BOLT

09100-08094

6
Out of stock

24

WASHER

09169-08016

3
Out of stock

25

SPROKET,REAR | NT:50

64511-47600

1
Out of stock

26

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

27

NUT This part replaces 08310-12108.

08310-00107

6
Out of stock

28

WASHER

09169-10007

3
Out of stock

29

NO DESCRIPTION AVAILABLE | 3.75H18 This part replaces 65100-47035.

65100-47600

1
Out of stock

30

TUBE,INNER | 3.75-18

65200-49015

1
Out of stock

31

BALANCER, S | (0~3)

55411-47001

1
Out of stock

32

BALANCER, L | (0~3)

55412-47001

1
Out of stock
