1979 Suzuki GS550L Front Caripers Diagram

← All diagrams

Find the part on the Front Caripers diagram for your 1979 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

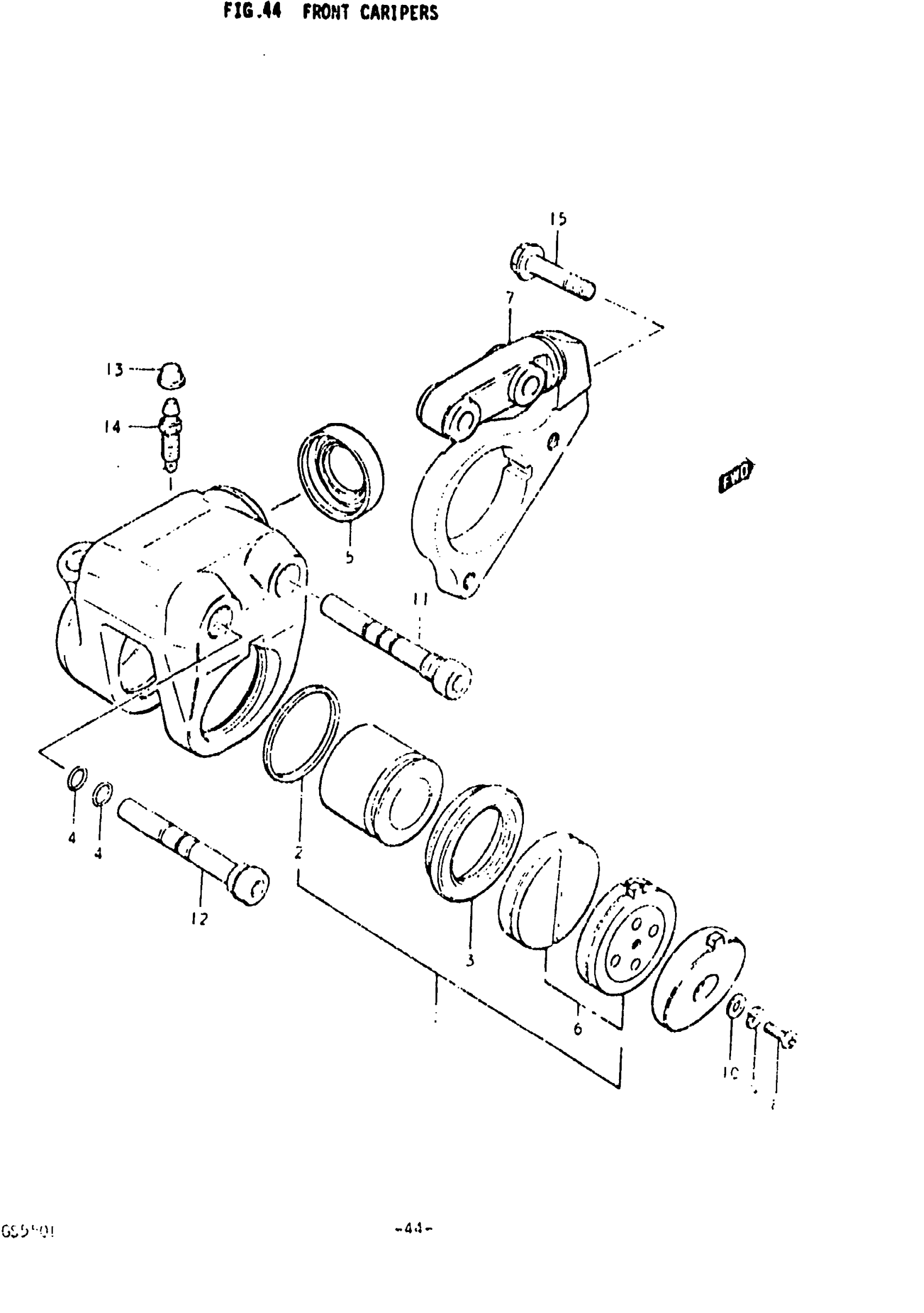

1979 Suzuki GS550L Front Caripers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CALIPERS ASSY | ASCO; Includes Item(s) 1 - 14

59300-45050

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 59100-47870.

59100-47871

1
Out of stock

3

BOOT, PISTON

59108-45020

—
Out of stock

2

PISTON SEAL This part replaces 59307-45020.

59307-45021

2
Out of stock

4

O RING

59111-34020

2
Out of stock

5

BOOT, HOLDER

59112-34020

1
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces 59300-47850.

59300-47880

1
Out of stock

7

HOLDER, CALIPERS

59350-47050

1
Out of stock

8

SCREW

02112-05107

1

$1.52

In stock

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

10

1

$2.33

In stock

11

AXLE, CALIPERS NO. 1

59305-45020

1
Out of stock

12

AXLE, CALIPERS NO. 2

59306-45020

1
Out of stock

13

1

$5.15

In stock

14

1

$15.07

In stock

15

2

$5.10

In stock
