1986 Suzuki GS550EF Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1986 Suzuki GS550EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

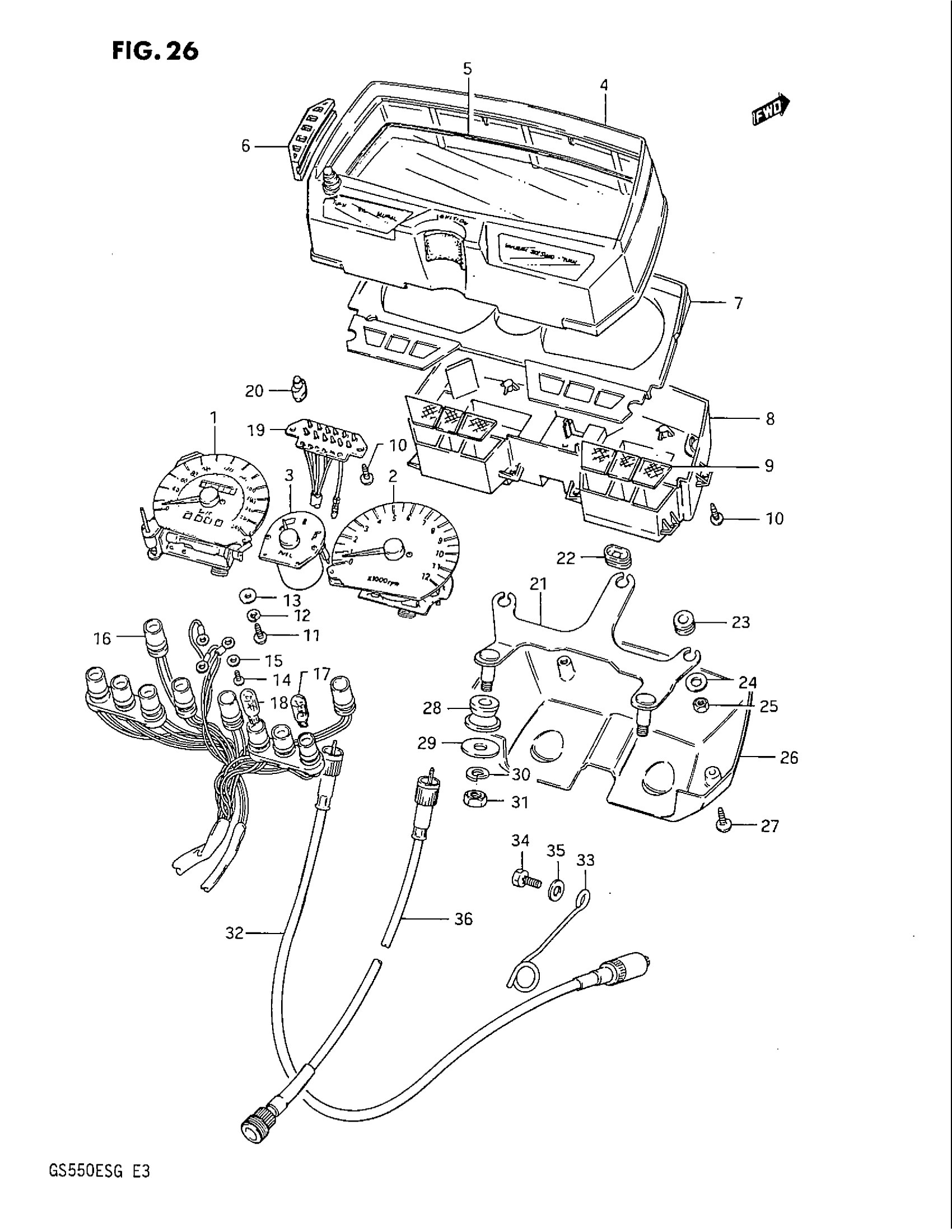

1986 Suzuki GS550EF Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO)

34120-43431

1
Out of stock

2

TACHOMETER

34220-43482

1
Out of stock

3

FUELMETER

34320-43410

1
Out of stock

4

HOOD, METER

34150-43410

1
Out of stock

5

GLASS

34112-43410

1
Out of stock

6

CUSHION

34189-43410

2
Out of stock

7

PLATE, WINDOW

34153-43410

1
Out of stock

8

CASE, METER

34111-43410

1
Out of stock

9

LENS SET, PILOT

36300-43810

1
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 36456-34510.

09132-03501

11
Out of stock

11

SCREW This part replaces 02112-03108.

02112-03107

4
Out of stock

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

4
Out of stock

13

WASHER This part replaces 08322-21038.

08322-01037

4
Out of stock

14

SCREW This part replaces 02112-03068.

02112-0306B

3
Out of stock

15

WASHER This part replaces 08322-21038.

08322-01037

3
Out of stock

16

SOCKET

34170-43410

1
Out of stock

17

BULB (12V,3.4W)

09471-12082

9
Out of stock

18

BULB (12V,1.7W)

09471-12077

1
Out of stock

19

SOCKET, GEAR INDICATOR

36453-43410

1
Out of stock

20

BULB

09471-12071

6
Out of stock

21

BRACKET, METER

34950-43410

1
Out of stock

22

CUSHION, NO.1

34995-45720

1
Out of stock

23

.CUSHION

34996-43410

2
Out of stock

24

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

3
Out of stock

25

NUT This part replaces 08310-22058.

08310-00057

3
Out of stock

26

COVER, LOWER

34193-43410

1
Out of stock

27

SCREW This part replaces 03112-04125.

03111-0412A

4
Out of stock

28

CUSHION

34956-31001

2
Out of stock

29

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

2
Out of stock

30

2

$1.99

In stock

31

NUT This part replaces 08310-11085.

08310-0008A

2
Out of stock

32

CABLE ASSY,SPEE This part replaces 34910-43410.

34910-09D10

1
Out of stock

33

GUIDE, METER CABLE

34938-45100

1
Out of stock

34

1

$2.10

In stock

35

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

36

CABLE, TACHOMETER

34940-44311

1
Out of stock
