1986 Suzuki GS550EF Rear Swinging Arm Diagram

← All diagrams

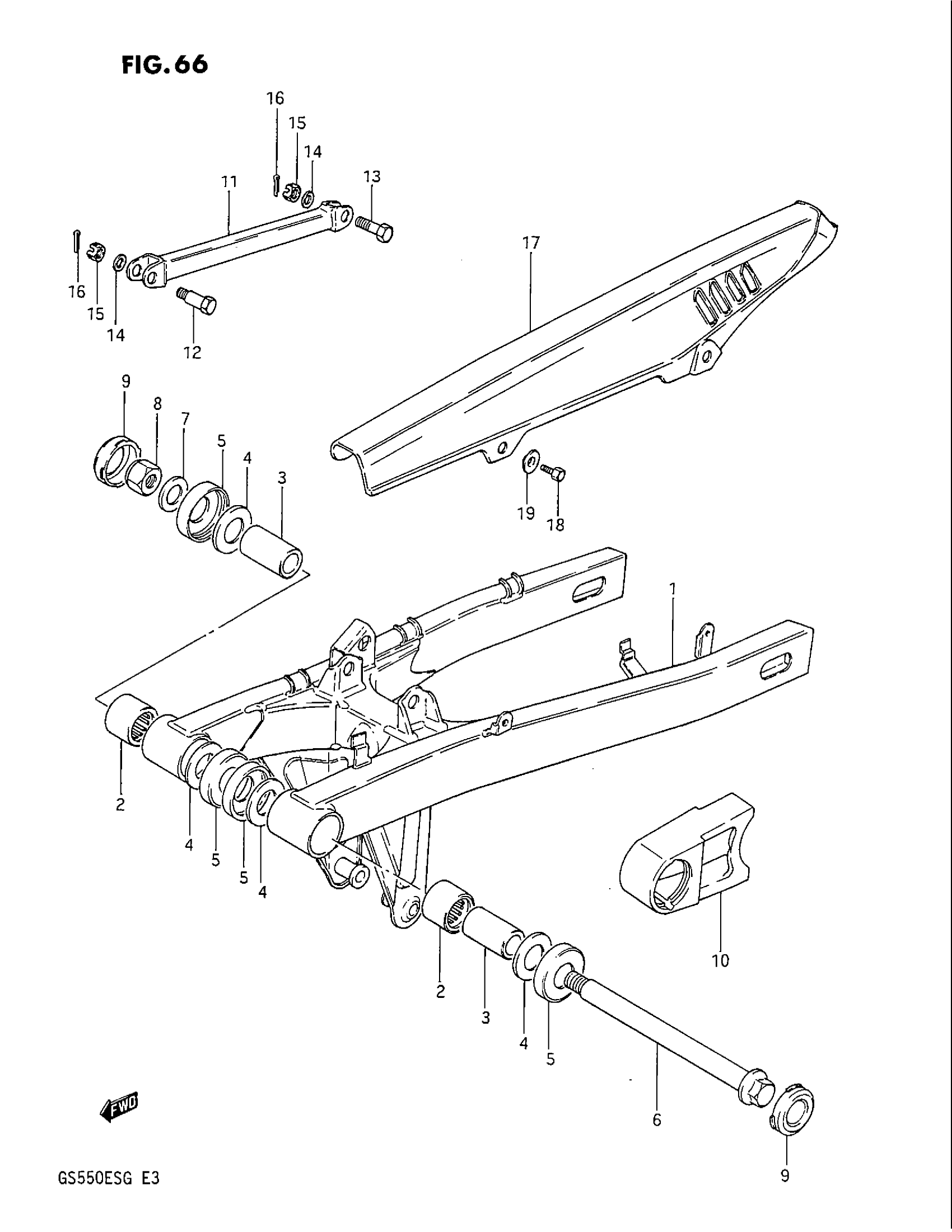

Find the part on the Rear Swinging Arm diagram for your 1986 Suzuki GS550EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS550EF Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM SET (SELVER) | Includes Item(s) 2

61000-43400-13L

1
Out of stock

2

BEARING

09263-25024

2
Out of stock

3

SPACER

61251-43400

2
Out of stock

4

WASHER

08211-16381

4
Out of stock

5

COVER, DUST SEAL

61262-49000

4
Out of stock

6

SHAFT, PIVOT

61211-43400

1
Out of stock

7

WASHER This part replaces 08322-11148.

08322-01147

1
Out of stock

8

NUT This part replaces 09159-14013.

09159-14019

1
Out of stock

9

CAP, PIVOT

61222-43400

2
Out of stock

10

BUFFER, CHAIN DEFENSE

61273-43401

1
Out of stock

11

TORQUE LINK, REAR (BLACK)

64310-33400-291

1
Out of stock

12

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

1
Out of stock

13

BOLT, REAR

09101-10031

1
Out of stock

14

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

2
Out of stock

15

NUT This part replaces 08314-41108.

08314-4010B

2
Out of stock

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

17

CHAIN CASE

61311-43400

1
Out of stock

18

BOLT This part replaces 01107-06105.

01500-0610B

2
Out of stock

19

WASHER, FRONT

09169-06026

2
Out of stock
