1986 Suzuki GS550EF Rear Combination Lamp Diagram

← All diagrams

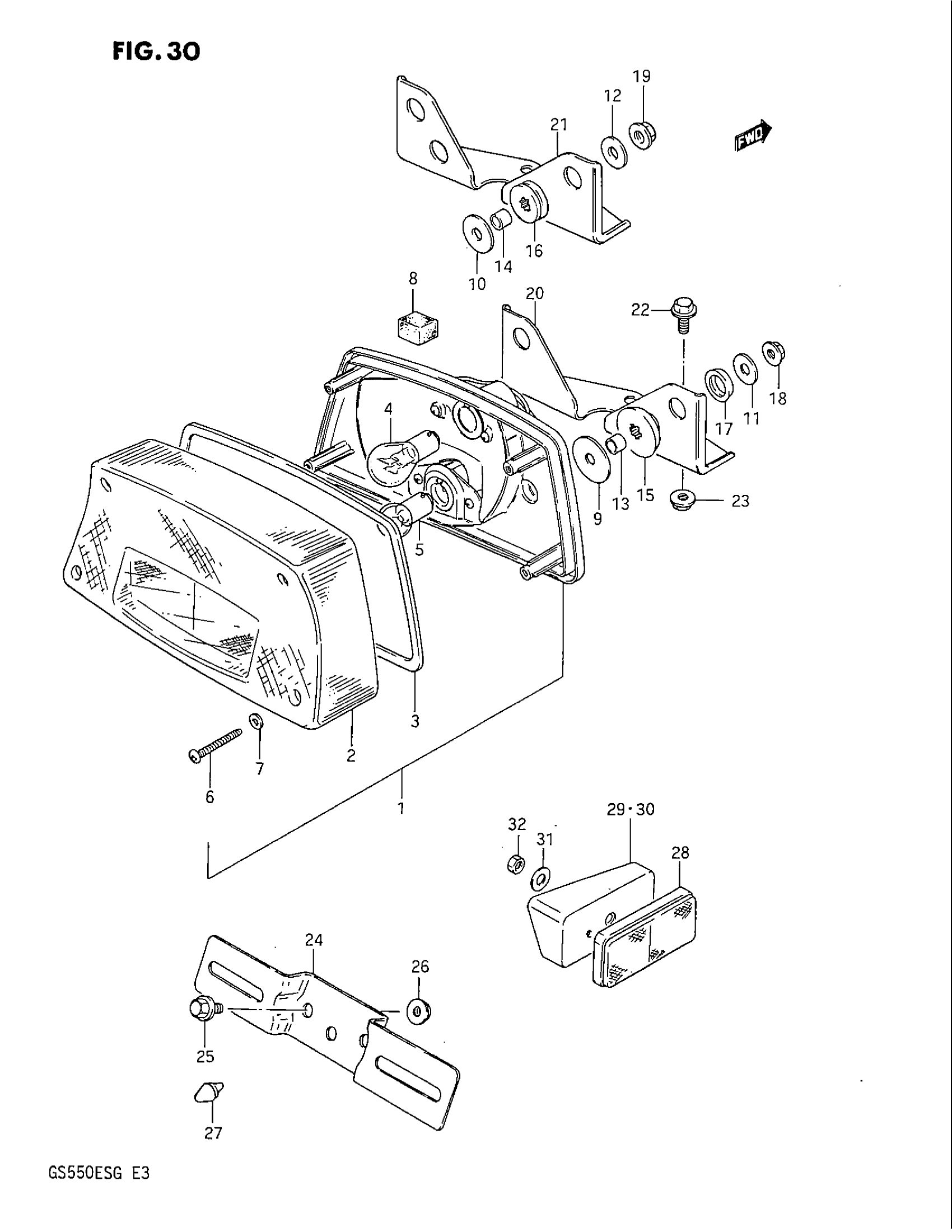

Find the part on the Rear Combination Lamp diagram for your 1986 Suzuki GS550EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS550EF Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | MODEL E/F This part replaces 35710-43430.

35710-43431

1
Out of stock

1

LAMP ASSY, REAR COMBINATION | MODEL G; Includes Item(s) 2 - 8

35710-43431

1
Out of stock

2

LENS

35712-43430

1
Out of stock

3

GASKET

35713-43410

1
Out of stock

4

BULB (12V,32/3CP)

09471-12084

1
Out of stock

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

1
Out of stock

6

SCREW This part replaces 03211-04256.

03211-0425B

4
Out of stock

7

GASKET

35627-43010

4

$2.65

In stock

8

RUBBER This part replaces 35733-06400.

45562-44410

1
Out of stock

9

WASHER (6.5X30X1.2) | MODEL E/F

09160-06071

2
Out of stock

10

WASHER (6.5X20X1.6) | MODEL G This part replaces 09160-06020.

09160-06066

3
Out of stock

11

WASHER | MODEL E/F This part replaces 09160-06012.

09160-06054

2
Out of stock

12

WASHER | MODEL G This part replaces 09160-06012.

09160-06054

3
Out of stock

13

SPACER,7.2X10X1 | MODEL E/F This part replaces 09180-06006.

09180-07019

2
Out of stock

14

SPACER (6.6X9X9.5) | MODEL G

35766-26470

3
Out of stock

15

CUSHION | MODEL E/F

09320-09012

2
Out of stock

16

CUSHION | MODEL G

35765-35300

3
Out of stock

17

CUSHION | MODEL E/F

09320-14010

2
Out of stock

18

NUT | MODEL E/F This part replaces 08316-26066.

08316-1006B

2
Out of stock

19

NUT | MODEL G This part replaces 08316-26066.

08316-1006B

3
Out of stock

20

BRACKET, TAIL LAMP | MODEL E/F This part replaces 35726-43400.

35726-43401

1
Out of stock

21

BRACKET, TAIL LAMP | MODEL G

35726-43401

1
Out of stock

22

BOLT

01517-06166

3
Out of stock

23

NUT This part replaces 08316-26066.

08316-1006B

3
Out of stock

24

BRACKET, LICENSE PLATE This part replaces 35927-43430.

35927-27A30

1
Out of stock

25

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

2
Out of stock

26

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

27

CUSHION, LICENCE PLATE

09321-06023

1
Out of stock

28

NO DESCRIPTION AVAILABLE This part replaces 35970-43430.

35970-02130

2
Out of stock

29

SPACER, RH

35977-43430

1
Out of stock

30

SPACER, LH

35978-43430

1
Out of stock

31

WASHER

09160-05013

2
Out of stock

32

NUT This part replaces 08310-11056.

08310-0005A

2
Out of stock
