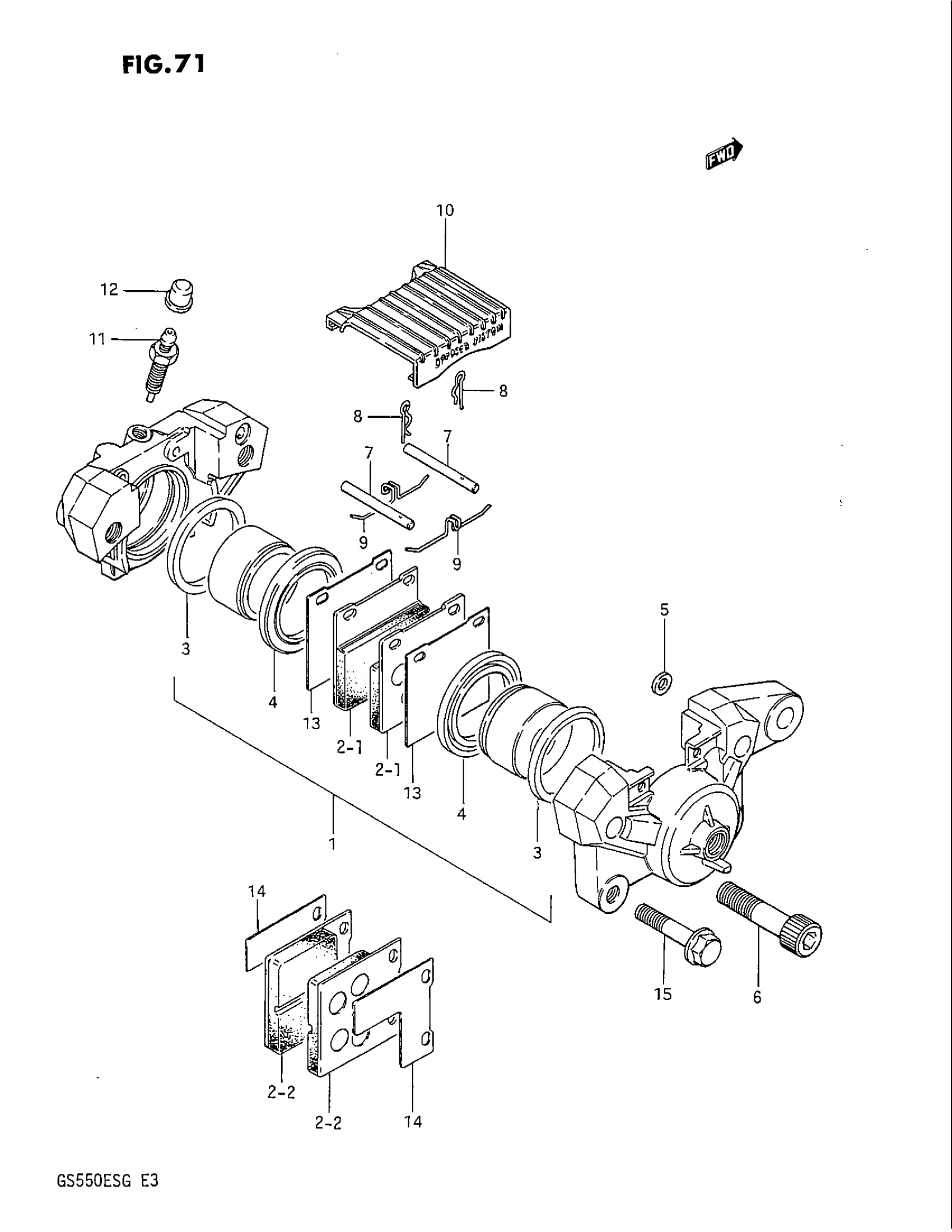

Suzuki GS550EF (1986) REAR CALIPERS Diagram

#

Description
Price

CALIPERS ASSY, REAR | GS550ES3/ESE

69100-33400

Unavailable

CALIPERS ASSY, REAR | MODEL F/G; Includes Item(s) 1 - 14

69100-33420

Unavailable

1

PISTON SET | GS550ES3/ESE This part replaces 69100-16810.

69100-27821

$101.26

1

PISTON SET | MODEL F/G This part replaces 69100-16830.

69100-27821

$101.26

2

PAD SET, BRAKE | GS550ES3/ESE This part replaces 59130-16700.

59100-16820

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 59130-16730.

59100-16830

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.30

4

BOOT, PISTON

59108-16700

$8.85

5

SEAL

69107-34200

$9.80

6

BOLT This part replaces 69145-34200.

59145-05C50

$7.51

7

PIN

69141-45000

$4.86

8

.CLIP, PAD PIN

69142-45000

$3.97

9

SPRING

59143-16700

$5.30

10

COVER This part replaces 59151-16700.

59151-16701

$12.58

11

BLEEDER

59121-18410

$7.99

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.73

13

SHIM | GS550ES3/ESE

59371-33410

$16.68

14

SHIM | MODEL F/G

59371-33420

$17.08

15

BOLT This part replaces 01517-08305.

01550-0830A

$2.80
