1986 Suzuki GS550EF Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1986 Suzuki GS550EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

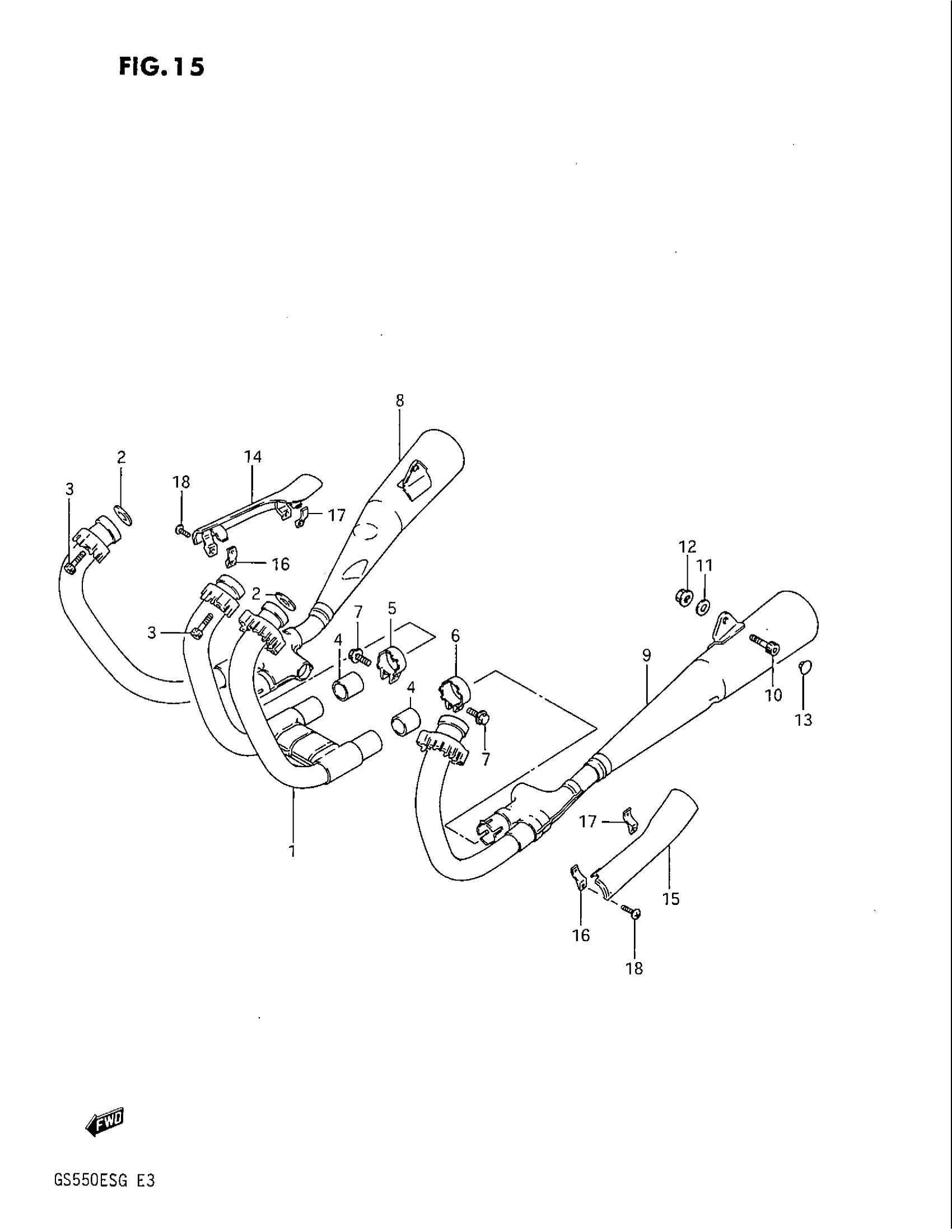

1986 Suzuki GS550EF Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST ASSY, CENTER

14100-43400-H01

1
Out of stock

2

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

4
Out of stock

3

BOLT,8X38 This part replaces 09106-08036.

09106-08036-XC0

8
Out of stock

4

CONNECTOR,MUFLR This part replaces 14771-47020.

14771-47020-H17

2
Out of stock

5

CLAMP, RH This part replaces 14459-34300.

14459-34200

1
Out of stock

6

CLAMP, LH This part replaces 14469-34300.

14469-34200

1
Out of stock

7

2

$2.48

In stock

8

MUFFLER ASSY, RH | MODEL F This part replaces 14305-43440-H01.

14305-43441-H01

1
Out of stock

8

MUFFLER ASSY, RH | MODEL G

14305-43441-H01

1
Out of stock

9

MUFFLER ASSY, LH | MODEL F This part replaces 14306-43440-H01.

14306-43441-H01

1
Out of stock

9

MUFFLER ASSY, LH | MODEL G

14306-43441-H01

1
Out of stock

10

BOLT

09106-10015

2
Out of stock

11

WASHER

09160-10005

2

$2.16

In stock

12

2

$2.20

In stock

13

CAP

43575-34500

2

$2.16

In stock

14

COVER, MUFFLER RH

14780-43402

1
Out of stock

15

COVER, MUFFLER LH

14790-43402

1
Out of stock

16

CLAMP This part replaces 14785-31301.

14785-31310

2
Out of stock

17

CLAMP This part replaces 14785-43400.

14785-15500

2
Out of stock

18

4

$2.87

In stock
