1986 Suzuki GS550EF Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1986 Suzuki GS550EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

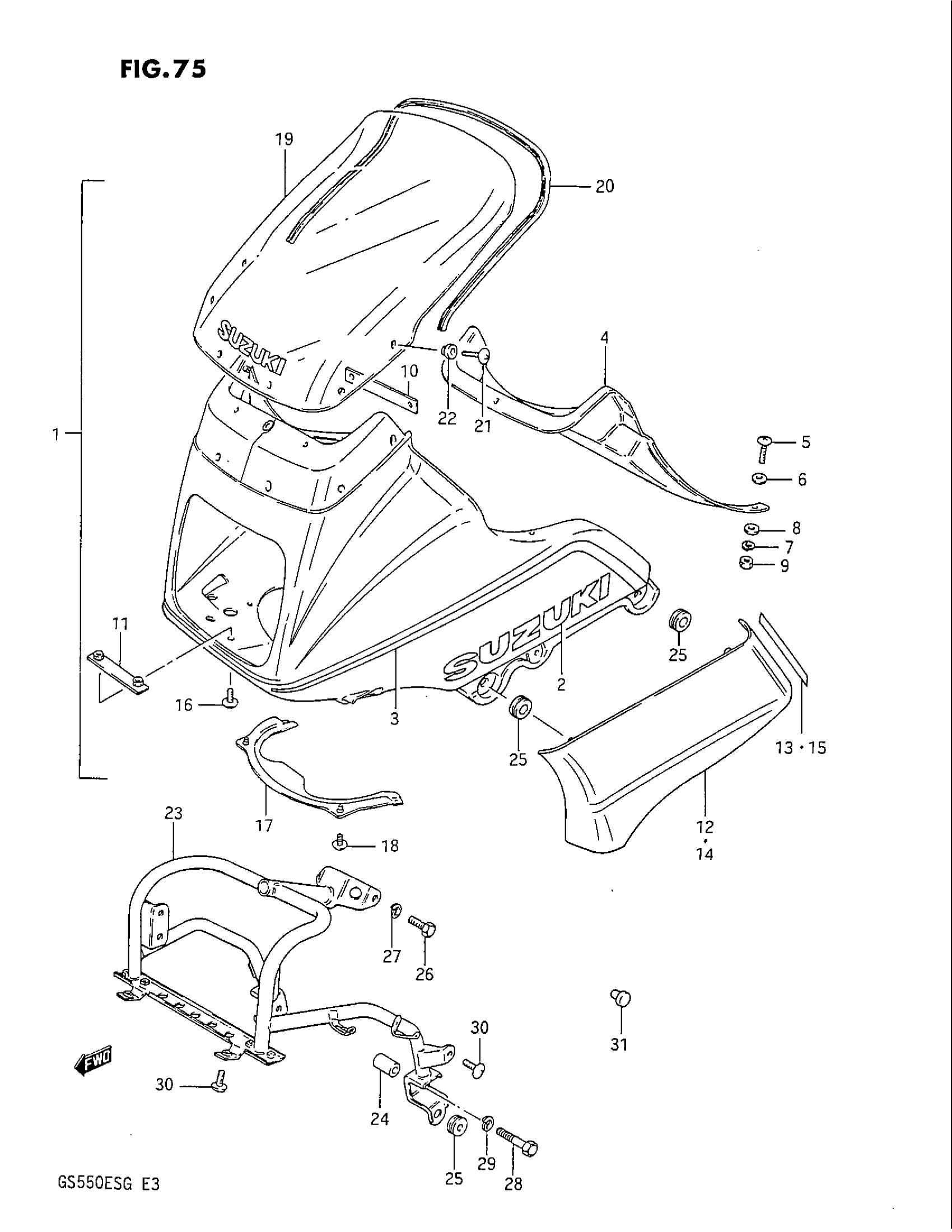

1986 Suzuki GS550EF Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 94700-43460-7JH.

94700-43470-7JH

1
Out of stock

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 11 This part replaces 94700-43460-7JK.

94700-43470-7JK

1
Out of stock

2

EMBLEM | FOR 7JH

68111-43400-064

2
Out of stock

2

EMBLEM | FOR 7JK

68111-43400-22R

2
Out of stock

3

TAPE SET | FOR 7JH

68190-43440-019

1
Out of stock

3

TAPE SET | FOR 7JK

68190-43440-064

1
Out of stock

4

PANEL, UPPER

94422-43400

1
Out of stock

5

SCREW This part replaces 02142-05165.

02142-0516A

5
Out of stock

6

5

$1.97

In stock

7

LOCK WASHER This part replaces 08321-21055.

08321-0105A

5
Out of stock

8

5

$1.97

In stock

9

NUT This part replaces 08310-12055.

08310-0005A

5
Out of stock

10

BRACE, UPPER

94416-43400

1
Out of stock

11

BRACE

94420-43400

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 94450-43400-7JH.

94430-43400

1
Out of stock

12

COVER, RH (BLACK/RED) | Includes Item(s) 13 - 13

94450-43400-7JK

1
Out of stock

13

TAPE SET, RH | FOR 7JH

68680-43450-019

1
Out of stock

13

TAPE SET, RH | FOR 7JK

68680-43450-064

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 94460-43400-7JH.

94440-43400

1
Out of stock

14

COVER, LH (BLACK/RED) | Includes Item(s) 15 - 15

94460-43400-7JK

1
Out of stock

15

TAPE SET, LH | FOR 7JH

68690-43450-019

1
Out of stock

15

TAPE SET, LH | FOR 7JK

68690-43450-064

1
Out of stock

16

SCREW, RH & LH

02142-05127

2
Out of stock

17

NO DESCRIPTION AVAILABLE This part replaces 94480-43400.

94480-43410

1
Out of stock

18

SCREW This part replaces 02142-05165.

02142-0516A

2
Out of stock

19

WINDOW

94611-43431

1
Out of stock

20

MOLDING This part replaces 94631-43400.

94631-44110

1
Out of stock

21

SCREW This part replaces 02142-05164.

02142-0516A

6
Out of stock

22

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

6
Out of stock

23

BRACE

94510-43400

1
Out of stock

24

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

2
Out of stock

25

CUSHION

09320-08018

6
Out of stock

26

2

$2.68

In stock

27

2

$1.99

In stock

28

BOLT This part replaces 01107-08455.

01500-08453

2
Out of stock

29

2

$1.99

In stock

30

SCREW This part replaces 02142-06125.

02142-0612A

6
Out of stock

31

PLUG This part replaces 09250-06007.

09250-06005

4
Out of stock

31

CAP This part replaces 09250-05006.

09250-05007

6
Out of stock
