1983 Suzuki GS550E Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1983 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

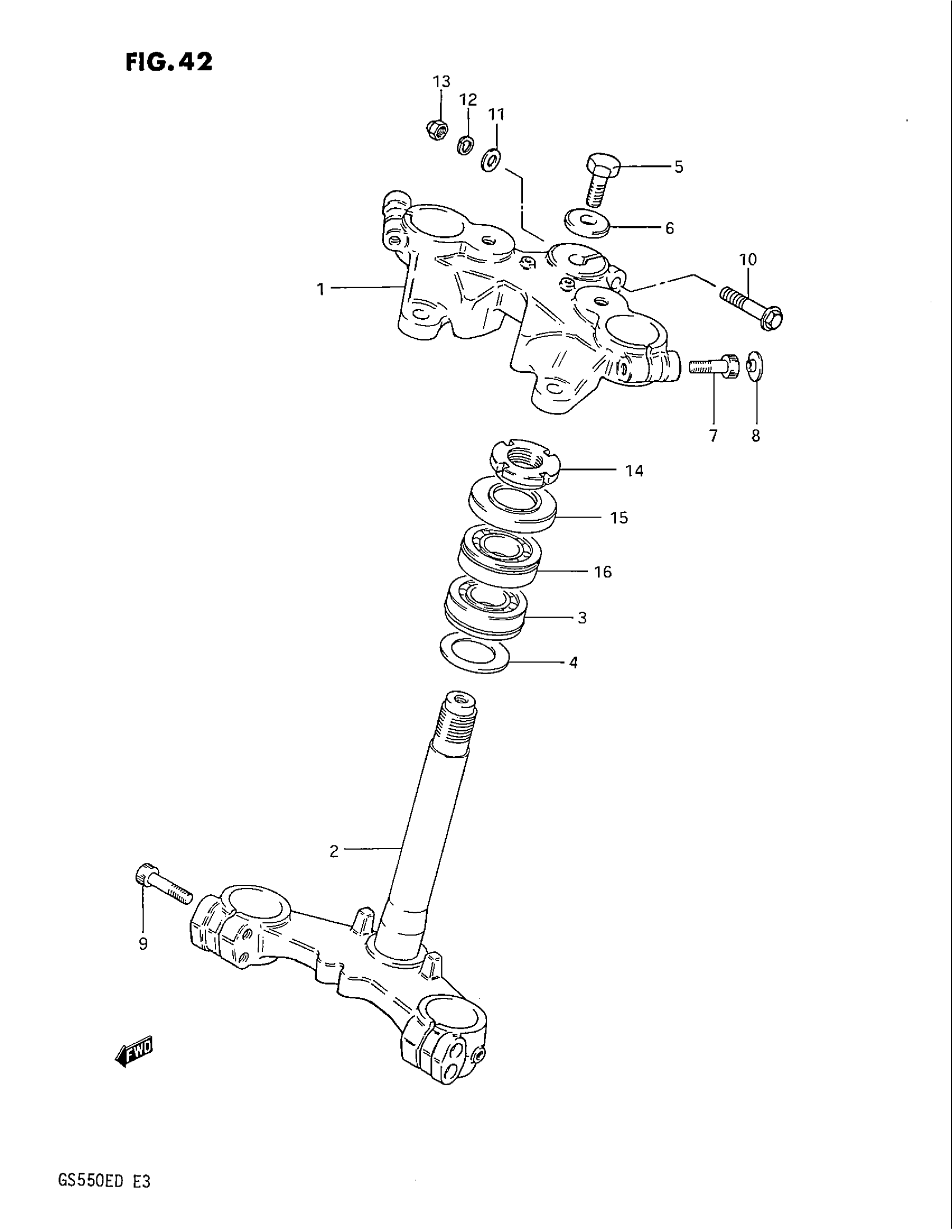

1983 Suzuki GS550E Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM HEAD, STEERING (BLACK)

51311-43400-15T

1
Out of stock

2

STEM, STEERING (BLACK) | Includes Item(s) 3 - 4 This part replaces 51410-43400-15T.

51410-43420-15T

1
Out of stock

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

1
Out of stock

5

BOLT This part replaces 51353-49300.

51352-31305

1
Out of stock

6

WASHER This part replaces 51356-49300.

51356-43530

1
Out of stock

7

BOLT

07112-10355

2
Out of stock

8

CAP

09250-08010

2
Out of stock

9

BOLT, STEERING DAMPER This part replaces 07112-08305.

07130-0830A

4
Out of stock

10

BOLT This part replaces 01517-08505.

01550-0850B

1
Out of stock

11

WASHER This part replaces 08322-11085.

08322-0108A

1
Out of stock

12

1

$1.99

In stock

13

NUT This part replaces 08313-11085.

08313-1008B

1
Out of stock

14

NUT, STEERING STEM

51631-34200

1
Out of stock

15

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock

16

BEARING, STEERING UPPER

09265-25008

1
Out of stock
