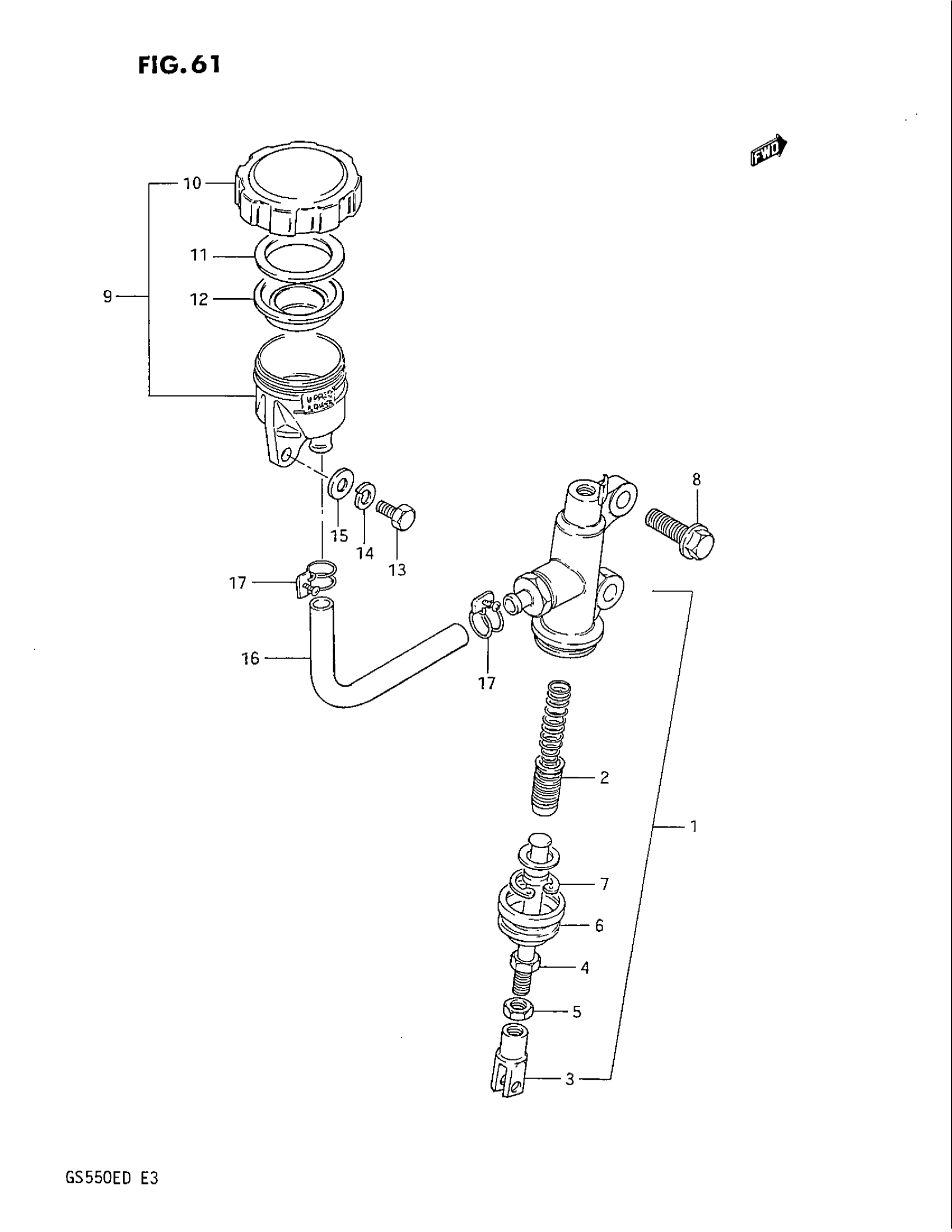

Suzuki GS550E (1983) REAR MASTER CYLINDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 69600-43400.

69600-43401

Unavailable

2

PISTON & CUP SET

69600-34810

$63.75

3

YOKE

69692-34300

Unavailable

4

ROD, PUSH This part replaces 69670-31300.

69670-31301

Unavailable

5

NUT This part replaces 69693-34300.

69693-05A00

$1.86

6

BOOT

69691-45001

$5.38

7

CIRCLIP

51162-70040

$3.67

8

BOLT This part replaces 01527-08255.

01550-0825A

$2.31

9

TANK ASSY,RR RS | Includes Item(s) 10 - 12 This part replaces 69740-34230.

69740-31D00

Unavailable

10

CAP This part replaces 59669-33603.

59669-07D00

$35.80

11

PLATE, DIAPHRAGM

59668-18441

$4.26

12

DIAPHRAGM

59667-18441

$9.41

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

15

WASHER This part replaces 08322-21068.

08322-01067

$1.86

16

HOSE

69731-43401

Unavailable

17

CLAMP This part replaces 09400-16302.

09400-16304

$2.84
