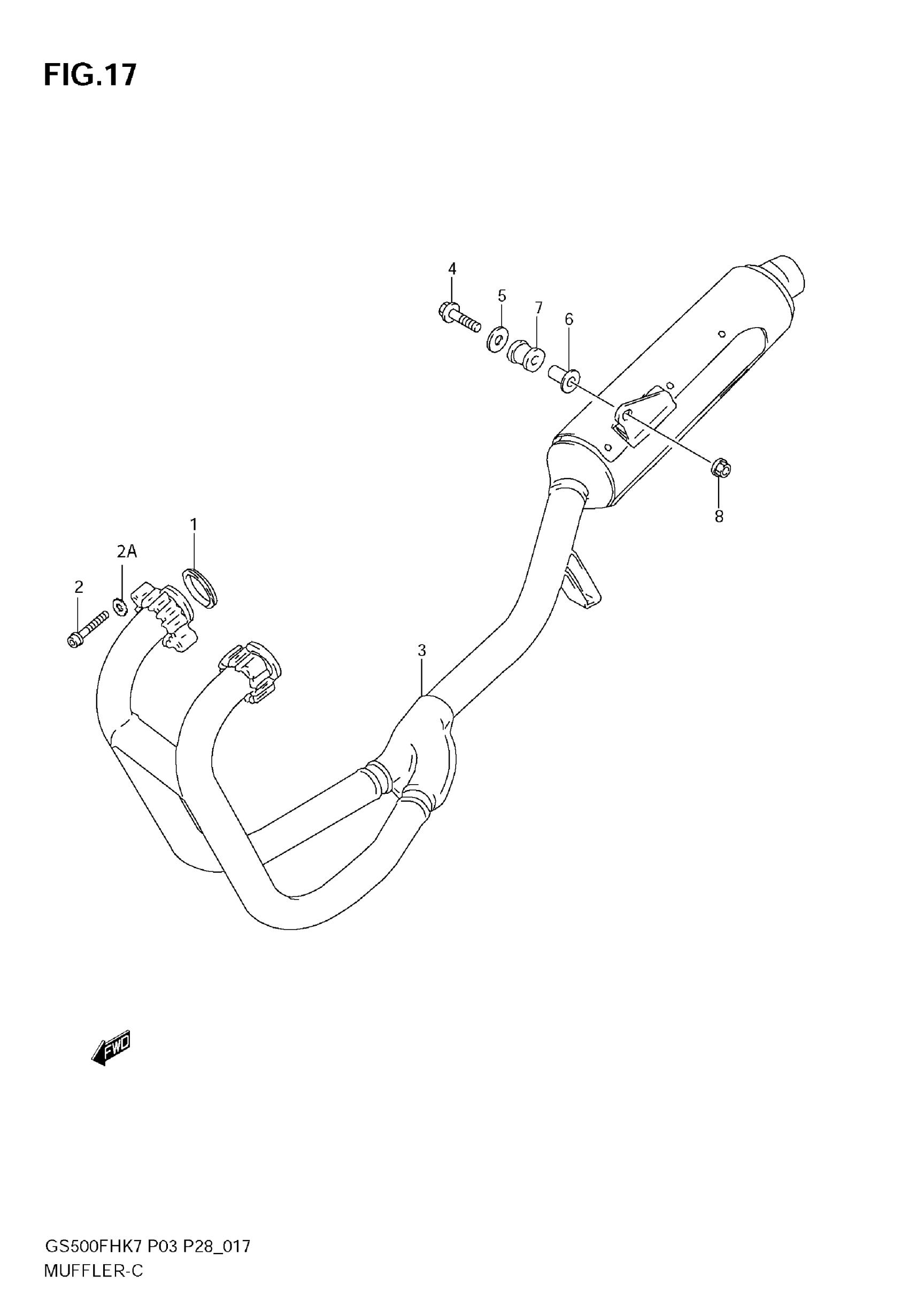

Suzuki GS500F (2009) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-01D00

$6.51

2

BOLT This part replaces D7109-0840B.

07120-0840B

$3.50

2A

WASHER

D8322-0108B

Unavailable

3

MUFFLER ASSY

14301-01DE0-E02

Unavailable

4

BOLT

09103-08392

$3.41

5

WASHER (8.5X28X1.6)

09160-08136

$3.05

6

SPACER (8.6X12X20.1)

09180-08152

$5.26

7

CUSHION

09320-12048

$4.62

8

NUT

08316-1008B

$2.65
