2009 Suzuki GS500F Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2009 Suzuki GS500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

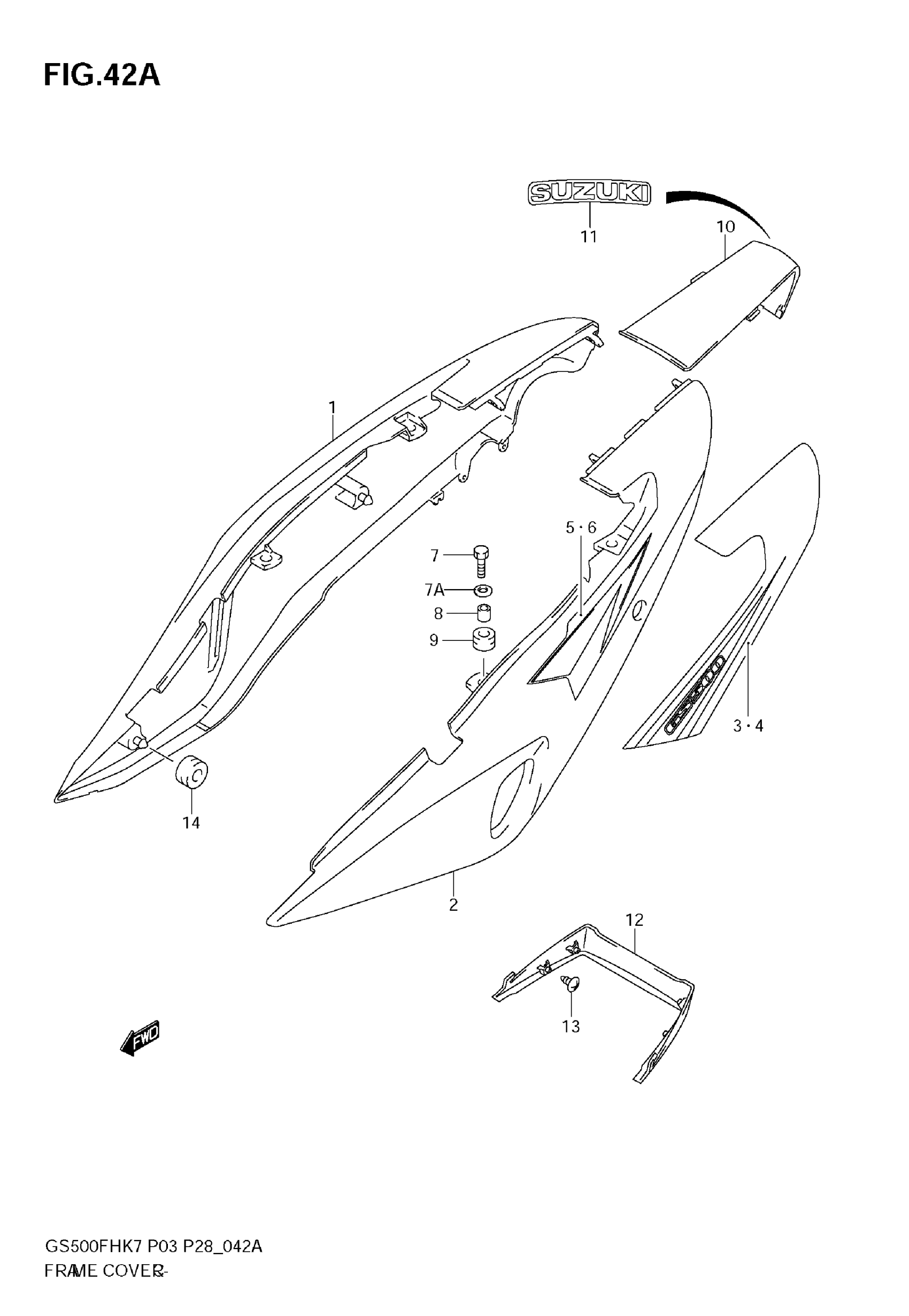

2009 Suzuki GS500F Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME RH | NOT FOR US MARKET This part replaces 47111-01DA0-YAY.

47111-01DA0-NE2

1
Out of stock

1

COVER, FRAME RH (WHITE) | FOR CWH

47111-01DA0-YBD

1
Out of stock

1

COVER,FRAME RH | FOR EPV This part replaces 47111-01DA0-YD8.

47111-01DA0-NE2

1
Out of stock

2

COVER,FRAME | NOT FOR US MARKET This part replaces 47211-0BE00-YAY.

47211-0BE00-NE2

1
Out of stock

2

COVER, FRAME LH (WHITE) | FOR CWH

47211-0BE00-YBD

1
Out of stock

2

COVER, FRAME LH (SILVER) | FOR EPV

47211-0BE00-YD8

1
Out of stock

3

TAPE, RH | NOT FOR US MARKET

68135-01DH0-EBD

1
Out of stock

3

TAPE, RH | NOT FOR US MARKET

68135-01DH0-EBE

—
Out of stock

4

TAPE, LH | NOT FOR US MARKET

68145-01DH0-EBD

1
Out of stock

4

TAPE, LH | NOT FOR US MARKET

68145-01DH0-EBE

—
Out of stock

5

TAPE SET, FRAME COVER | FOR EPV

68280-01DE0-EPV

1
Out of stock

6

TAPE SET, FRAME COVER | FOR GWH

68280-01DE0-CWH

1
Out of stock

7

BOLT

D1507-0620B

—
Out of stock

7A

WASHER

D8322-9106B

4
Out of stock

8

SPACER

09180-06263

4
Out of stock

9

CUSHION

09320-09016

4
Out of stock

10

COVER, CENTER (BLACK) | NOT FOR US MARKET

47311-01DA0-YAY

1
Out of stock

10

COVER,FRAME CEN | FOR CWH This part replaces 47311-01DA0-YBD.

47311-01DA0-NE2

1
Out of stock

10

COVER,FRAME CEN | FOR EPV This part replaces 47311-01DA0-YD8.

47311-01DA0-NE2

1
Out of stock

11

EMBLEM | NOT FOR US MARKET

68165-01DB0-CAD

1
Out of stock

11

EMBLEM | NOT FOR US MARKET

68165-01DB0-EBH

1
Out of stock

11

EMBLEM | FOR CWH

68165-01DB0-CWH

1
Out of stock

11

EMBLEM | FOR EPV

68165-01DB0-EPV

1
Out of stock

12

COVER, LOWER This part replaces 47321-01DA0-291.

47321-01DA0-NE2

1
Out of stock

13

SCREW

03541-0410B

8
Out of stock

14

CUSHION

09320-08018

4
Out of stock
