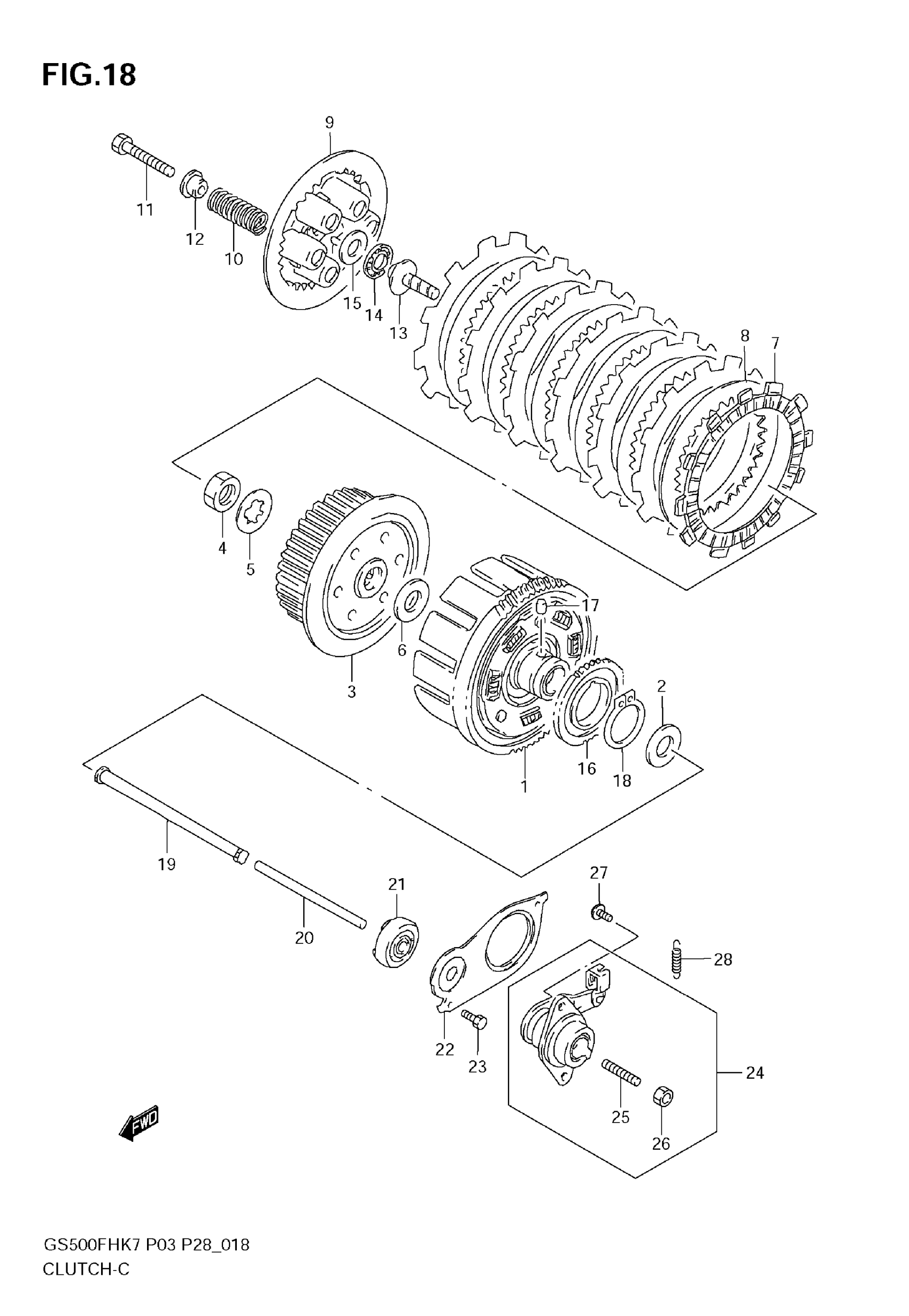

Suzuki GS500F (2009) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:76)

21200-44102

Unavailable

2

WASHER (25X38X1.0)

09181-25223

$2.90

3

HUB,CLUTCH SLEEVE

21411-44101

$68.94

4

NUT

09140-20001

$3.04

5

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.01

6

WASHER (20X44X3)

09160-20015

$6.38

7

PLATE, DRIVE

21441-37400

$16.59

8

PLATE,CLUTCH DRIVEN (T:1.6)

21451-28C31

$10.80

9

DISK, PRESSURE

21462-14301

$66.97

10

SPRING

09440-20019

$8.90

11

BOLT

09100-06145

$2.67

12

SPACER

21414-01D00

$7.77

13

PIECE, PUSH

23121-44100

$29.07

14

BEARING (15X28X2)

09263-15003

$7.49

15

WASHER (15.5X28X1)

09160-15045

$3.52

16

GEAR, OIL PUMP DRIVE (NT:39)

16321-01D10

Unavailable

17

PIN

09261-06002

$1.61

18

CLIP

08331-31383

$3.72

19

ROD,PUSH,R

23110-44111

$14.84

20

ROD, PUSH LH

23111-24A01

$12.18

21

OIL SEAL (6X34X10)

09285-06011

$7.44

22

HOLDER, OIL SEAL

23117-44102

$8.15

23

BOLT

01500-0612B

$2.68

24

SCREW ASSY, RELEASE | Includes Item(s) 25 - 26

23200-01D00

$106.10

25

SCREW

09134-06010

$2.81

26

.NUT

08310-00067

$1.83

27

SCREW

03141-0616B

Unavailable

28

SPRING

09443-08001

$2.80
