1996 Suzuki GS500ET Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1996 Suzuki GS500ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

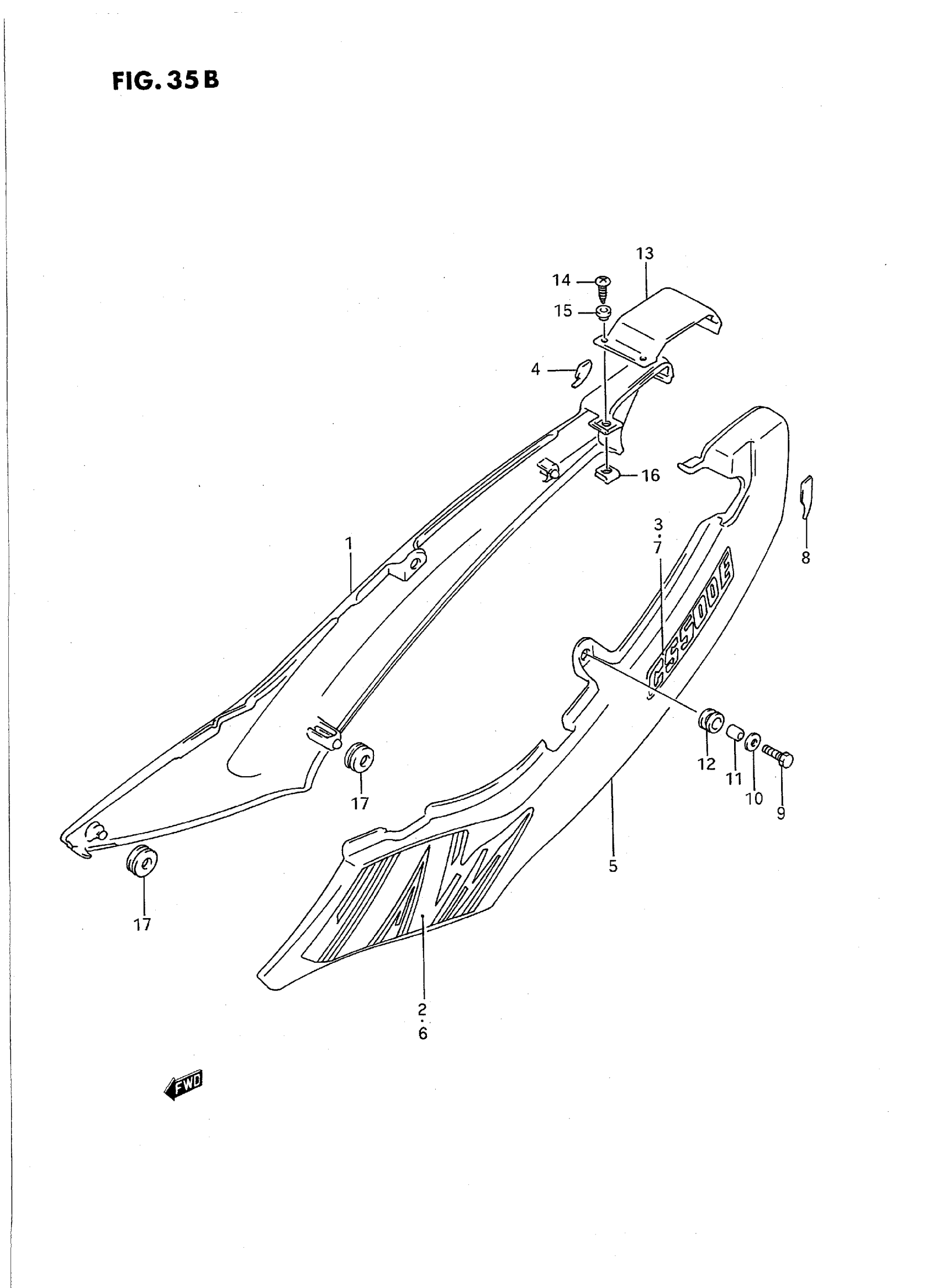

1996 Suzuki GS500ET Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME,R This part replaces 47110-01DA0-28V.

47111-01D00-28V

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 47110-01DA0-33J.

47111-01D00

1
Out of stock

1

COVER, FRAME RH (PURPLE) | Includes Item(s) 2 - 3

47110-01DA0-1HU

1
Out of stock

2

TAPE, RH | FOR 28V

68135-01D00-A4K

1
Out of stock

2

TAPE, RH | FOR 33J

68135-01D00-A4L

1
Out of stock

2

TAPE, RH | FOR 1HU

68135-01D00-A4M

1
Out of stock

3

EMBLEM | FOR 28V

68131-01D10-A4N

1
Out of stock

3

EMBLEM | FOR 33J

68131-01D10-3DC

1
Out of stock

3

EMBLEM | FOR 1HU

68131-01D10-A4P

1
Out of stock

4

PROTECTOR, RH

47119-01D00

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 47210-01DA0-28V.

47211-01D00-28V

1
Out of stock

5

COVER, FRAME LH (BLACK)

47210-01DA0-33J

1
Out of stock

5

COVER, FRAME LH (PURPLE) | Includes Item(s) 6 - 7

47210-01DA0-1HU

1
Out of stock

6

TAPE, LH | FOR 28V

68145-01D00-A4K

1
Out of stock

6

TAPE, LH | FOR 33J

68145-01D00-A4L

1
Out of stock

6

TAPE, LH | FOR 1HU

68145-01D00-A4M

1
Out of stock

7

EMBLEM | FOR 28V

68131-01D10-A4N

1
Out of stock

7

EMBLEM | FOR 33J

68131-01D10-3DC

1
Out of stock

7

EMBLEM | FOR 1HU

68131-01D10-A4P

1
Out of stock

8

PROTECTOR, LH

47219-01D00

1
Out of stock

9

BOLT This part replaces 09128-06006.

09128-06057

2
Out of stock

10

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

2
Out of stock

11

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

12

CUSHION

09320-09016

2
Out of stock

13

COVER COMP,FRAM This part replaces 47215-01D00-28V.

47215-01D00

1
Out of stock

13

COVER, CENTER (BLACK)

47215-01D00-33J

1
Out of stock

13

COVER, CENTER (PURPLE)

47215-01D00-1HU

1
Out of stock

14

SCREW This part replaces 03242-05124.

03241-0512A

2
Out of stock

15

WASHER

09161-05017

2
Out of stock

16

NUT

09148-05013

2
Out of stock

17

CUSHION

09320-08018

6
Out of stock

18

REFER TO FIG.35C(F-16) FOR

SPECIAL NOTE

—
Out of stock
