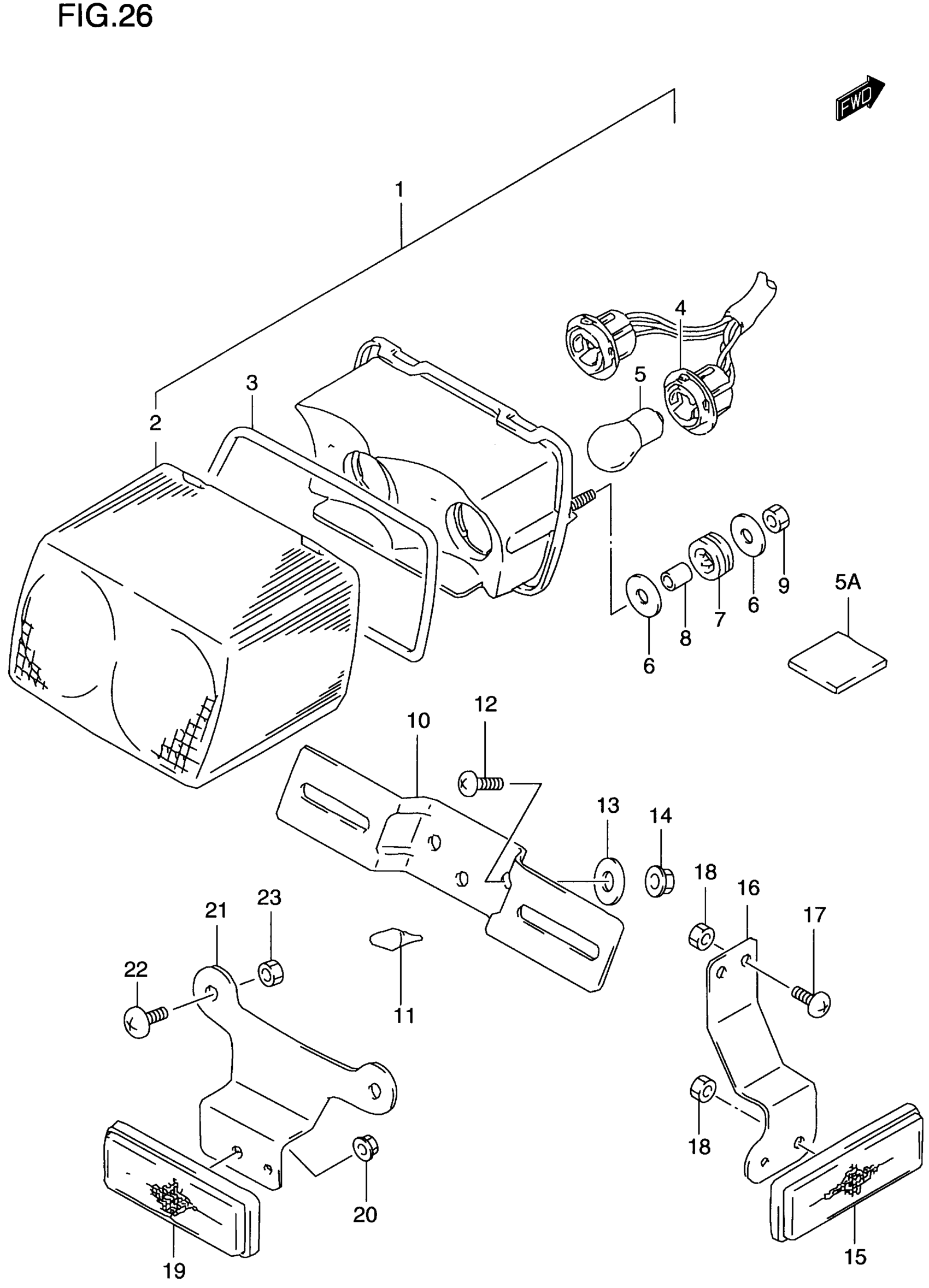

Suzuki GS500E (2000) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 5

35710-01D11

Unavailable

2

LENS

35712-01D10

Unavailable

3

GASKET, LENS

35713-01D00

Unavailable

4

SOCKET

35718-12D00

Unavailable

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

5A

CUSHION

35733-10D00

Unavailable

6

WASHER (6.5X20X1.2)

09160-06077

$1.89

7

CUSHION

09320-09009

$4.19

8

SPACER (6.5X9X8.5)

09180-06262

$2.64

9

NUT This part replaces 08310-00063.

08310-0006A

$1.83

10

BRACKET, LICENSE PLATE

35927-01D10

Unavailable

11

CUSHION This part replaces 09321-06028.

09321-06038

$2.05

12

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

13

WASHER (6.5X20X1.2)

09160-06077

$1.89

14

NUT This part replaces 08310-00063.

08310-0006A

$1.83

15

REFLEX REFLECTOR, REAR SIDE

35970-24D60

$29.32

16

BRACKET, REAR SIDE RR

35977-01D11

Unavailable

17

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

18

NUT This part replaces 08310-00053.

08310-0005A

$1.83

19

REFLEX REFLECTOR ASSY, REAR

35970-24D60

$29.32

20

NUT This part replaces 08310-00053.

08310-0005A

$1.83

21

BRACKET, REAR REFLEX REFLECTOR

35974-01D00

Unavailable

22

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

23

NUT This part replaces 08310-00063.

08310-0006A

$1.83
