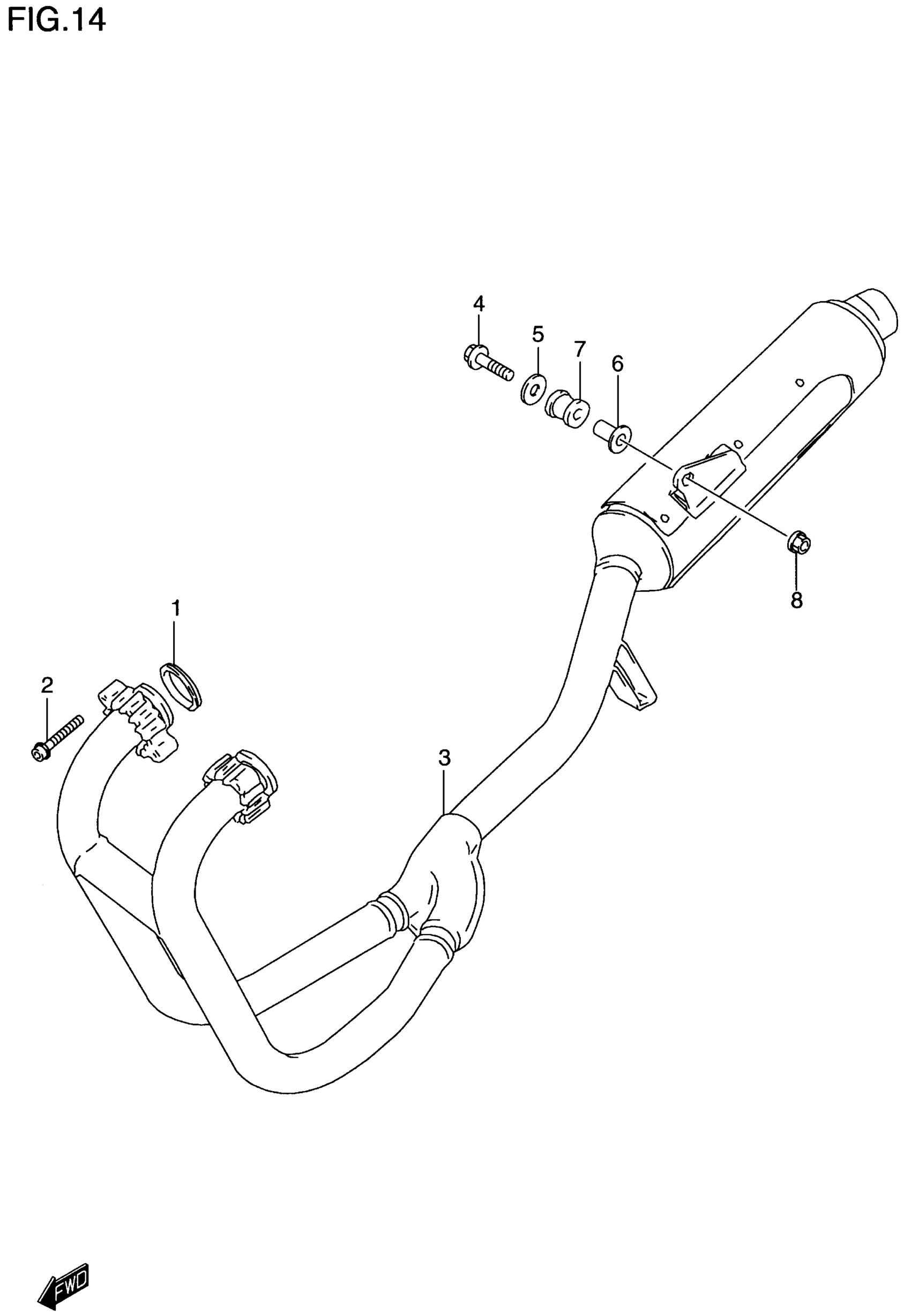

Suzuki GS500E (2000) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-01D00

$6.51

2

BOLT This part replaces 07120-08403.

07120-0840A

$3.08

3

MUFFLER ASSY | E3,E33

14301-01DC0-H01

Unavailable

3

MUFFLER ASSY | MODEL V E28

14301-01DA0

Unavailable

3

MUFFLER ASSY | MODEL W/X/Y E28

14301-01DC0-H01

Unavailable

4

BOLT (8X40)

09103-08256

$5.65

5

WASHER, EXHAUST SUPPORT | MODEL V This part replaces 09160-08002.

09160-08135

$2.10

5

WASHER (8.5X28X1.6) | MODEL W/X/Y

09160-08136

$3.05

6

SPACER (8.6X12X20.1)

09180-08152

$5.26

7

CUSHION

09320-12048

$4.62

8

NUT This part replaces 08316-10083.

08316-1008B

$2.65
