Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 11

35100-10D70-999

Unavailable

2

RIM

35111-01D20

$81.93

3

LAMP UNIT

35121-10D30

Unavailable

4

RING

35127-10D20

$29.07

5

COVER, SOCKET

35173-20A01

$20.33

6

SCREW

35181-15611

$3.80

7

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.89

8

NUT This part replaces 08310-00043.

08310-0004A

$2.50

9

SCREW, ADJUSTING

35151-45900

$3.59

10

NUT

35152-15611

$3.67

11

SPRING

35154-31900

$6.00

12

BULB (12V60/55W)

09471-12060

$23.37

13

SCREW | MODEL V/W

02122-05127

$1.68

13

SCREW | MODEL X/Y

09126-05003

$2.14

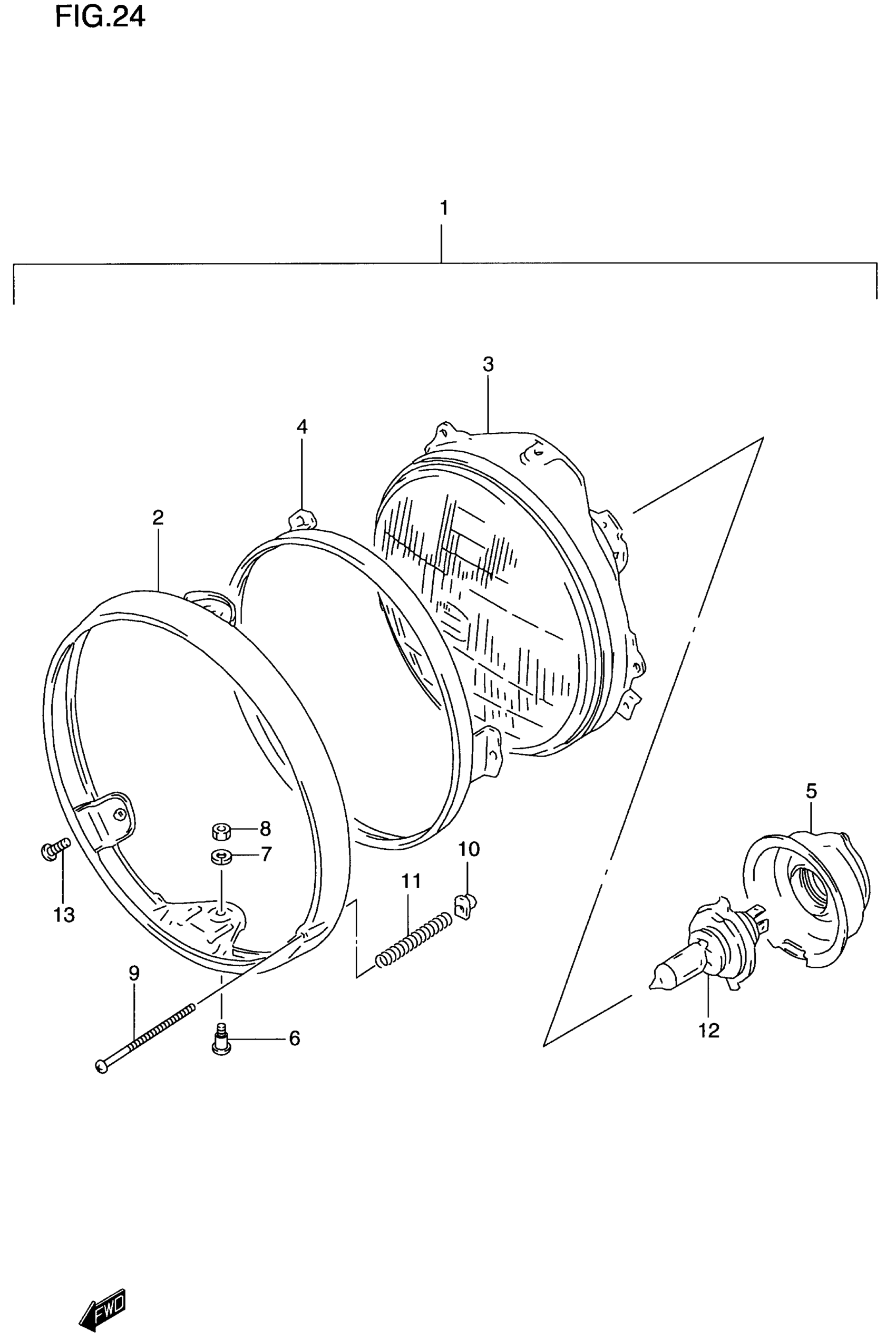

Suzuki GS500E (2000) HEADLAMP Diagram
