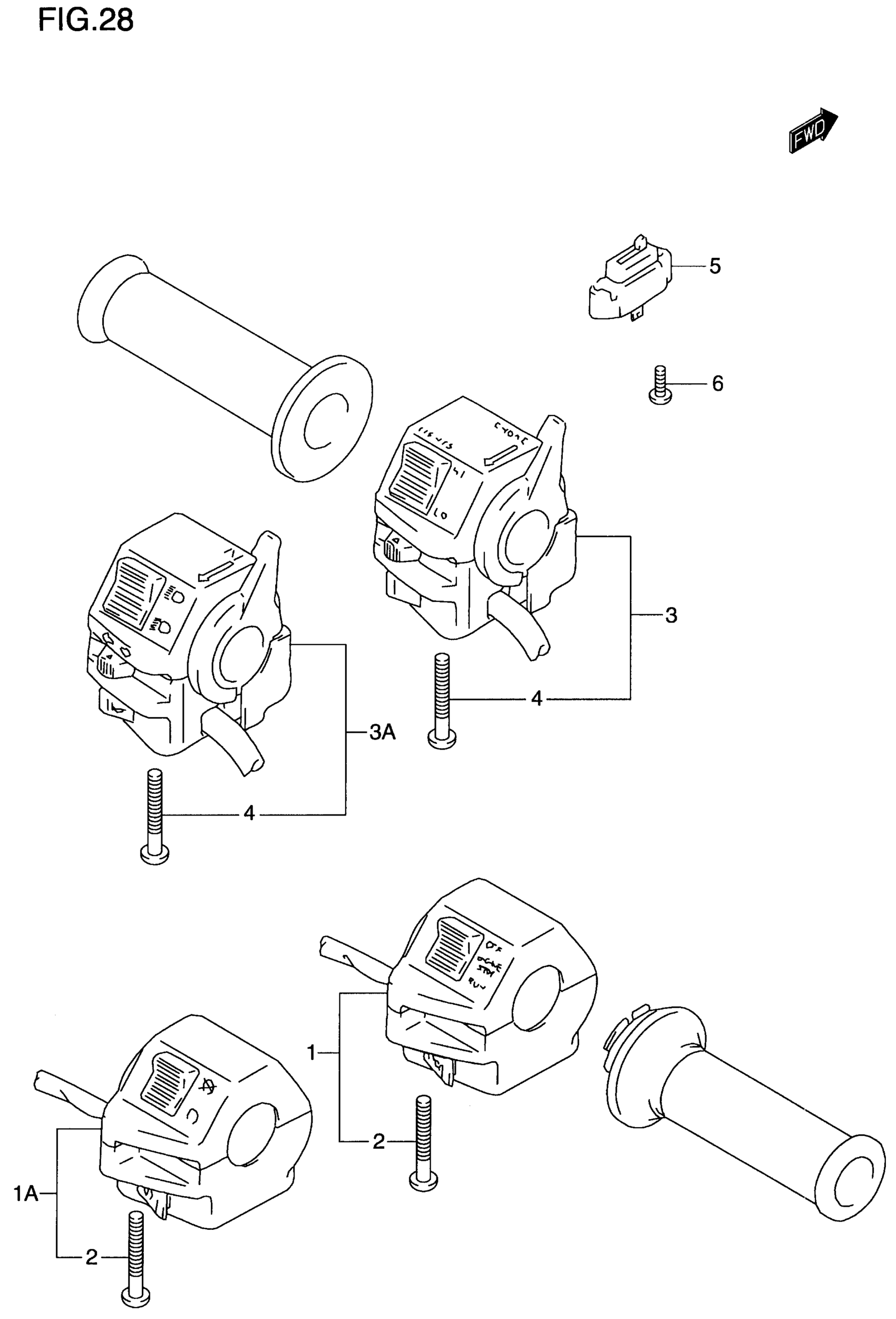

Suzuki GS500E (2000) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | MODEL V This part replaces 37200-01D12.

37200-01D30

Unavailable

1A

SWITCH ASSY, HANDLE RH | MODEL W/X/Y; Includes Item(s) 2

37200-01D30

Unavailable

2

.SCREW This part replaces 02112-05455.

02112-0545B

$2.32

3

SWITCH ASSY, HANDLE LH | MODEL V This part replaces 37400-01D12.

37400-01D30

$198.65

3A

SWITCH ASSY, HANDLE LH | MODEL W/X/Y; Includes Item(s) 4

37400-01D30

$198.65

4

.SCREW This part replaces 02112-05455.

02112-0545B

$2.32

5

SWITCH ASSY, CLUTCH

37560-38A00

$17.70

6

SCREW, CLUTCH SWITCH This part replaces 37564-26E00.

09132-03017

$2.27
